Chapter 3 Main Panel Window
DME Designer Owner’s Manual 75
■ [OK] Button
Applies any setting changes and closes the window.
■ [Cancel] Button
Closes the window without changing any settings.

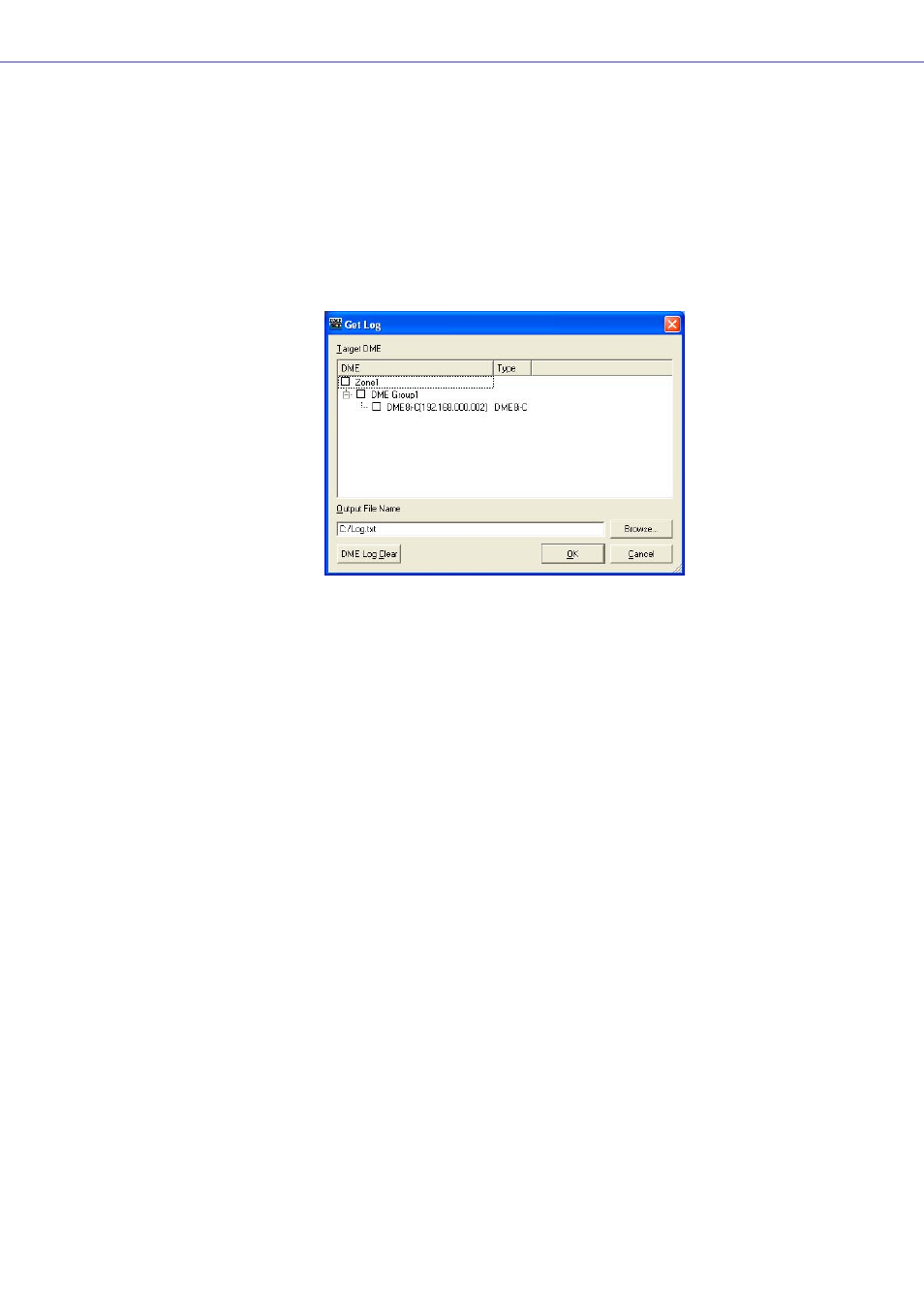

“Get Log” dialog box
Click the [Get Log] button in the “Event Logger” window while offline to open the “Get Log” dialog box.
The event log can be retrieved from the DME unit while offline and saved as a file on the computer.
■ DME List
Displays the IP addresses and types of DME units included in the device group. Click the DME
from which to obtain events by placing a check next to it.
■ [Output File Name]
Sets the file name and save location for the log file. Clicking the [Browse] button opens the file
select dialog box, where you can select a file.
■ [DME Log Clear]
Clears (erases) logs in the DME units checked. When you click this button, a confirmation dialog is
displayed.
■ [OK] Button
Applies any setting changes and closes the window.
■ [Cancel] Button
Closes the window without changing any settings.
