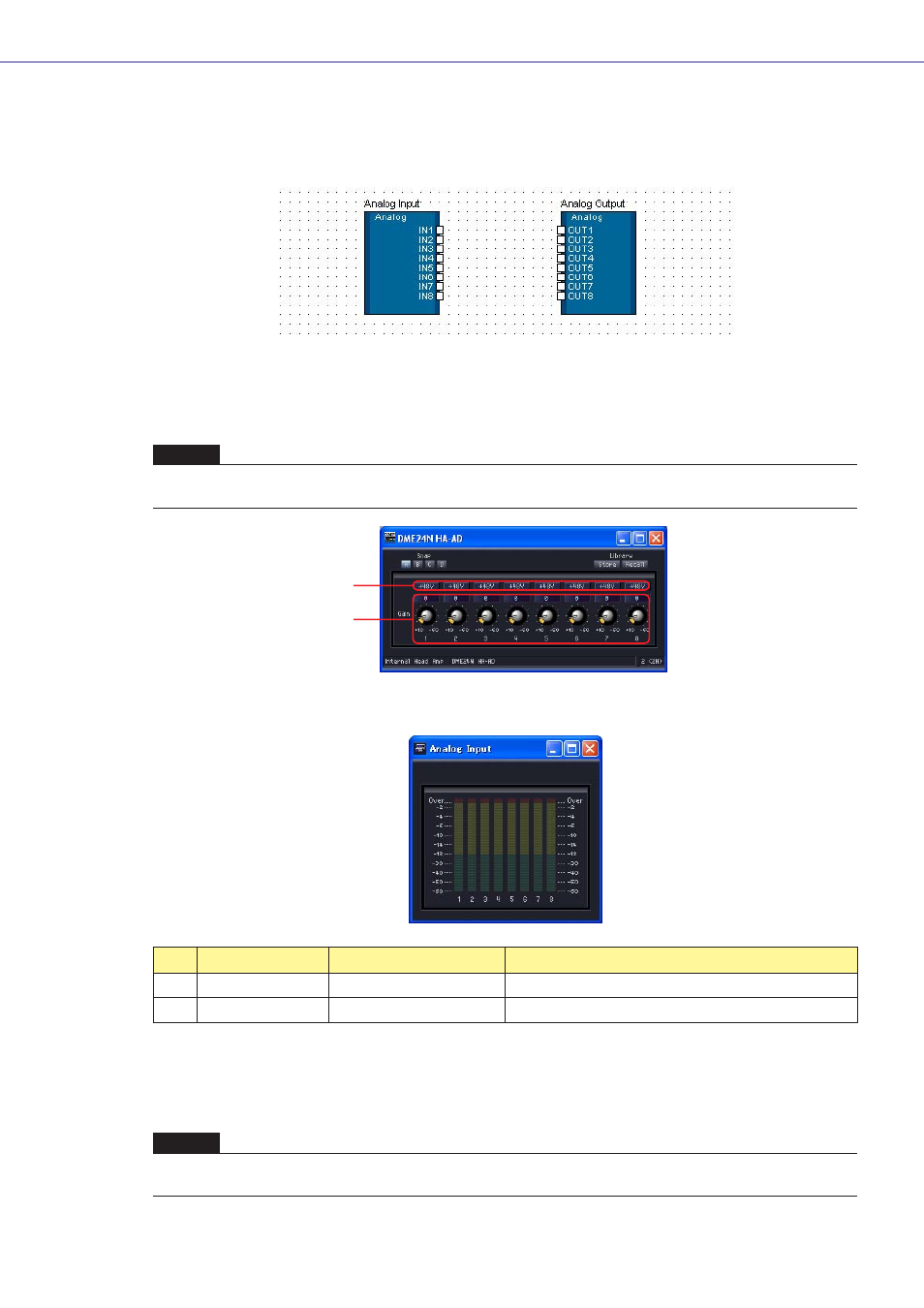

Analog Input and Output
In the DME24N/DME Satellite configuration window, there are [Analog Input] and [Analog Output]
blocks.
■ Analog Input
Right-click the component and select [Open HA Editor] from the contextual menu to open the
editor.
Either double-click the component, or select [Open Input Component Editor] from the contextual menu
that appears when the component is right-clicked to open the component editor.
■ Analog Output
Double-click [Analog Output] to display the component editor for it. The displayed parameters are
the same as for Slot Out component editor.
NOTE
The DME24N, DME8i-C, DME4io-C, DME8i-ES and DME4io-ES have analog inputs. The DME24N, DME8i-C and DME8i-ES
have eight analog inputs, while the DME4io-C and DME4io-ES have four.
Parameter Setting Range Function
1 +48 ON/OFF Turns ON phantom power (+48V).
2 Gain +10 to -60 dB Sets the head amp gain.
NOTE
The DME24N, DME8o-C, DME4io-C, DME8o-ES and DME4io-ES have analog outputs. The DME24N, DME8i-C and DME8o-
ES have eight analog outputs, while the DME4io-C and DME4io-ES have four.
1
2
