Chapter 4 Designer
DME Designer Owner’s Manual 284

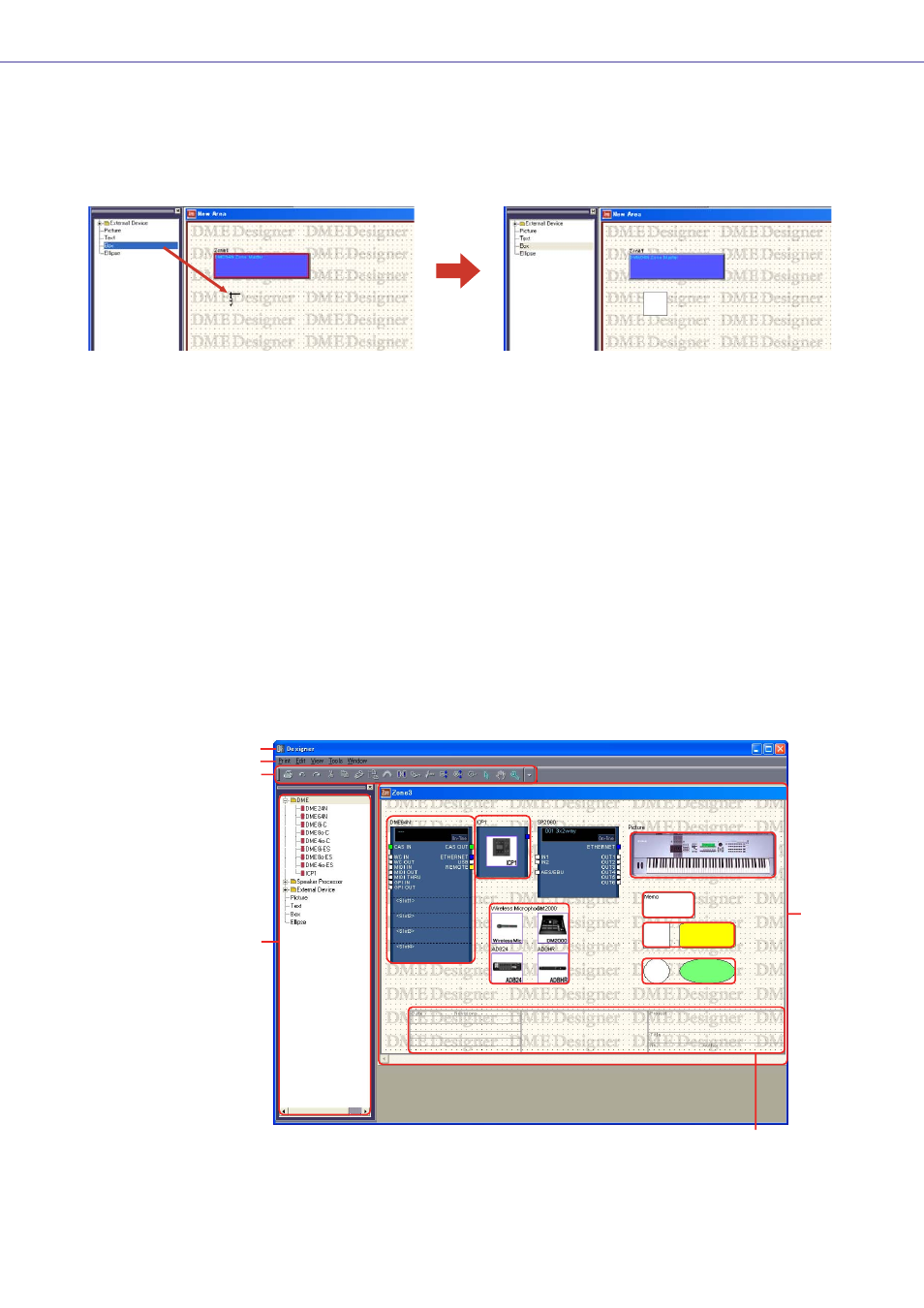

Arranging Objects
Objects other than zones and legend can be placed in the window by dragging them from the Toolkit
window. You can also place objects by double-clicking them in the Toolkit window. You can also
display the [Area Parts List] from the [Tools] menu or from the context menu that appears when you
right-click on the sheet.
Zone Window
In the Zone window, the zone configuration is designed by arranging zone devices on a design sheet,
A zone configuration can be created that is the same as the actual hardware arrangement.
To display the Zone window, double-click in the Area window. When you click a configuration in the
Navigator window, it becomes active.
The following objects can be arranged in the Zone window:
• DME
• ICP
• SP2060
• External Device
• Picture
• Text
• Box
• Ellipse (Circle)
• Legend
Title Bar
Menu Bar
Tool Bar
Toolkit Window
Sheet
DME ICP
External Device
Legend
Picture (Image)
Box (Rectangle)
Ellipse (Circle)
Text
(Text Object)
