Ad8hr – Yamaha DME User Manual
Page 479
Chapter 6 Component Guide
DME Designer Owner’s Manual
479
■ AD8HR
Controls the Yamaha A/D converter AD8HR. The AD8HR is an eight channel analog to digital
converter.
Double-click this component to display the component editor for it.
NOTE
If a DME is not selected in the properties dialog box, the component editor will not be displayed even if you double-click
(
).
Parameter
Setting Range
Function
1
+48
ON/OFF
Turns ON phantom power (+48V).
2
HPF
ON/OFF
Turns output ON.
3
Frequency
20 to 600Hz
Sets the cutoff frequency.
4
Gain
+10 to -62 dBu
Sets the head amp gain.
5
Word Clock
96 kHz
88.2 kHz
48 kHz
44.1 kHz
Word Clock In
Digital Out A
Sets the operating frequency for the Word
Clock.
Double Speed
Double Channel
Selects the operation for 88.2/96 kHz.
1
2
4
3
5

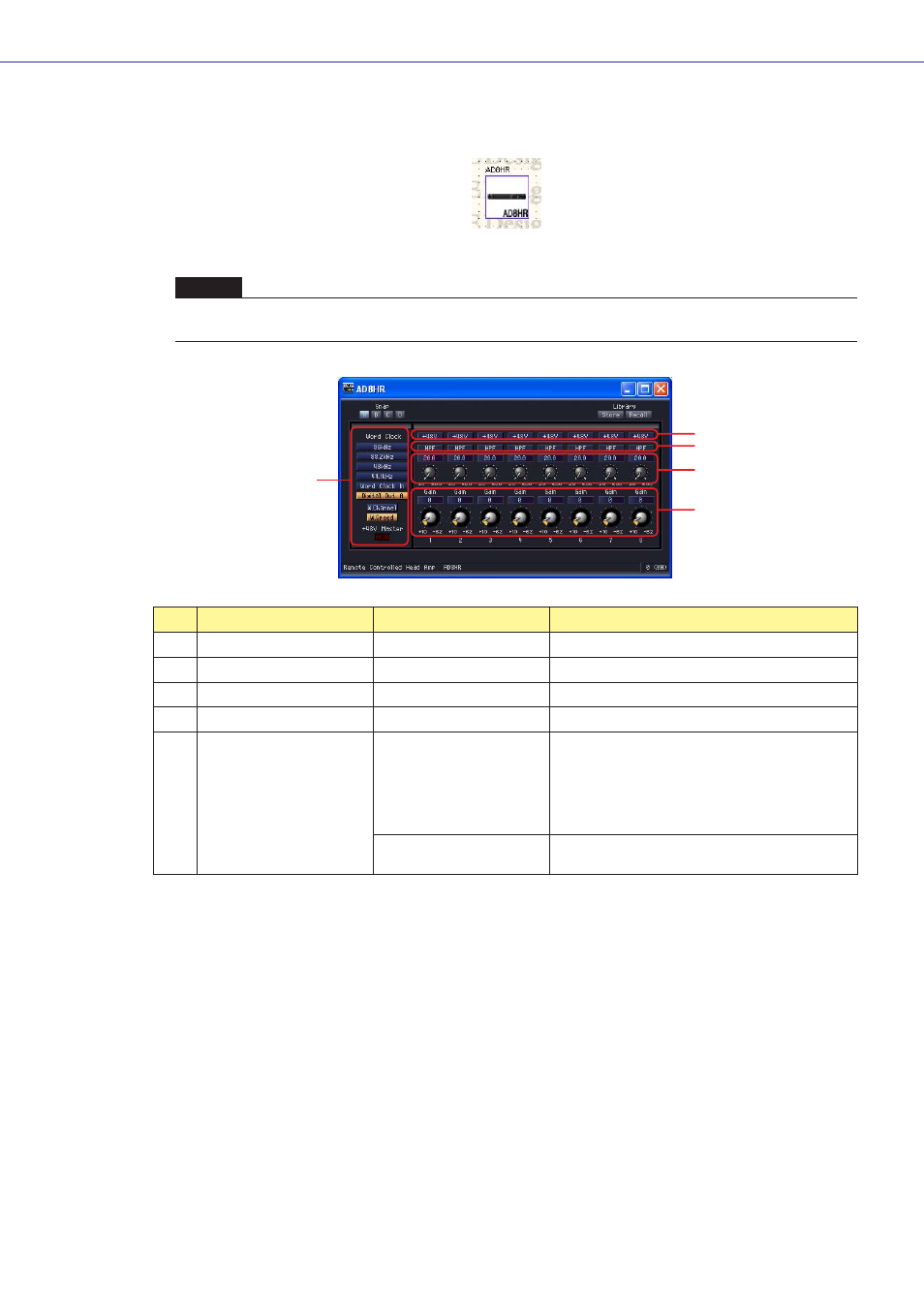

AD8HR component editor
