■ Slot Out
The Slot Out component has only an input. There are three types of Slot In components: four-
channel, eight-channel, and 16 channel types.
Either double-click the component, or select [Open Slot Out Component Editor] from the contextual
menu that appears when the component is right-clicked to open the component editor.
Parameter Setting Range Function
1 Phase ON/OFF Reverses the phase of the output signal for each
channel.
2
On ON/OFF Turns ON each channel's output.
3 Delay 0 to 24 Samples Sets the delay time.
4 Level - ∞ to ±0 dB Sets the output level.
5 Dither Off
16
20
24 Sets the quantization bit rate for conversion.
1
2
3
4
5

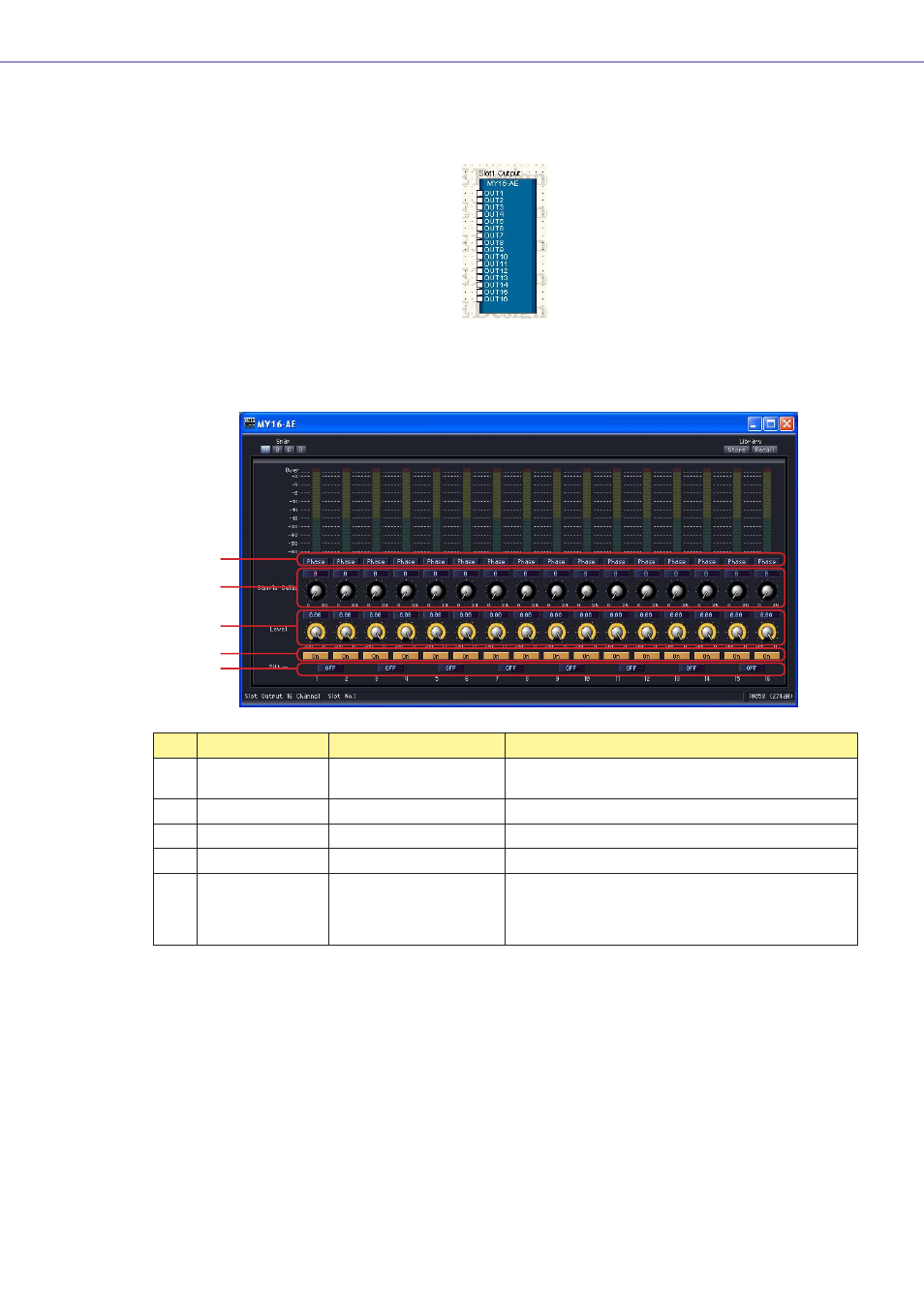

Slot Out component editor
