Chapter 4 Designer
DME Designer Owner’s Manual 194

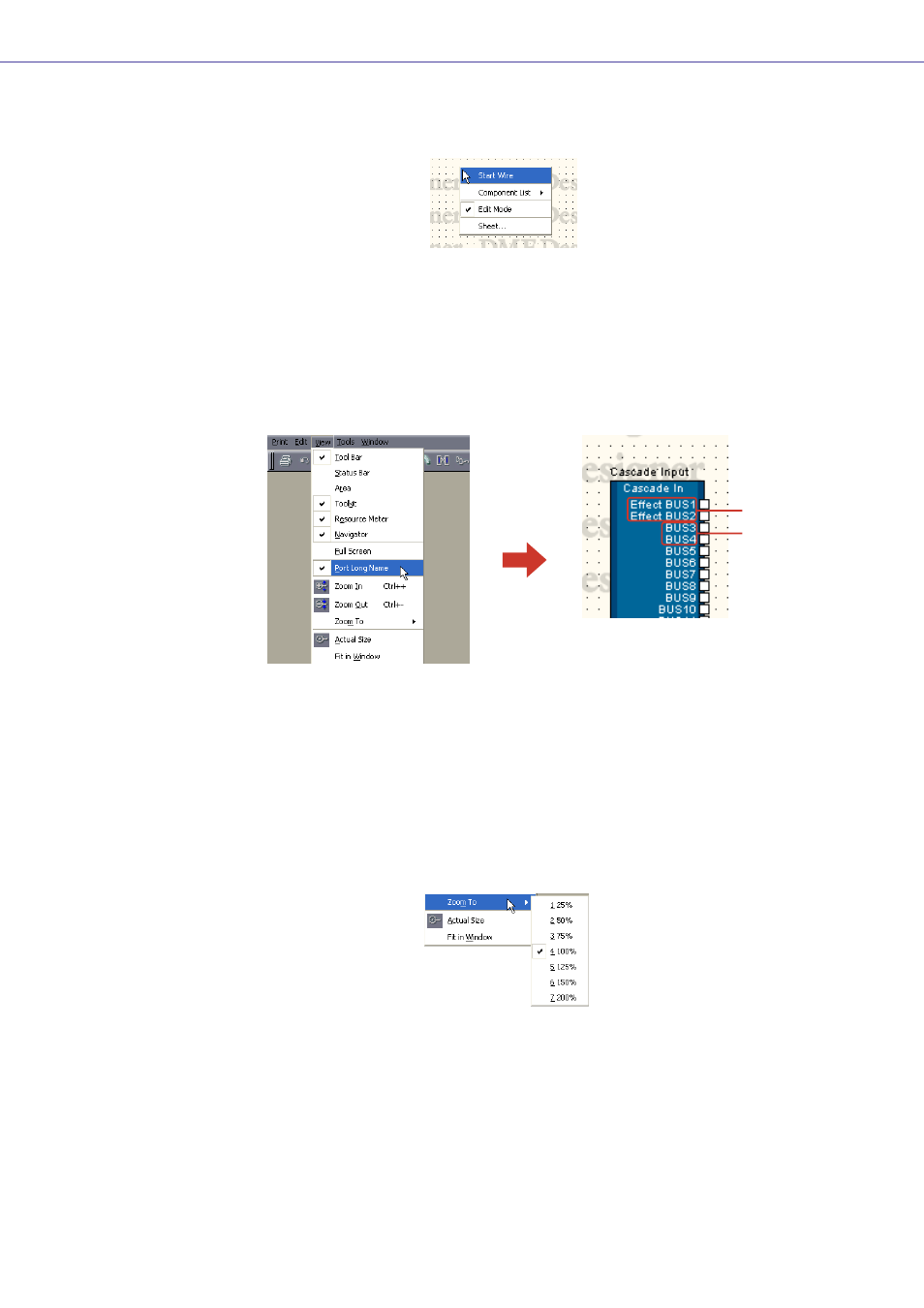

■ [Full Screen]
Displays in full-screen mode. Displays the active design window (Area, Zone, Configuration, or
User Module window) exclusively, with it covering the entire screen.
A context menu appears wherever you right-click on the screen, containing the commands that are
needed at that location.
To return from the full-screen mode to the original display status, press the key.
■ [Port Long Name]
Switches the port name display of the slot components. When you select this command, a
checkmark appears next to it and long names are displayed. If you select this command when a
checkmark is next to it, the checkmark disappears and short names are displayed.
■ [Zoom In]
Gives a closer view of an area displayed on the screen.
■ [Zoom Out]
Widens the area displayed on the screen.
■ [Zoom To]
Selects the display magnification from a submenu.
■ [Actual Size]
Returns the display to normal dimensions.
■ [Fit in Window]
Increases or decreases the display magnification so that the sheet exactly fits the current window.
The entire sheet will be visible.
Long name
Short name
