Mixer I/O Channel
Here you can display and set the channel used for audio input/output to a mixer. If the checkbox is
turned ON, the channel for the Cascade connection with the mixer is set. If turned OFF, the channel
for connecting with the DME is set.
[Check All] Button
Checks all checkboxes.
[Clear All] Button
Clears all checkboxes.
[OK] Button
Updates the settings and closes the dialog box.
[Cancel] Button
Closes the dialog box without changing the settings.

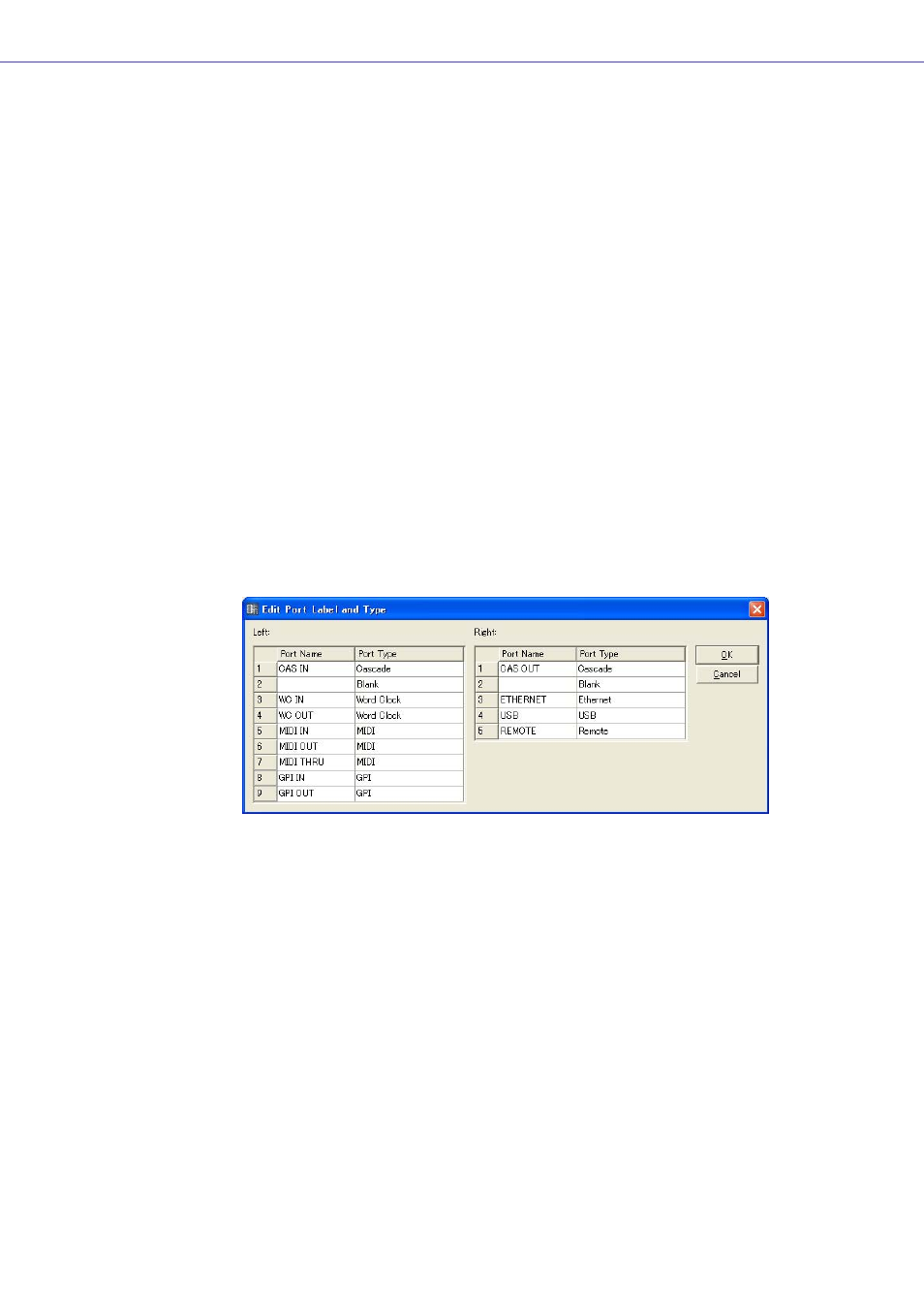

■ Edit Port Label and Type Dialog Box
The Edit Port Label and Type dialog box will appear when the [Edit Port Label and Type] button is
clicked. Specifies the port labels and types to be displayed to the left and right of DME and
SP2060 objects.
To set labels enter the [Port Name] for [Left] and [Right]. Each name can be up to 100 characters in
length.
To set the port type use [Port Type] to select the [Left] and [Right] types.
