Chapter 4 Designer
DME Designer Owner’s Manual 292
Monitoring Point List

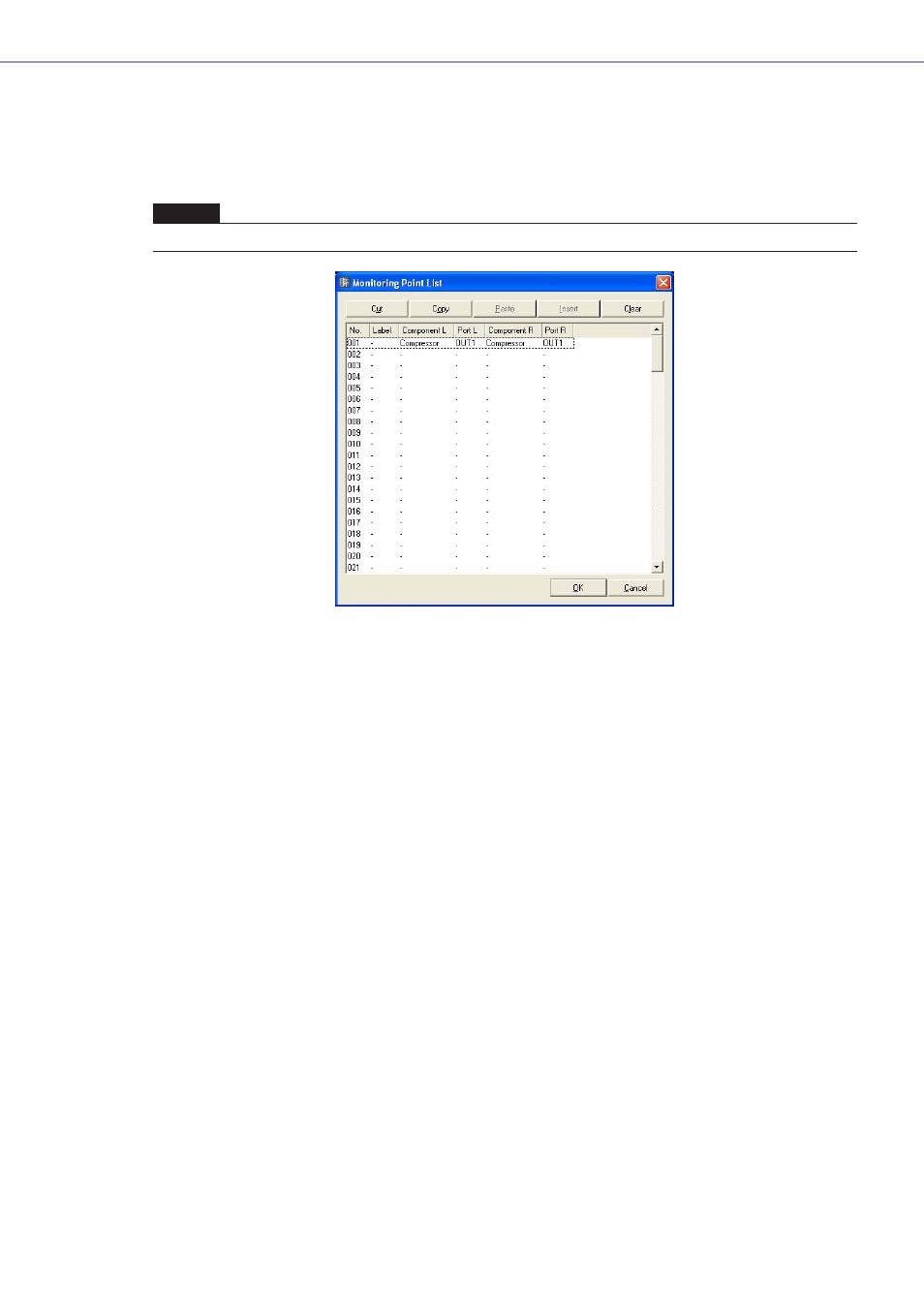

When you click [Monitoring Point List] in the [Tools] menu, the “Monitoring Point List” dialog box is
displayed. This allows registering and editing “monitoring points” that can be monitored via the
DME64N/DME24N PHONES jack. Monitoring points can be specified not only at the slot and analog
inputs and outputs, but also at points between the components.
■ [Cut] Button
Cuts the selected monitoring point information. When monitoring point information is cut,
information below that point moves up.
■ [Copy] Button
Copies the selected monitoring point information.
■ [Paste] Button
Pastes the copied monitoring point information at the selected line.
■ [Insert] Button
The copied monitoring point information is inserted at the selected point.
■ [Clear] Button
Deletes the selected monitoring point information.
NOTE
Monitoring points can be edited only by users for whom the [Edit] security checkbox has been turned ON.
