Yamaha DME - Manual (Page 302)

Chapter 4 Designer
DME Designer Owner’s Manual 302

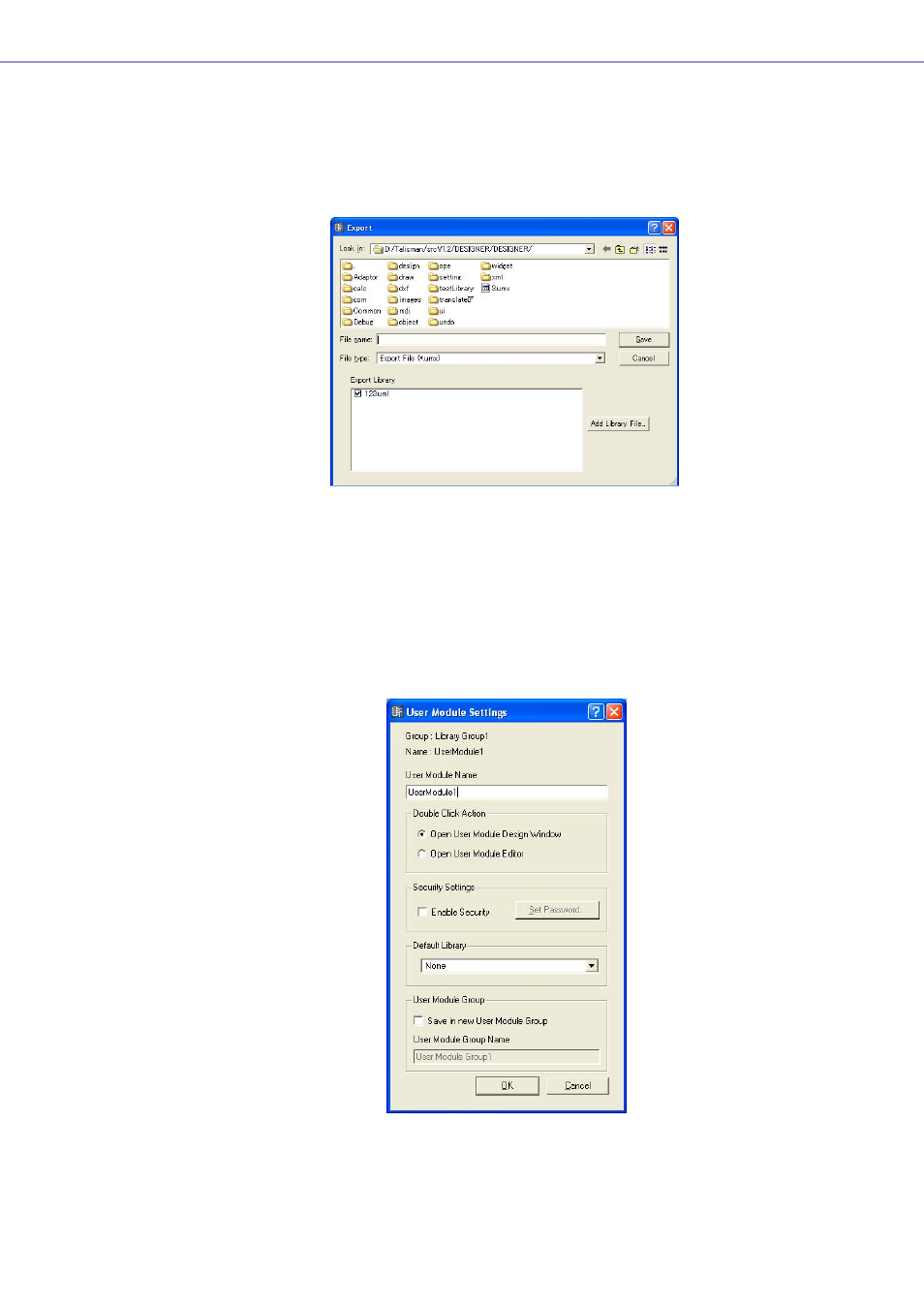

■ [Export] Button
Saves the user module data (component wiring/connection, library, and user module editor data) to
a user module export file.
Click to display the Export dialog, All features of this dialog window are the same as the standard
Windows file save dialog, except for the [Export Library] option.
[Export Library] can be sued to select the library to be saved.
■ [Close] Button
Closes the dialog box.
“User Module Settings” Dialog Box
Click the [Change Settings] button in the “User Module Manager” dialog box to open the “User
Module Settings” dialog box. Here you can edit the user module template name, group name, and
security settings.
