Chapter 4 Designer
DME Designer Owner’s Manual 245
[Wire Color]
Specifies the wire color.
[Properties]
Displays the “Wire Properties” dialog box.
■ Wire Object Context Menu (Node)
[Start Wire]
Begins drawing a wire segment from the location where you right-clicked.
[Delete Wire]
Deletes the entire wire.
[Delete]
Deletes the node. The nodes before and after will become directly connected.
[Properties]
Displays the “Wire Properties” dialog box.
■ Wire Object Context Menu (Termination)
[Continue Wire]
Begins drawing wire from a termination node.
[Start Wire]
Begins drawing a wire from the location where you right-clicked.
[Delete Wire]
Deletes the entire wire.
[Properties]
Displays the “Wire Properties” dialog box.

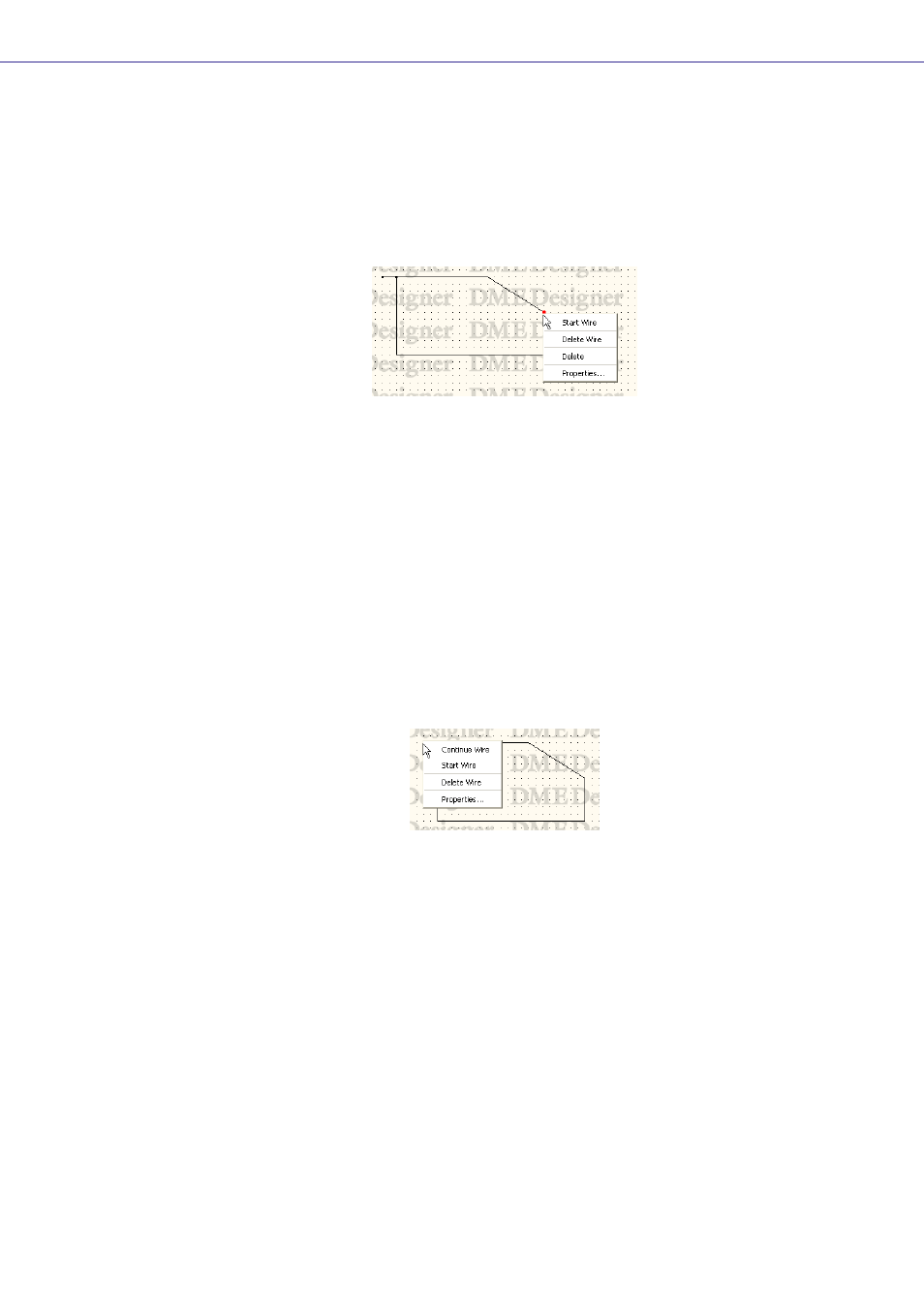

Node Context Menu
Termination Context Menu
