Chapter 6 Component Guide
DME Designer Owner’s Manual 369
Crossover
Separates input signals into multiple frequency channels and outputs them. The following five types of
components are available in the Crossover group: 2 Way, 3 Way, 4 Way, 5 Way, and 6 Way.
Crossover components have a single input and multiple outputs.

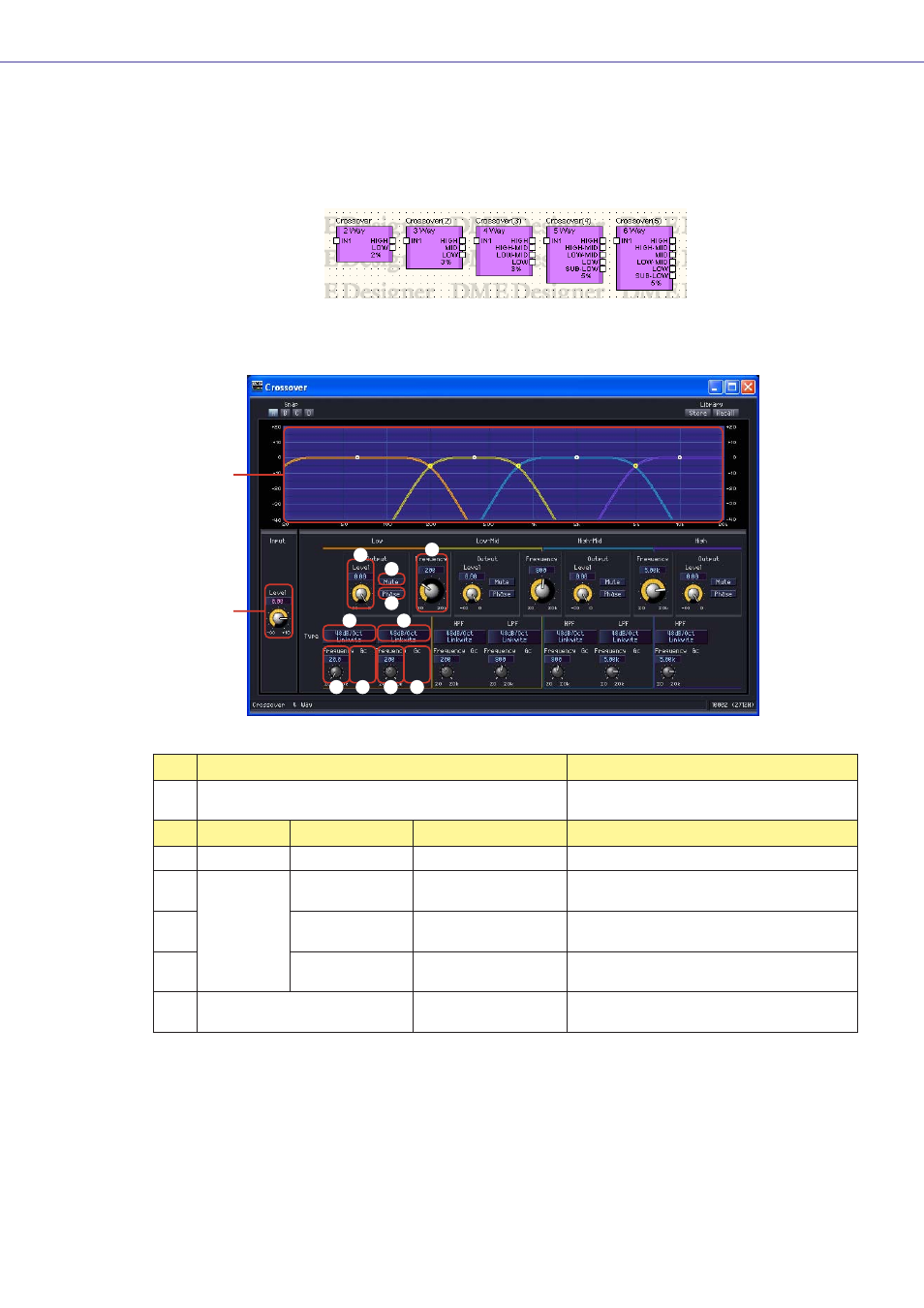

Double-click a component to display the component editor for it.
Name Function
1 Crossover Curve Displays the level of each frequency band,
distinguished by color.
Section Parameter Setting Range Function
2 Input Level - ∞ to +10 dB Sets the input signal level.
3 Output Level - ∞ to ±0 dB Sets the output signal level for each
frequency band.
4
Mute ON/OFF Mutes the output signal level for each
frequency band.
5 Phase ON/OFF Reverses the phase of the output signal for
each frequency band.
6 Frequency 20 Hz to 20 kHz Sets the cross frequency between each
frequency band.
1
2
3
6
4
7
5
8 9
)
! @
Crossover component
