Tool Button (Large)
■ [Show/Hide Designer] Button
Displays or hides the Designer window.
■ [Show/Hide Navigator] Button
Displays or hides the Navigator window.
■ [User Control] Button
Works the same as the [User Control] command on the [View] menu. Clicking this button displays a
menu.
User Control will be display there, the user control window will be displayed.
If you click [New User Control], the “New User Control” dialog box opens.
■ [Synchronization] Button
Opens the “Synchronization” dialog box.
→ See “Synchronization” Dialog Box on
■ [Event Logger] Button
Opens the “Event Logger” window.
→ See “Event Logger” Window on
.
■ [Event Scheduler] Button
Opens the “Event Scheduler” dialog box.
→ See “Event Scheduler” Dialog Box on
.
Current Zone
Displays the name of the active zone. A list where you can select a zone is displayed when you press
the [
▼].

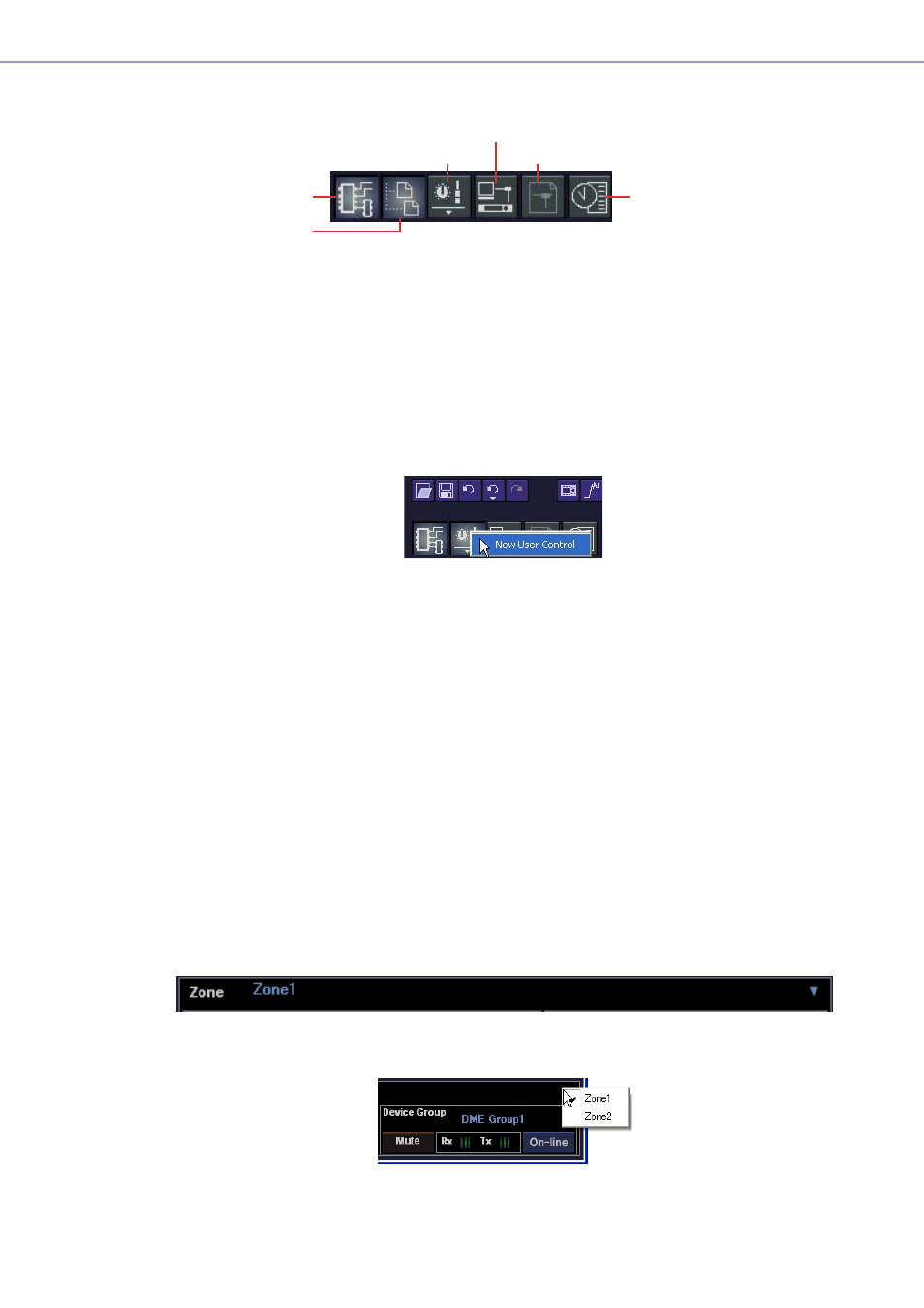

[User Control] Button
[Show/Hide Designer] Button
[Show/Hide Navigator] Button
[Event Logger] Button
[Event Scheduler] Button
[Synchronization] Button
