Chapter 6 Component Guide
DME Designer Owner’s Manual 492
Utility Display Operation
The general procedure for operating the Utility
displays is outlined below.
1. Press the [F4/UTILITY] Key for longer than
2 seconds from the Main display to go to the
Utility display.
2. Press the [F4/UTILITY] Key as many times
as necessary until the desired parameter
page appears.
3. Use the [F1]/[F2/[F3]/[F5] keys to select
the parameter you want to edit.
4. Press the [ENTER] key.
This either confirms a selection or edit, or calls the
appropriate parameter edit page.

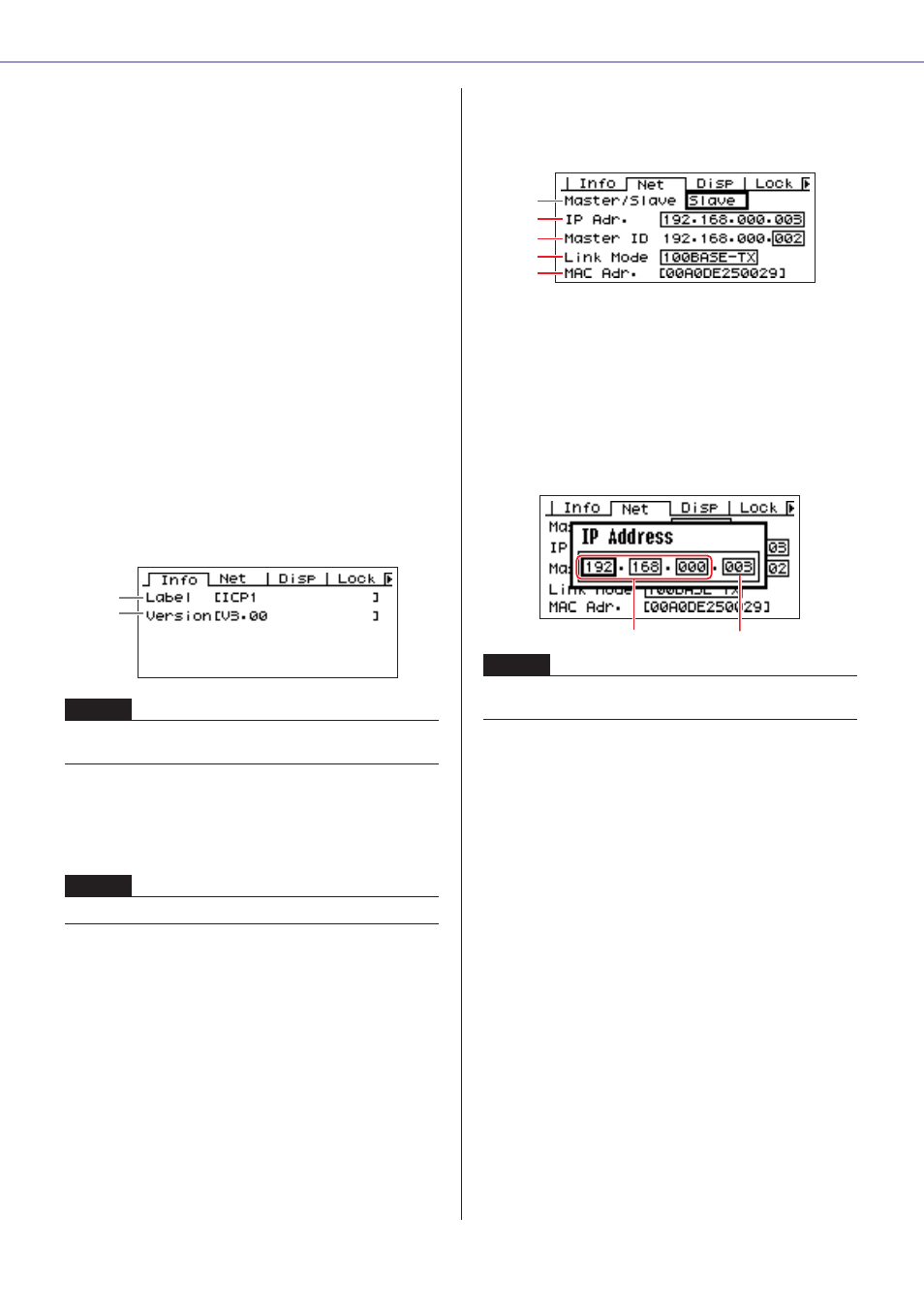

Info Page
1 Label
Shows the user ID. The user ID can be changed via
the DME Designer application running on a computer
connected to the unit.
2 Program Version
This is the current firmware version number.
Network Settings (Net) Page
Shows the Ethernet network address and other
parameters.
1 Master/Slave
Indicates whether or not the device is functioning as
the device group master.
Device Group status of ICP1 is fix to “Slave.”
2 IP Adr.
This is the device’s IP address.
Edit using the “Numeric Parameters” editing
procedure described on
page 487 .
3 Master ID
Displays and sets the device group master host
address.
4 Link Mode
Shows the status of the [NETWORK] connector. The
[NETWORK] connector can be set to operate in
“10Base-T” or “100Base-TX” mode.
10Base-T: The [NETWORK] connector is
compatible with 10Base-T operation.
100Base-TX: The [NETWORK] connector is
compatible with 100Base-TX operation.
Edit using the “List Parameters” editing procedure
described on
page 488 .
5 MAC Adr.
This is the device’s MAC (Media Access Control)
address.
NOTE
The date and time ( 3) and the internal battery status (4) are
not shown on the ICP1 control panel display.
NOTE
The label can not be changed from the ICP1 controls.
1
2
NOTE
The network addresses of devices in the same device group
must be the same.
1
2
3
4
5
Network Address Host Address
