Legend (Descriptive Fields)
Displays a legend for all sheets except the User Module window.

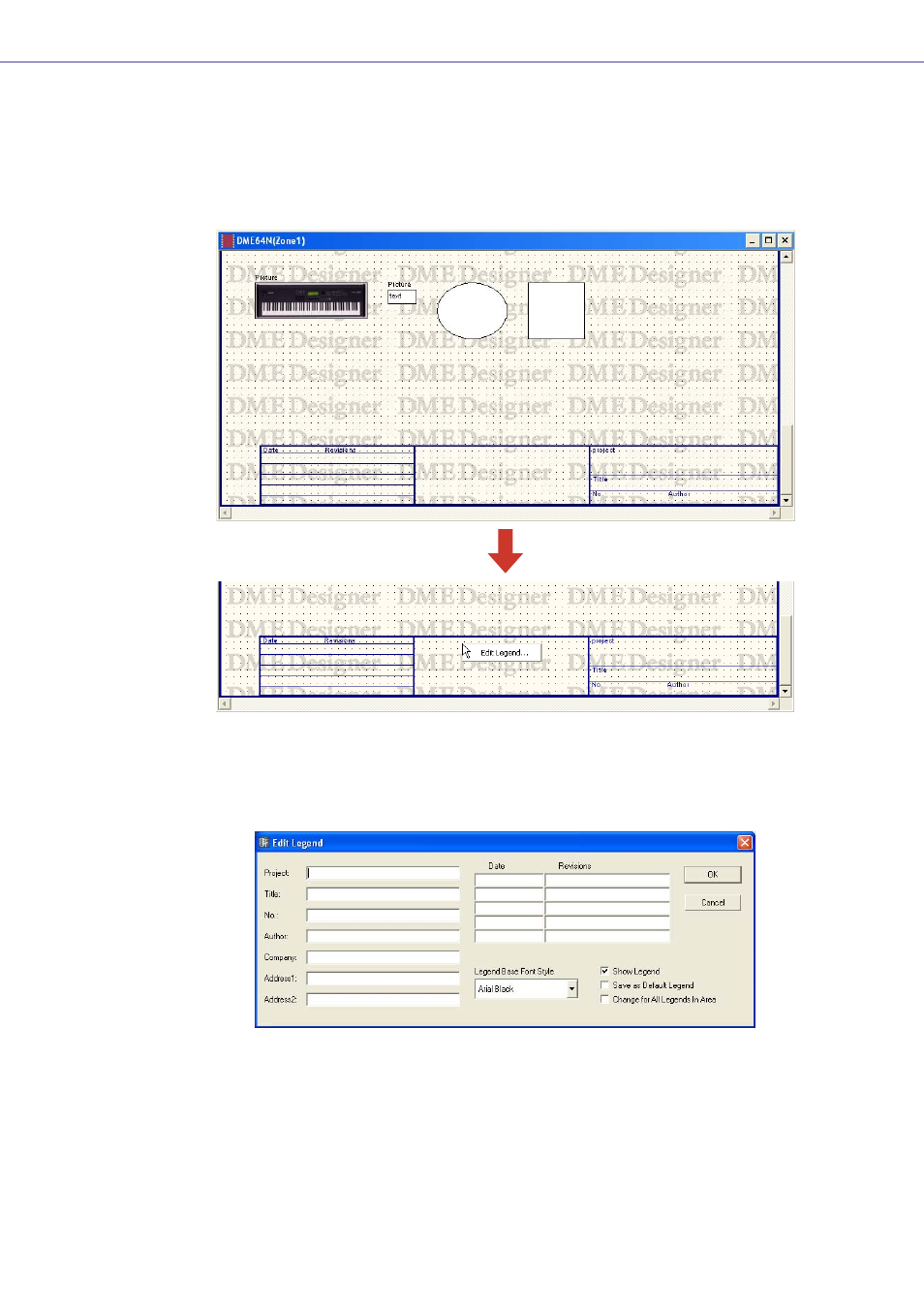

When you click the [Edit Legend] command on the [Edit] menu or double-click on one of the Legend
fields displayed on the sheet, the “Edit Legend” dialog box is displayed. If you right-click on the
Legend, the displayed context menu will have the [Edit Legend] command only. If you click there it will
display the “Edit Legend” dialog box.
The “Edit Legend” dialog box is used to enable/disable Legend display and to set the contents
displayed there. You can display the [Edit Legend] command from the [Edit] menu.
■ “Edit Legend” Dialog Box
[Project] Box, [Title] Box, [No.] Box, [Author] Box, [Company] Box, [Address1] Box, and
[Address2] Box
Used to enter the Project, Title, Number, Author, Company, Address1, and Address2. You can enter
up to 100 English characters for each field.
