■ Surround 6.1
Surround 6.1 has surround pan with three channels in front, three in the rear, and one sub woofer
channel. There is one input and seven outputs.
Double-click a component to display the component editor for it.
Section Name/Parameter Setting Range Function
1 2D Surround
Pan Graph 2D Surround
Pan Graph -- Sets the sound image orientation. You can
move the sound image by clicking and
dragging.
2 Speaker Button -- Clicking here moves the sound image to the
button location.
3
Position Left-Right Position L63 - C - R63 Displays and edits the LR surround location.
4 Front-Back Position F63 - C - R63 Displays and edits the front-back surround
location.
5 Divergence Front 0 to 100% Sets the ratio for sending the front-center
signal to front L and front R.
6 Rear 0 to 100% Sets the ratio for sending the rear-center
signal to rear L and rear R.
7
LFE Level -
∞ to +10 dB
Sets output level to the sub woofer.
8 Pan Nominal Position Center
LR Selects the nominal position from a menu.
1
3
4
3 4
5
6
7
2
2
2

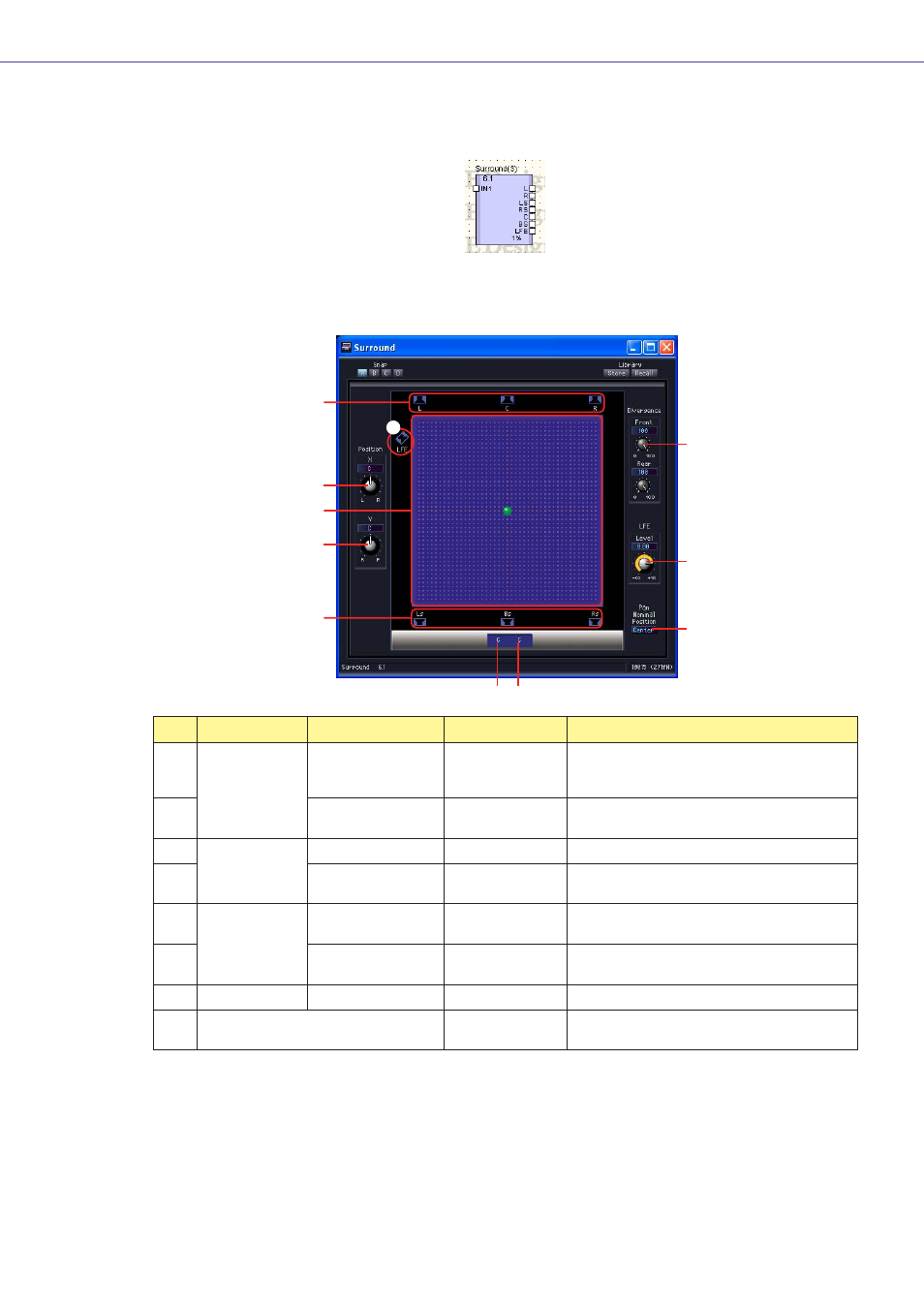

Surround 6.1 component editor
