Object selection, Scene info and [on-line] button – Yamaha DME User Manual
Page 204
Chapter 4 Designer
DME Designer Owner’s Manual
204
CobraNet Card
If the I/O card is a CobraNet card, a CobraNet icon will be displayed in the DME object.
■ Object Selection
To open a configuration window for a DME object arranged in the Zone window, first select it by
clicking on it, then double-click on it. If you right-click on the object, a context menu will be
displayed.
■ Scene Info and [On-line] Button
DME objects include an object that provides scene info and an [On-line] button.
The scene info area displays the current scene number and name. Click the scene info area to
open the “Scene Manager” window.
The [On-Line] button has the same function as the [On-Line] button in the main panel window.
→ “[On-Line] Button” (
).

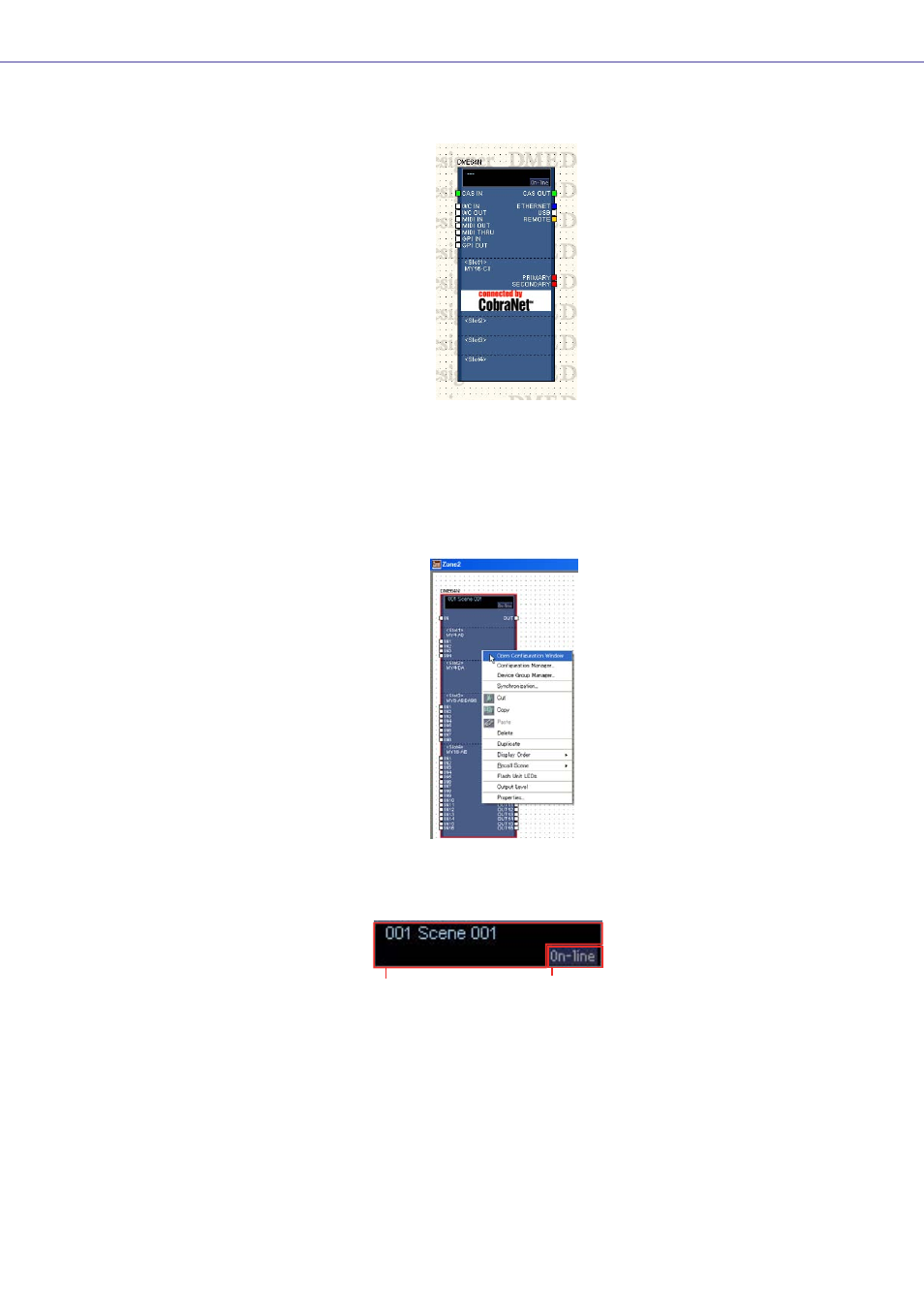

DME block with CobraNet card inserted
Scene Info
[On-Line] Button
