Chapter 3 Main Panel Window
DME Designer Owner’s Manual
136
Remote Connection
Connect the digital mixer to the [REMOTE] connector of one of the DME units, and set the port to be
used for head amp control to “Remote” via the [Internal HA Control] parameter in the “Misc” tab in the
“Utility” dialog box (
). The settings for all other DME units should be “OFF”. Use an Ethernet
cable connected to the [NETWORK] connectors to make connections between DME series units.
NOTE
• Only control signals are transmitted and received via the REMOTE connection. Audio connections must be made
separately.
• Connection can also be made to the [REMOTE] connector of a DME unit with built-in head amplifiers.

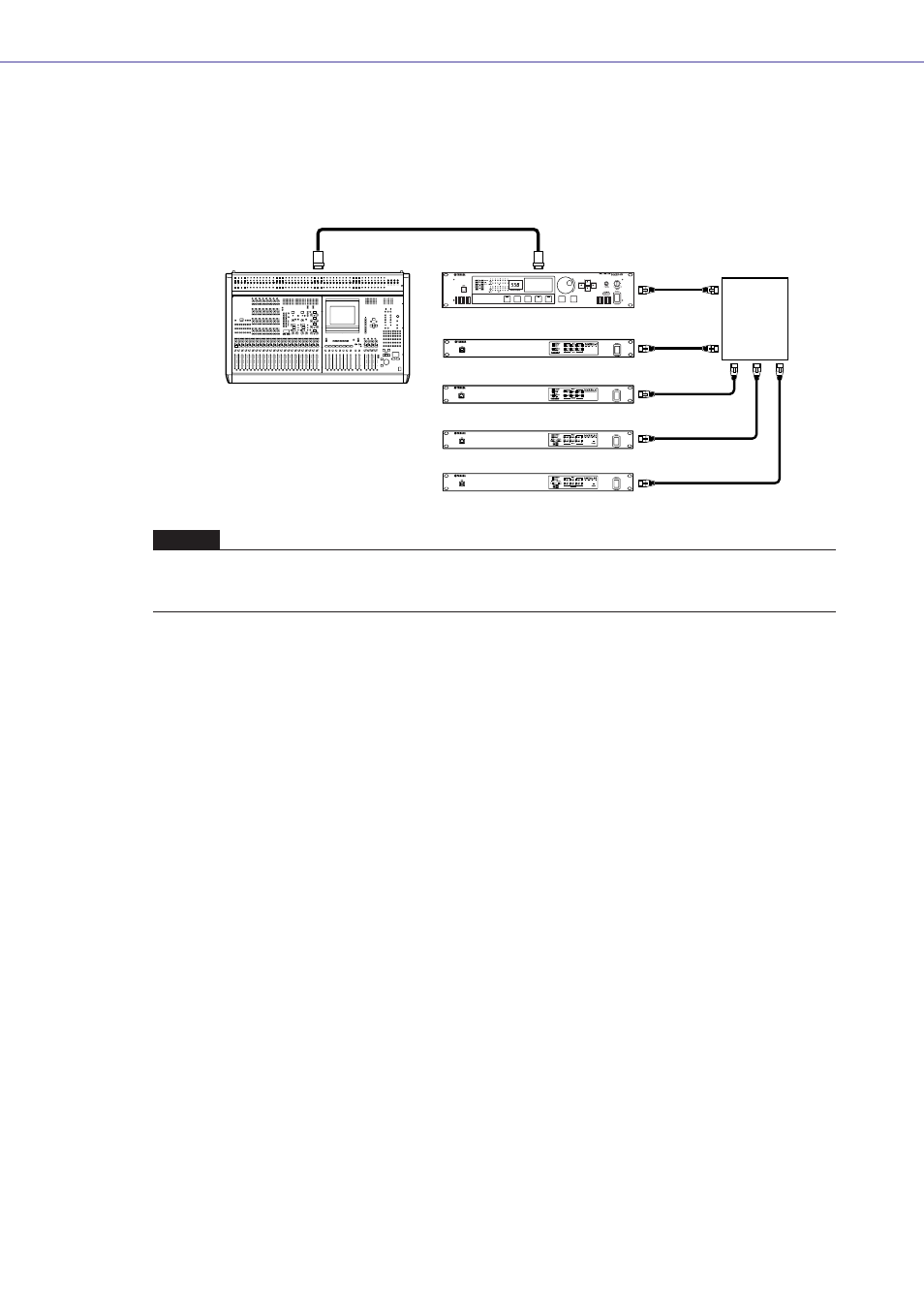

REMOTE
