CREATING A JOB SOURCE LIBRARY (JSL)
XEROX DOCUPRINT 96/DOCUPRINT 96MX LPS PDL REFERENCE 3-21
• A ruled line near the edge of the system page must be
positioned at least one half the line’s thickness inside the
system page to be printed. If positioned less than one half of
the line’s thickness, you will get an error message but the
system will print the job. Refer to your
Xerox DocuPrint 96/
DocuPrint 96MX LPS Operations Reference for additional
information.
One common cause of print elements accidentally beginning off the
system page is the improper use of the OUTPUT command SHIFT
parameter. This command is used to shift the entire page’s contents
relative to the boundaries of the system page. When a negative shift
value is entered (as is often the case for the back side of duplex
pages), and that value exceeds the left margin, no text elements
print. When using a negative value for the SHIFT parameter, be sure
that it is less than the value of the left margin.
Page orientation
There are two types of page orientation:
•
Landscape
•
Portrait
The vertical and horizontal positions for each of these orientations is
shown in figure 3-1.

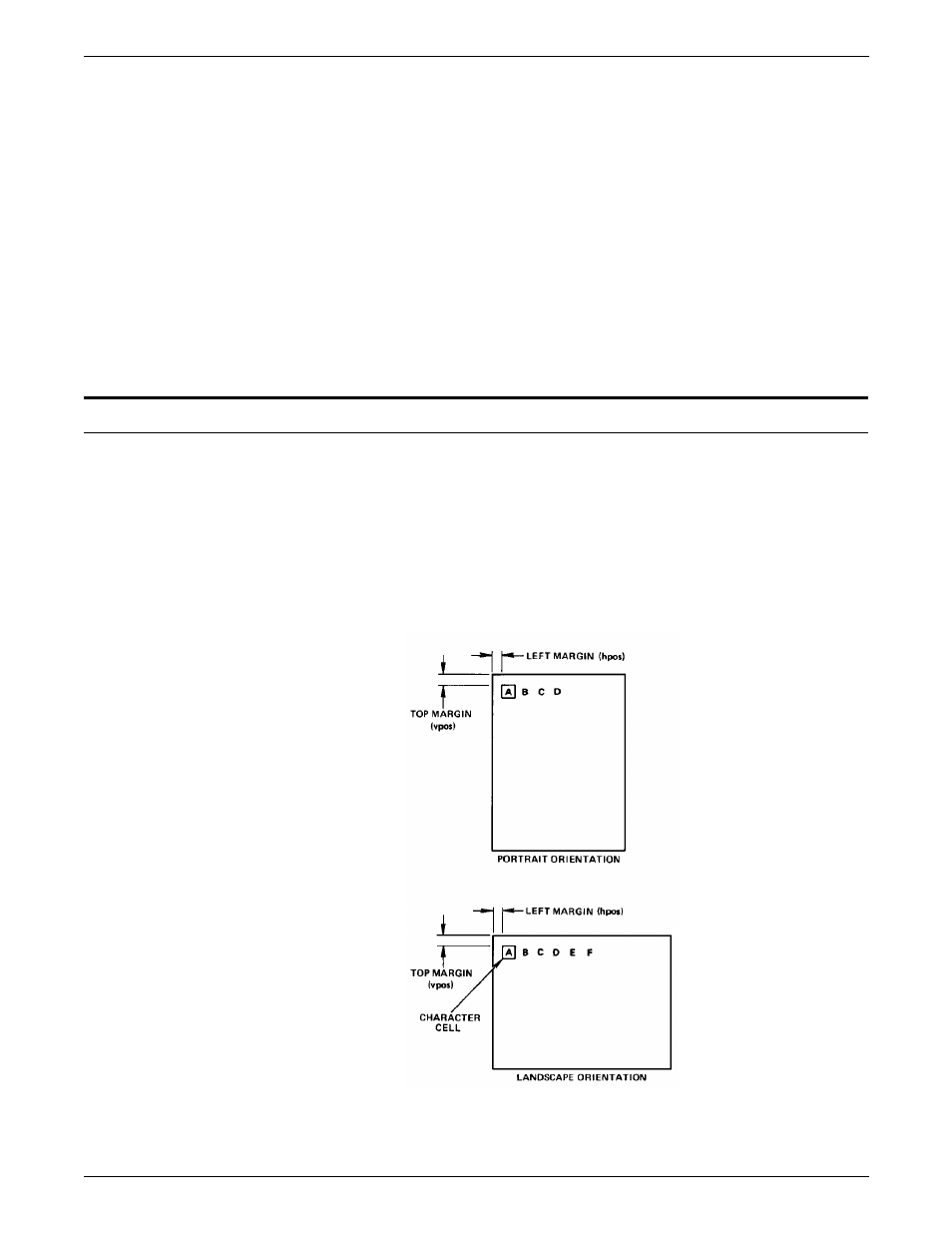

Figure 3-1. Vertical and horizontal positions in landscape and
portrait modes
