Chapter 23 Replacing or upgrading a power supply 293
BCM200/400 4.0 Installation and Maintenance Guide

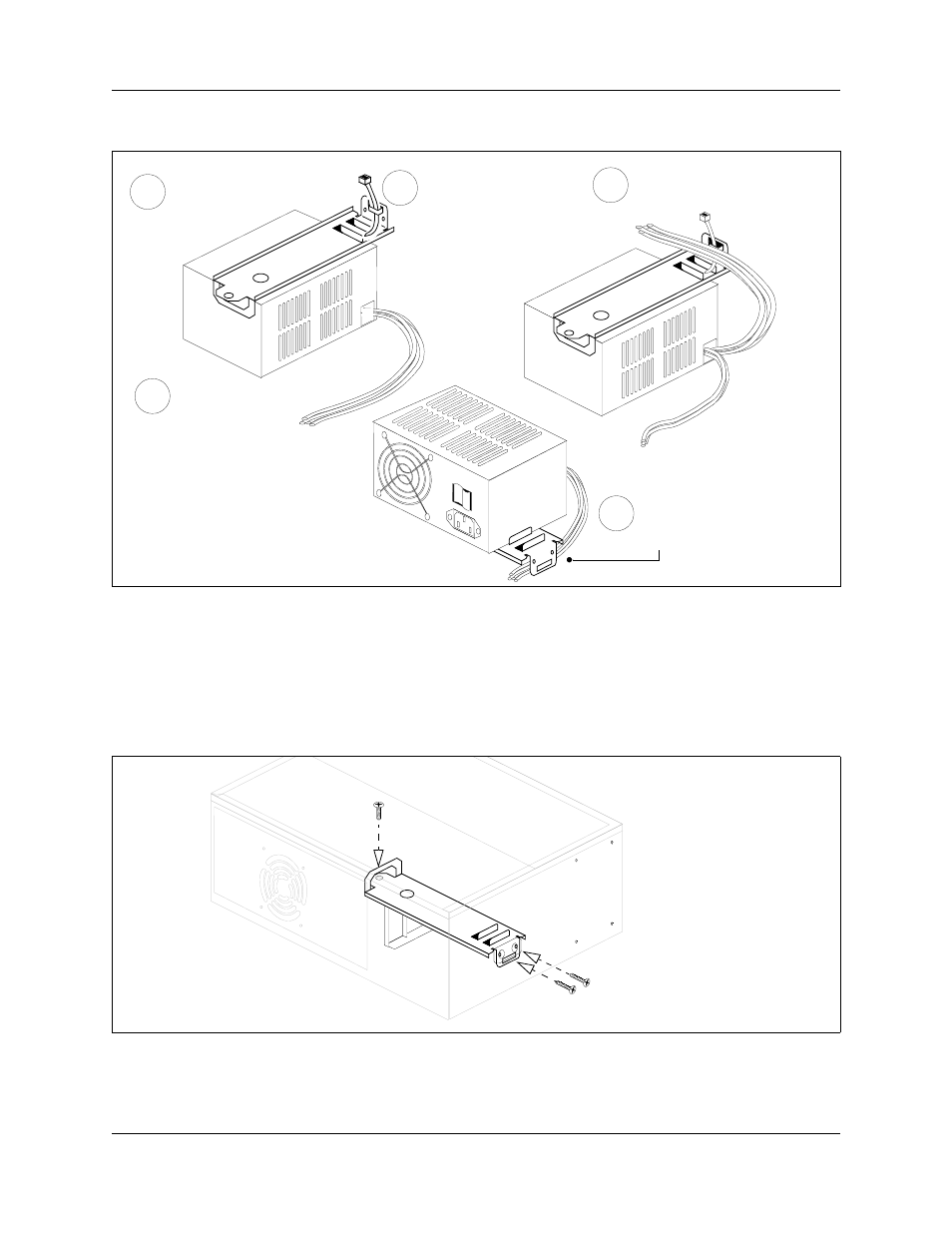

Figure 145 Fasten the power supply support bracket cables
6 Insert the standard power supply and support bracket in the main unit. The power supply
support bracket rests on the MSC guide bracket on one side, and the chassis wall on the other.
7 Ensure the mounting holes in the power supply support bracket align with the holes in the
main unit.
8 Fasten the power supply support bracket mounting screws (see Figure 146 ).
Figure 146 Fasten the power supply support bracket to the main unit
9 Align the mounting holes in the power supply with the chassis holes at the rear of the main
unit. Fasten the power supply mounting screws to the main unit (see
Figure 147 ).
Insert a tie-wrap in
the power supply
support bracket
3
Gather and route the power
cables at the tie-wrap
5
Secure the power cables to the
power supply bracket with the
tie-wrap
4
Place power supply upside
down on flat surface
1
2
Place the support
bracket on the power
supply
