LIVE ACTION AREA
The Live Action Area contains the recorded image area, Look Around area, and various overlays. The color of each
overlay can be customized to maximize the contrast between the guide(s) and scene being captured.

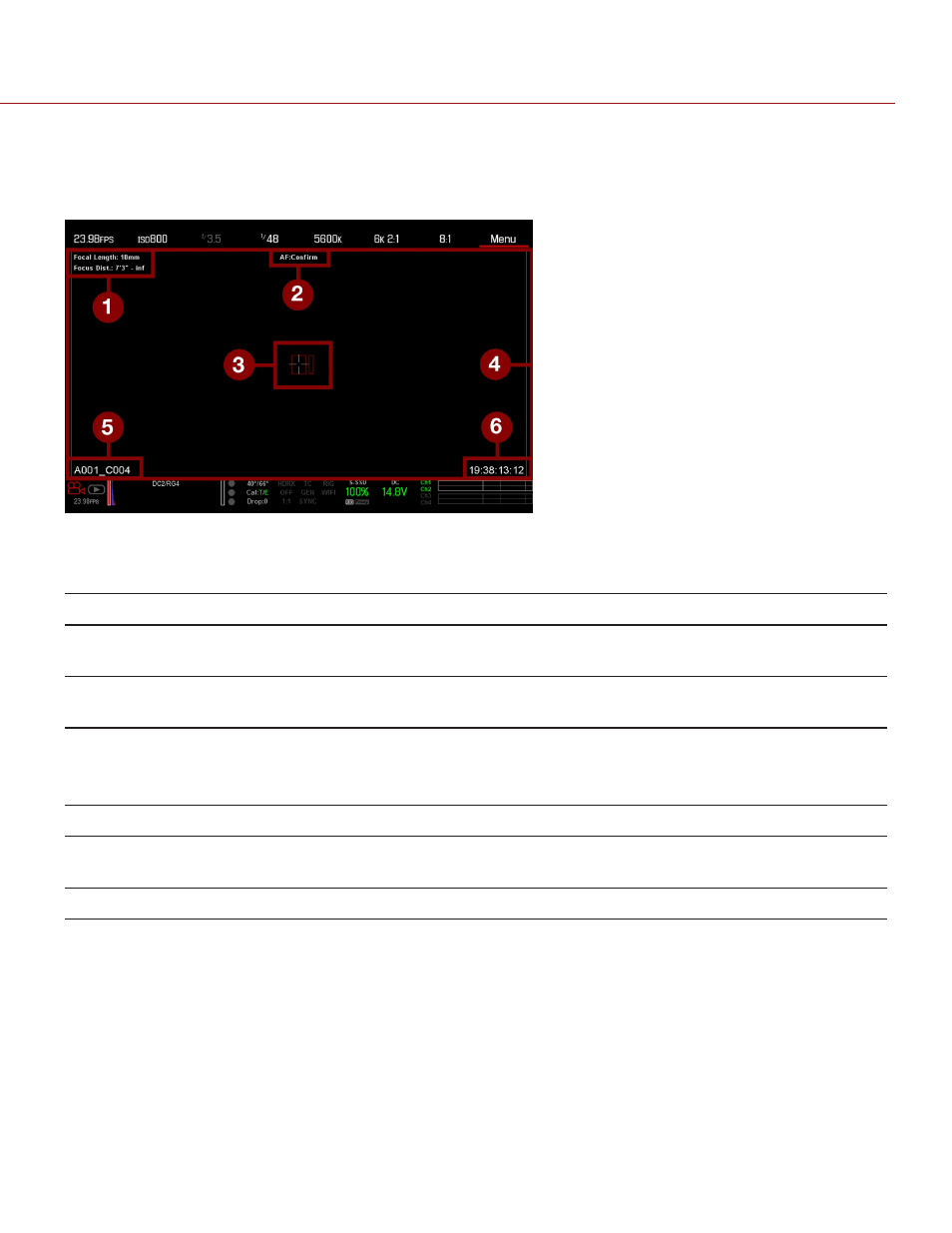

Figure: Live Action Area
The Live Action Area includes the following GUI elements:
# ITEM
DESCRIPTION
DETAILS
1 Lens Information
Lens information when using supported Canon
®
,
Nikon
®
, or Cooke
®
lenses
"Lens Information" on the
next page
2 AF Status
Currently selected auto focus mode
3 Center Crosshair and Spot
Focus Guide
Crosshair: Center of selected guide
Reference guides: Safe Action/Safe Title, Picture
Center, Grid Overlay
4 Frame Guides
Record or sensor projection area
5 Clip Filename
Filename of the clip being recorded, or filename of the
next clip to be recorded
N/A
6 Timecode Value
Current timecode value
