COMMUNICATION PORTS
SYNC (VIDEO SYNC IN) WITH SYNC TRIGGER BUTTON CIRCUIT
The DSMC2 Base Expander features a SYNC connector with a SYNC Trigger Button Circuit.
The 4-Pin 00B Sync Connector accepts timecode, genlock, and General Purpose Input (GPI) signals.

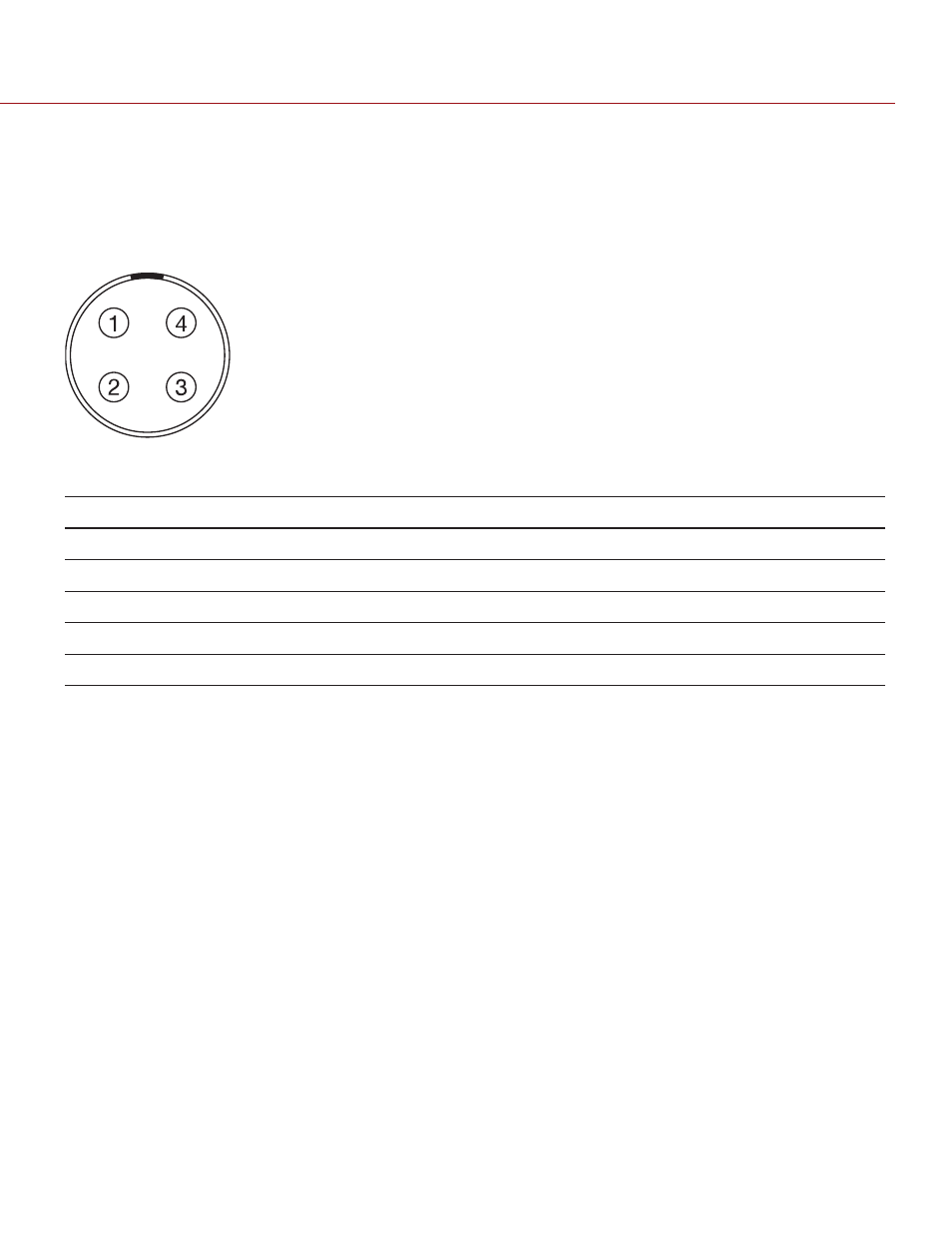

Figure: Front Face of the SYNC (Video Sync) Connector (Looking at the Camera)
4-PIN 00B SYNC CONNECTOR
PIN
SIGNAL
DESCRIPTION
DIRECTION
1
GROUND
Common ground
N/A
2
SS/GPI
Shutter sync/general purpose input trigger
In
3
TIMECODE
SMPTE unbalanced timecode input
In
4
GENLOCK
Tri-level sync input
In
NOTE:
Mating connector is FGG.00.304.CLAD.
