Non-Field-Replaceable Units

Centellis 4100 Installation and Use (6806800D82E)

162

The update channel is fully compliant to the PICMG 3.0, R1.0 Specification. Therefore, details are
not described within this chapter.

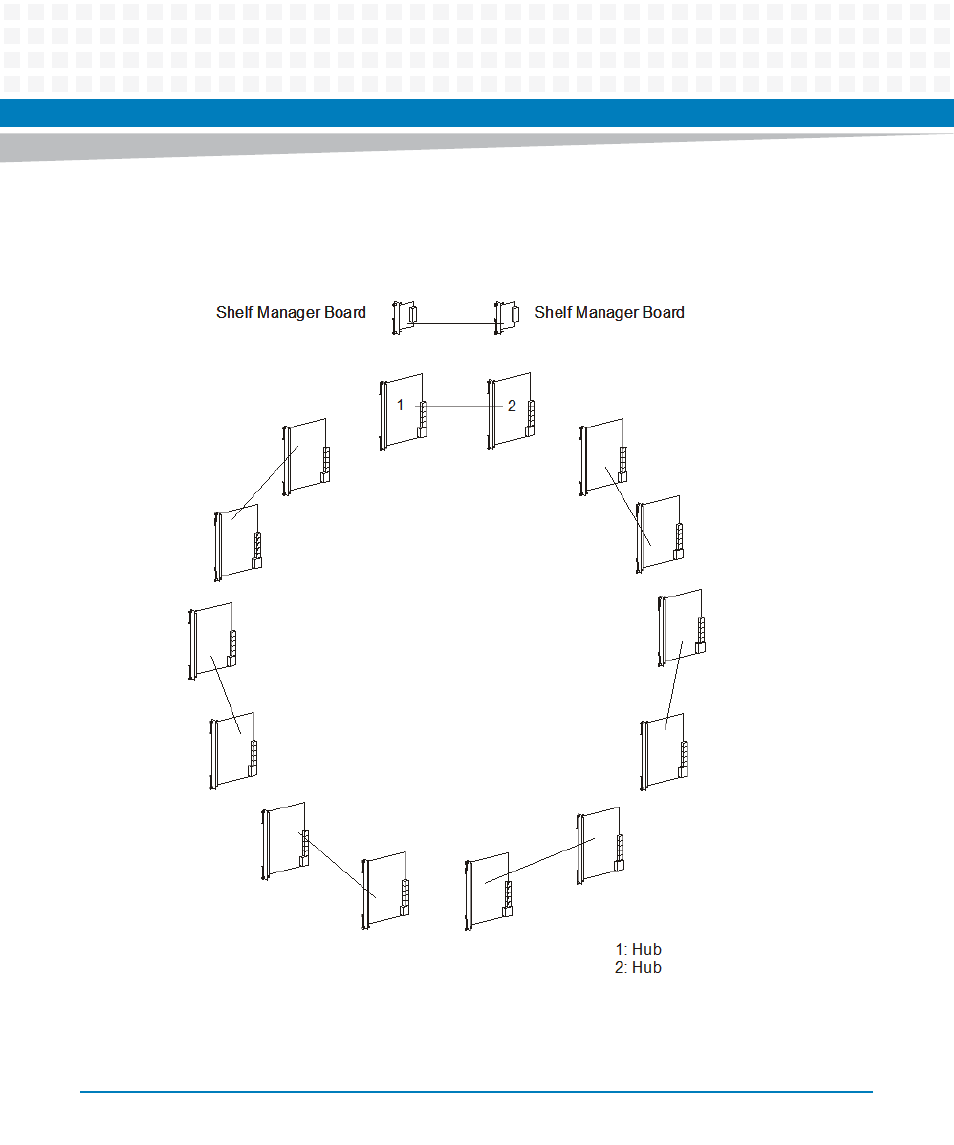

Figure 5-5

Update Channel
