Non-Field-Replaceable Units

Centellis 4100 Installation and Use (6806800D82E)

156

These interfaces are connected to each slot/blade across the P20, P21, P22, P23, P24
connectors, forming the zone 2. Respective zones are on the AdvancedTCA blade.

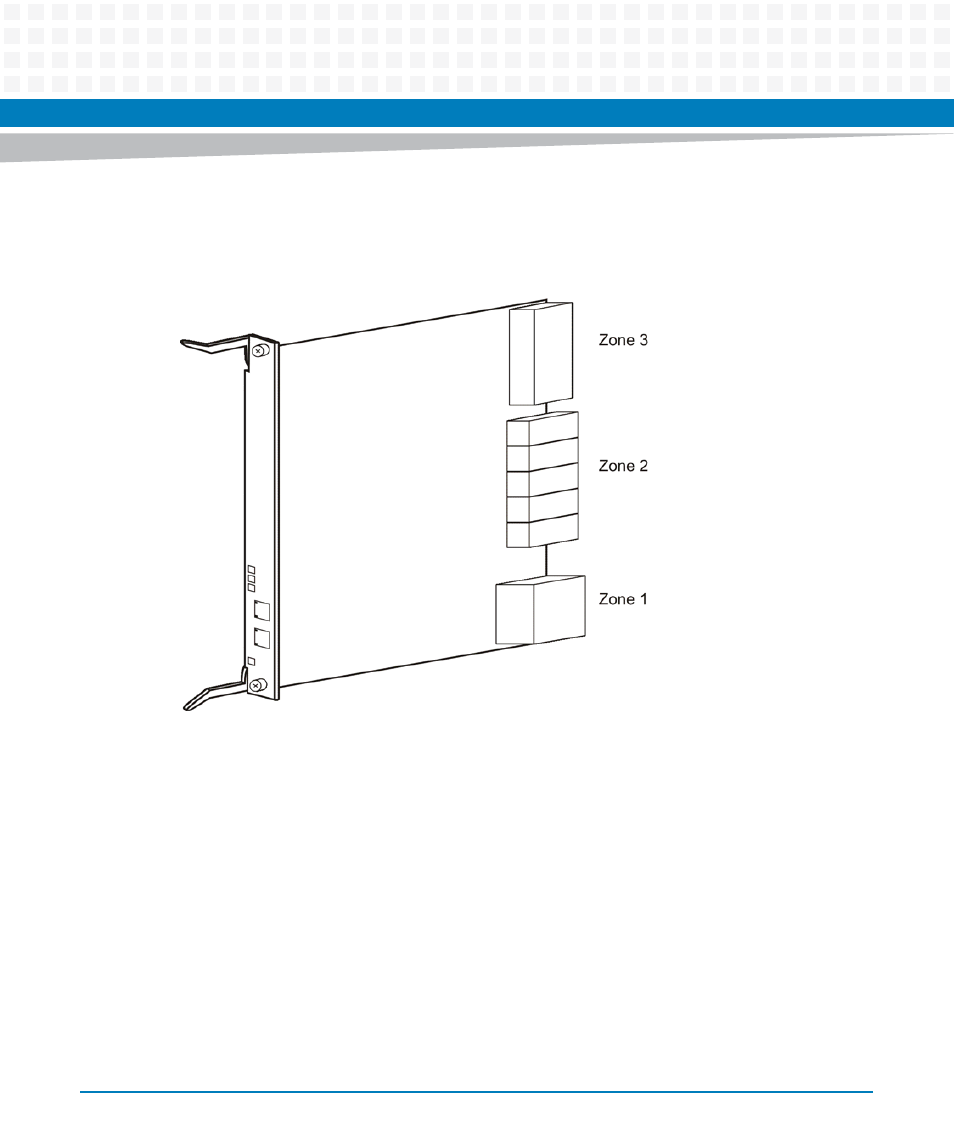

Figure 5-2

Location of Zones on a Blade
