Non-Field-Replaceable Units

Centellis 4100 Installation and Use (6806800D82E)

160

5.2.2

Fabric Interface

The fabric interface is configured as a dual star connection.

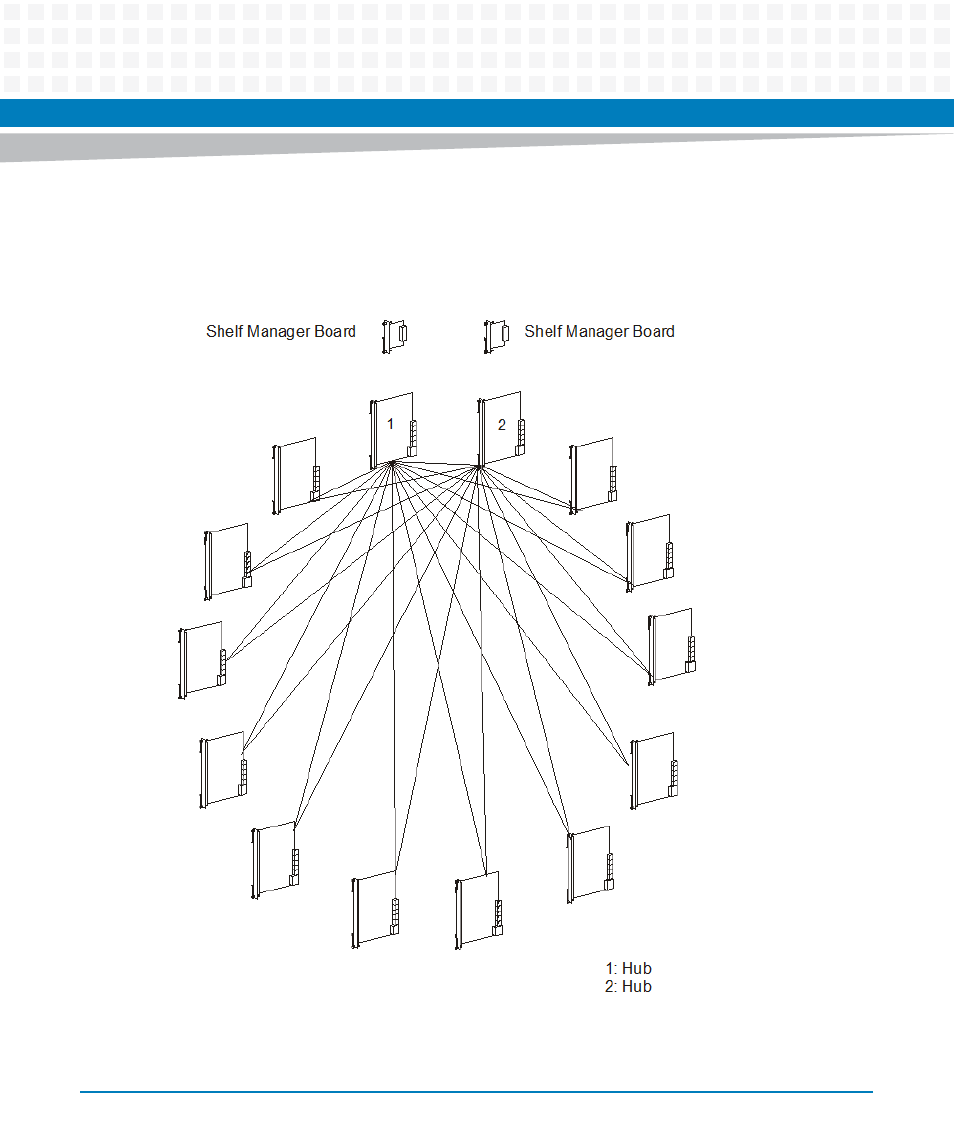

Figure 5-4

Fabric Interface with a Dual Star Topology
