4 node slots, 5 hub slots, 6 rear transition modules – Artesyn Centellis 4100 Installation and Use (2015) User Manual

Page 51: Figure 1-3, Slot distribution

Text mode
Original mode

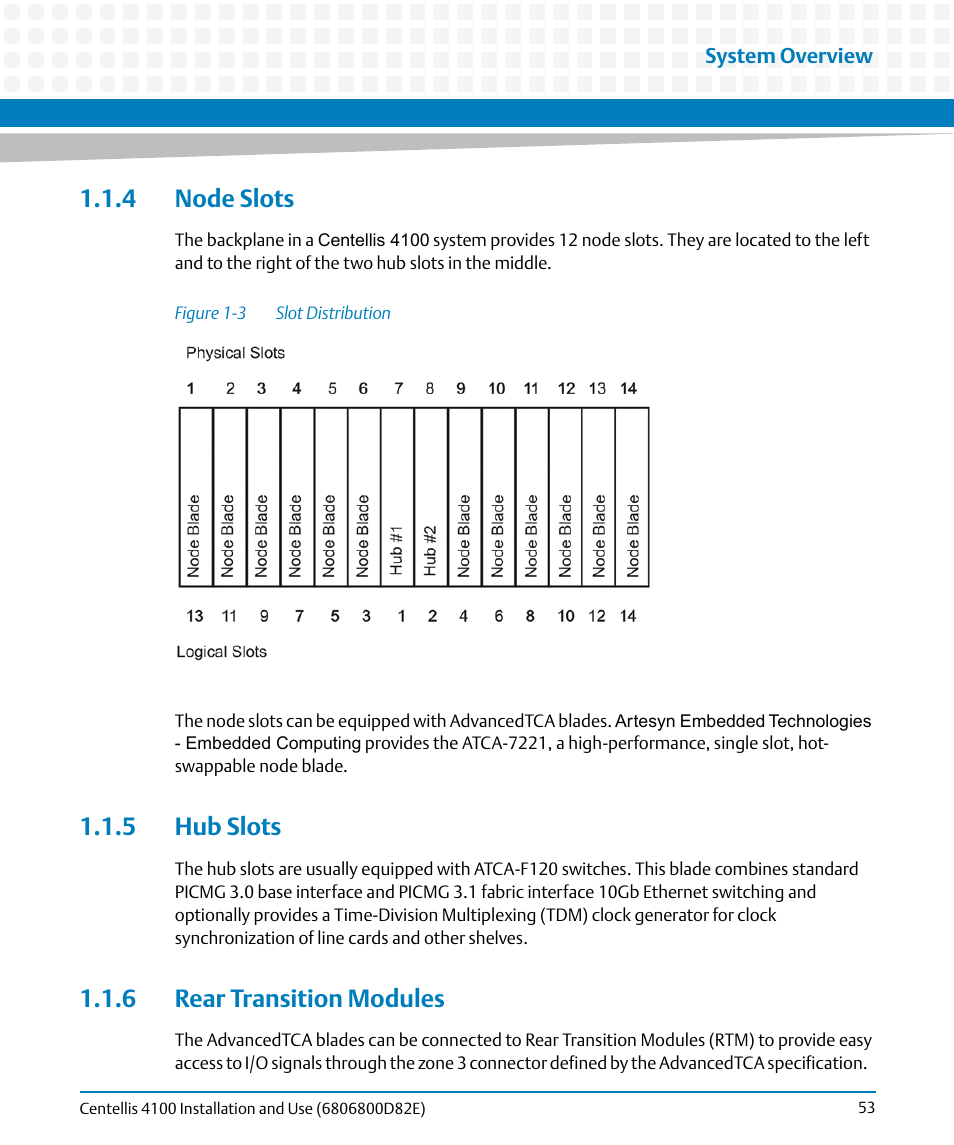

4 node slots, 5 hub slots, 6 rear transition modules | Figure 1-3, Slot distribution | Artesyn Centellis 4100 Installation and Use (2015) User Manual | Page 51 / 208
