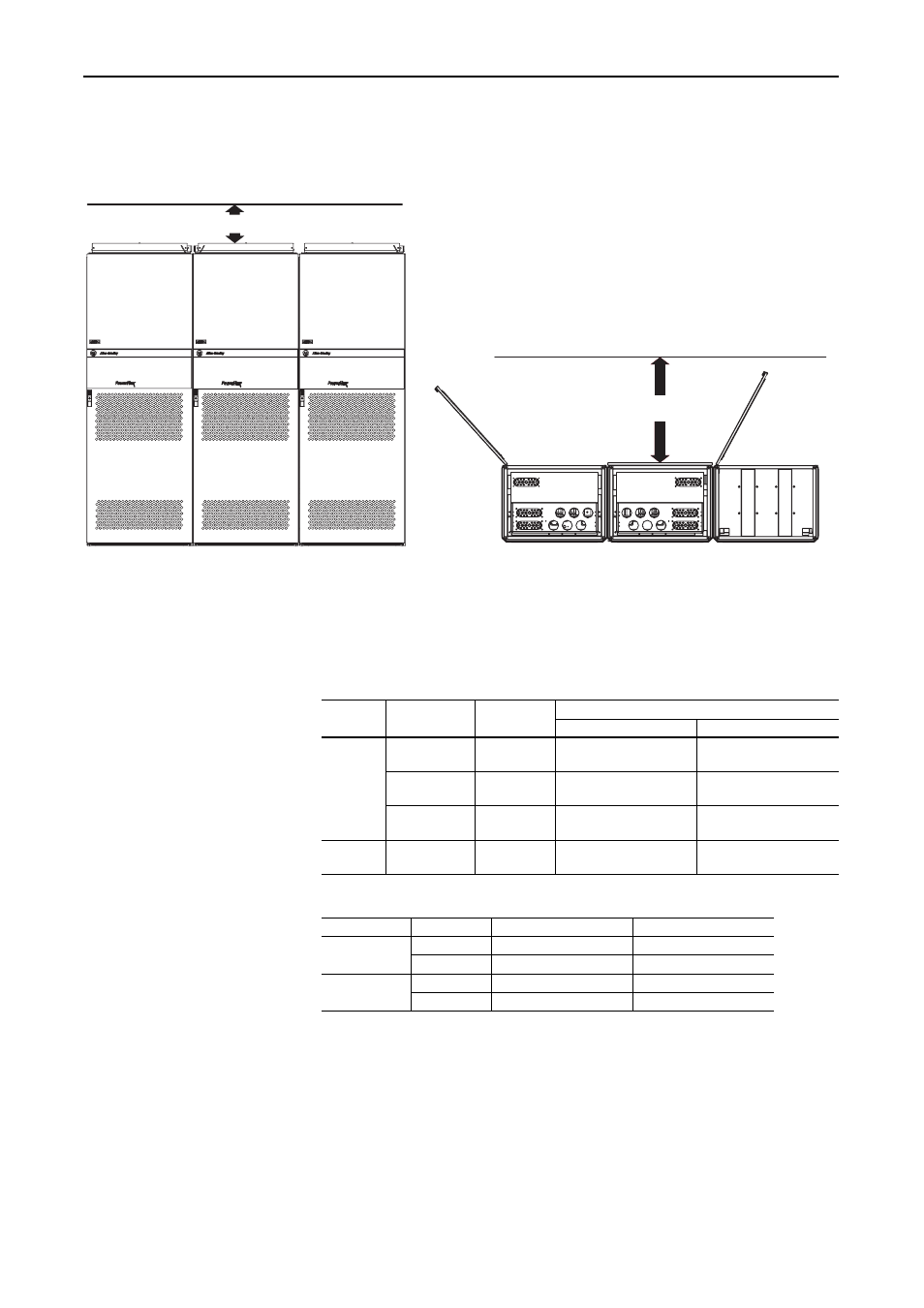

11-2 Frame 14 Installation
Minimum Mounting
Clearances
Operating Temperatures Frame 14 drives require a minimum of 4200 m
3
/h (2472 cfm) of cooling air
for each Inverter unit and 1150 m
3
/h (677 cfm) of cooling air for each
Converter unit.
Table 11.A Frame 14 Number of Inverter and Converter Units Per Drive
800 mm
(31.50 in.) Min.
200 mm
(8.0 in.) Min.
1500A Drive - 2400 mm Enclosure Shown.
PowerFlex
Drive
Voltage Class Amp Rating
Surrounding Air Temperature
Normal Duty
Heavy Duty
700H 400/480V AC
(540/650V DC) All 0 to 40
°
C (32 to 104
°
F) 0 to 40
°
C (32 to 104
°
F)
600/690V AC
(810/932V DC) 1500, 1900 0 to 40
°
C (32 to 104
°
F) 0 to 40
°
C (32 to 104
°
F)
600/690V AC
(810/932V DC) 2250 0 to 35
°
C (32 to 95
°
F) 0 to 35
°
C (32 to 95
°
F)
700S 600/690V AC
(810/932V DC) 1500 0 to 40
°
C (32 to 104
°
F) 0 to 40
°
C (32 to 104
°
F)
Voltage Class Amp Rating No. Converter Units No. Inverter Units
400/480V AC 1700, 2150 4 6
2700 6 6
600/690V AC 1500 3 6
1900, 2250 4 6
