10-12 Frame 13 Installation
Power Wiring Frame 13 400 and 600 Volt Class AC Input Power Wiring
Frame 13 size drives utilize two or three parallel power structures that are
pre-connected to line reactors through a fused input switch.
Important: Parallel wiring must have the same cable dimensions, type and
routing. Non-symmetrical wiring may cause unequal loading
between the converters and reduce the drive’s ability to deliver
current to the motor.

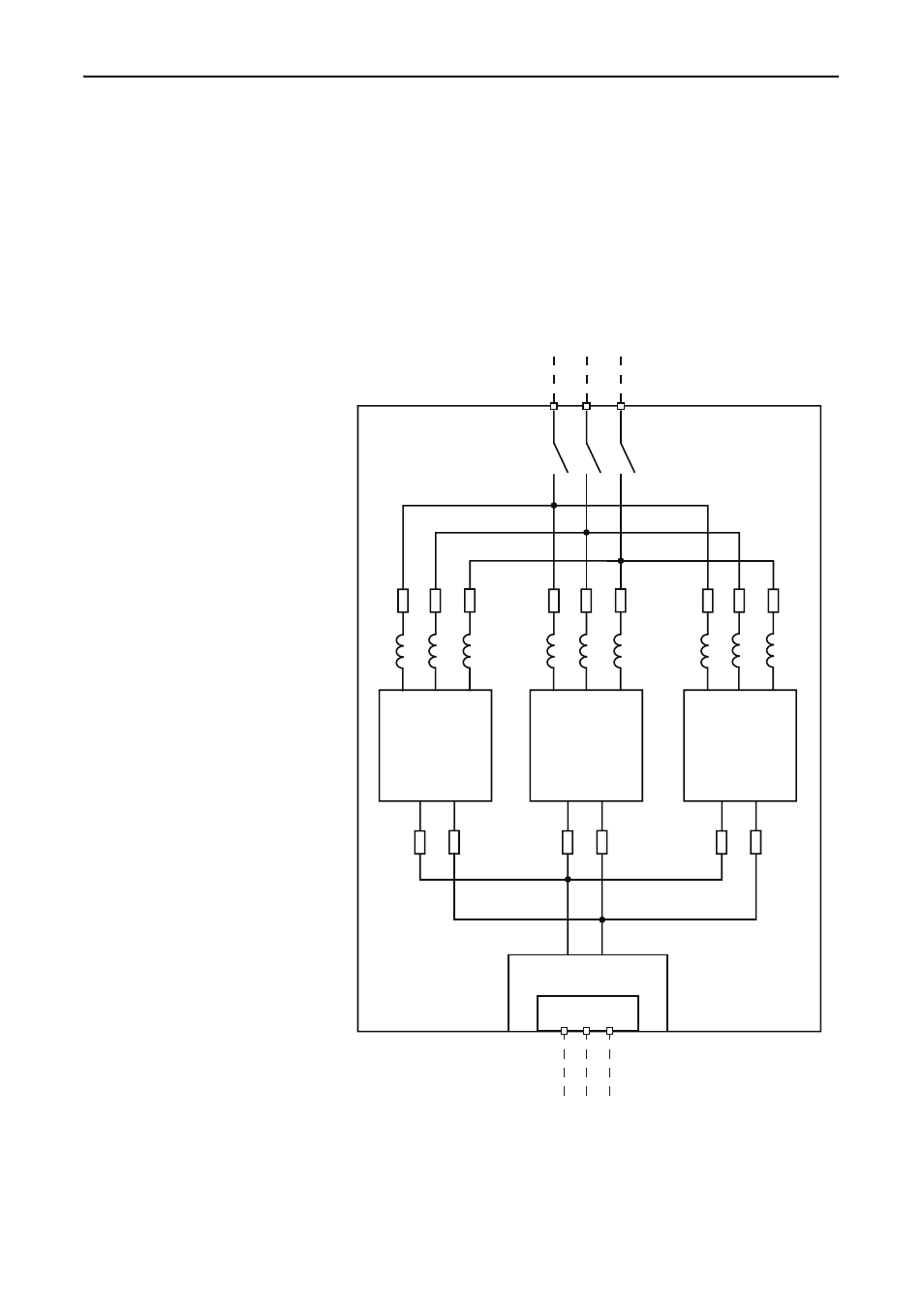

Figure 10.4 Frame 13 AC Wiring Example: Three Internal Fuses per Phase
L1 L2 L3
L1 L2 L3
Converter 1 Converter 2 Converter 3
Inverter Unit
Motor Out
U
/T1
V
/T2
W
/T3
AC Input Power Wiring
Provided by Customer
AC Input Power Terminals
Inside Drive
400V, 1300 & 1450 Amp
Example Shown
