Frame 13 Installation 10-5
Lifting and Mounting Frame
13 Drives Enclosed Frame 13 Drives with DC Input
Enclosed Frame 13 drives with DC input are shipped with the control pan
mounted in the motor connection area of the right-hand enclosure. The
control pan must be moved from this location to a location in the adjacent
enclosure, away from the power connections.
Refer to Appendix B - Lifting and Mounting Instructions for detailed
instructions on lifting and mounting the drive. When you have completed
the instructions in Appendix B, continue with the installation as directed
below.
Ungrounded, High Resistive
Ground or Grounded B
Phase Delta Installations Frame 13 size drives are equipped with common mode capacitors. To guard
against drive damage, these capacitors should be disconnected depending
upon the type of ground system on which the drive is installed.
To access and move the common mode jumper(s) and disconnect the
capacitor connections you must first move the Control frame and remove
the protective covers from the Converter unit. These steps are detailed on
the following pages.
Note: Refer to Wiring and Grounding Guidelines for Pulse Width
Modulated (PWM) AC Drives - Installation Instructions,
publication DRIVES-IN001…, for additional information on an
ungrounded distribution system or high resistive ground
installation.

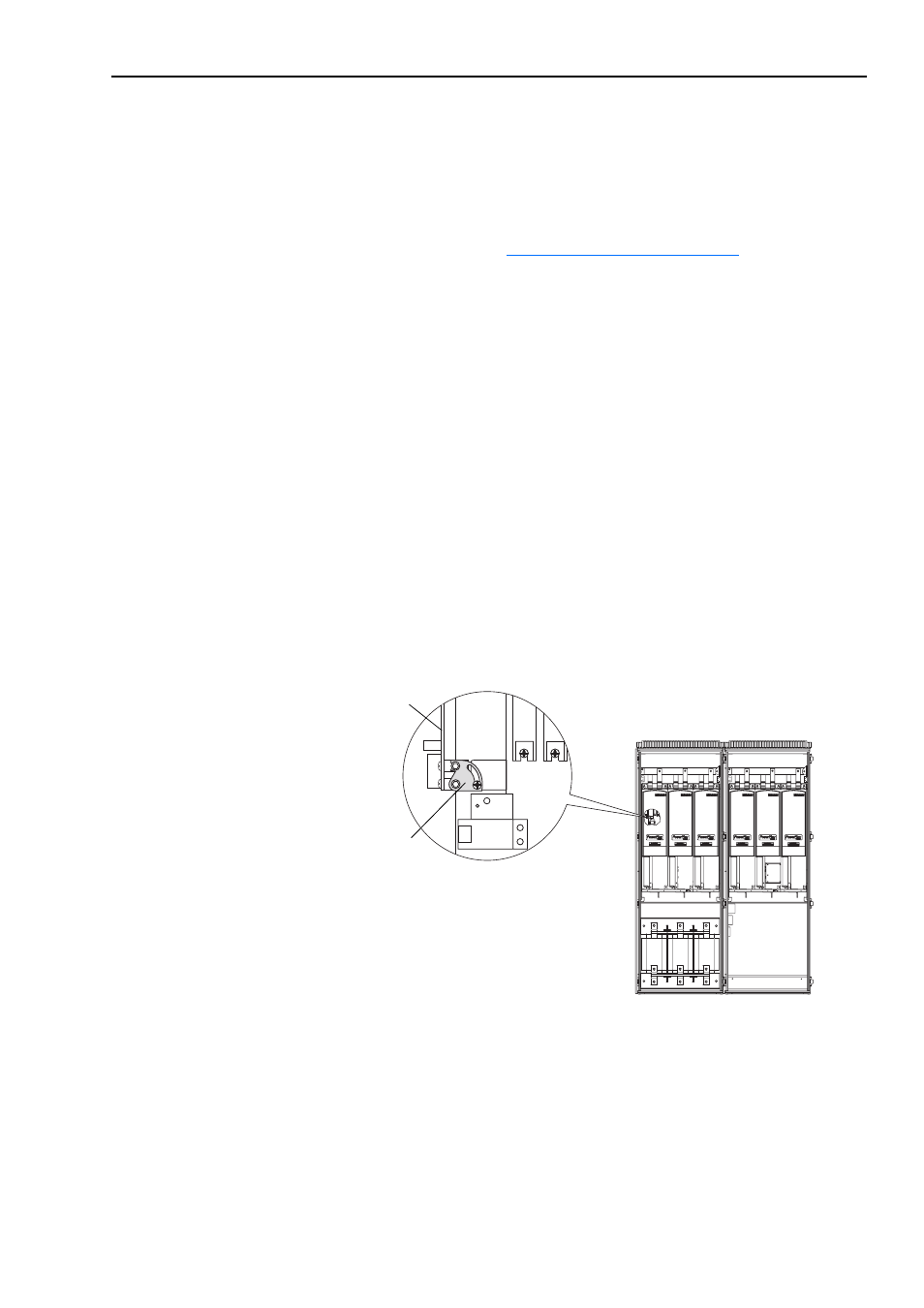

Figure 10.3 Common Mode Jumper and Rectifier Circuit Board Location
Converter
Unit
Common
Mode
Jumper
Control Frame not shown for clarity only
Inverter
Unit
There is one jumper for each
Rectifier module. The Rectifier
modules and jumpers are located
on the left side of the power stack
on the drive’s rectifying structure
(left side enclosure).
Rectifier
board Front View
of Assembly
