8-6 Frame 11 Installation
Lifting and Mounting Frame
11 Drives Refer to Appendix B - Lifting and Mounting Instructions for detailed
instructions on lifting and mounting the drive. When you have completed
the instructions in Appendix B, continue with the installation as directedd
below.
Removing the Protective

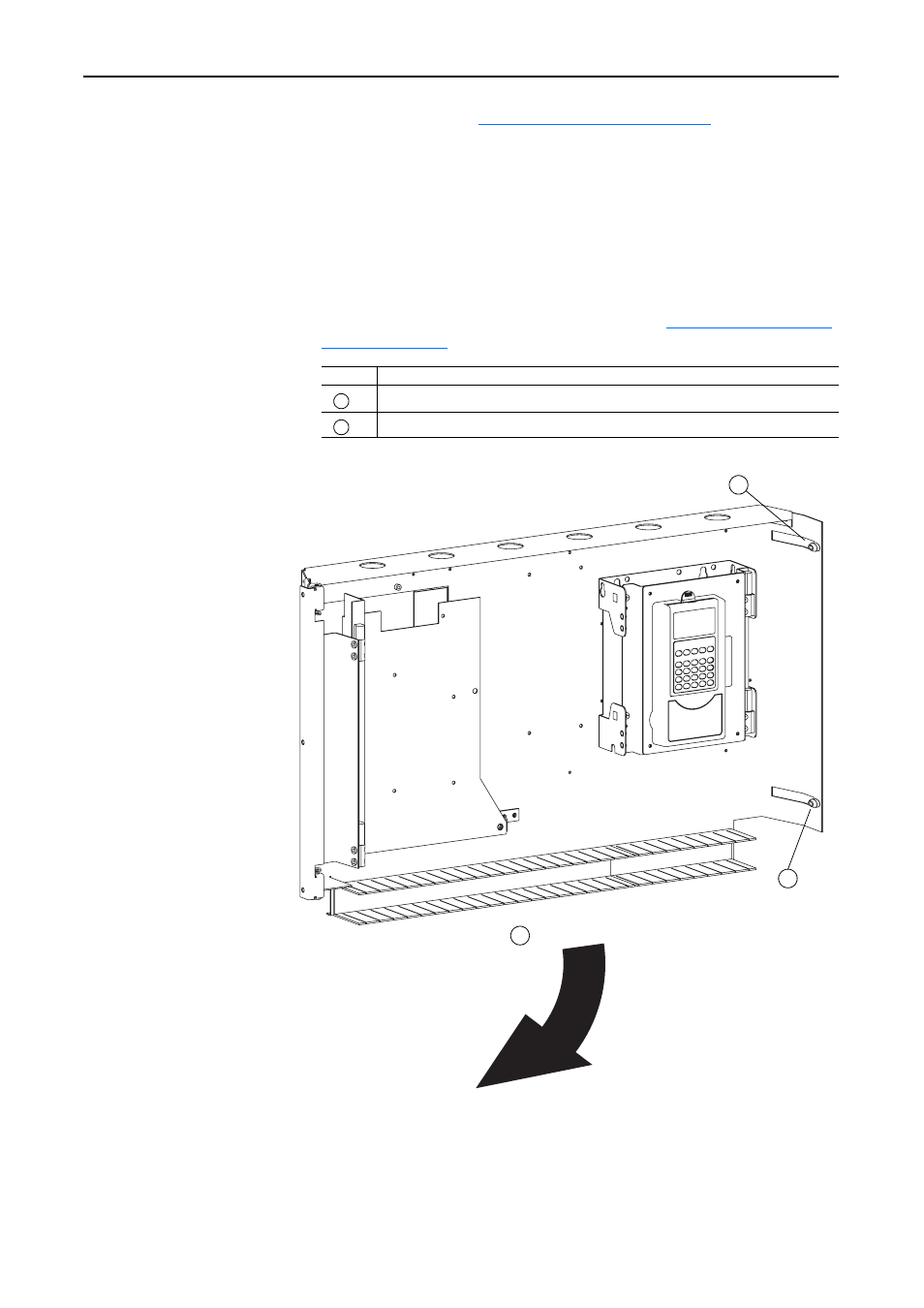

Covers Moving the Control Frame
To gain access to the power wiring terminals, airflow plate and protective
covers you may need to move the Control Frame out of the way. If you do
not need to move the control frame, continue with
"Removing the Airflow
Plate" on page 8-7 .
Task Description
Loosen the T8 Torx-head screws that secure the Control Frame to the drive enclosure.
Swing the Control Frame out and away from the power structure.
A
B
B
A
A
