Frame 11 Installation 8-3

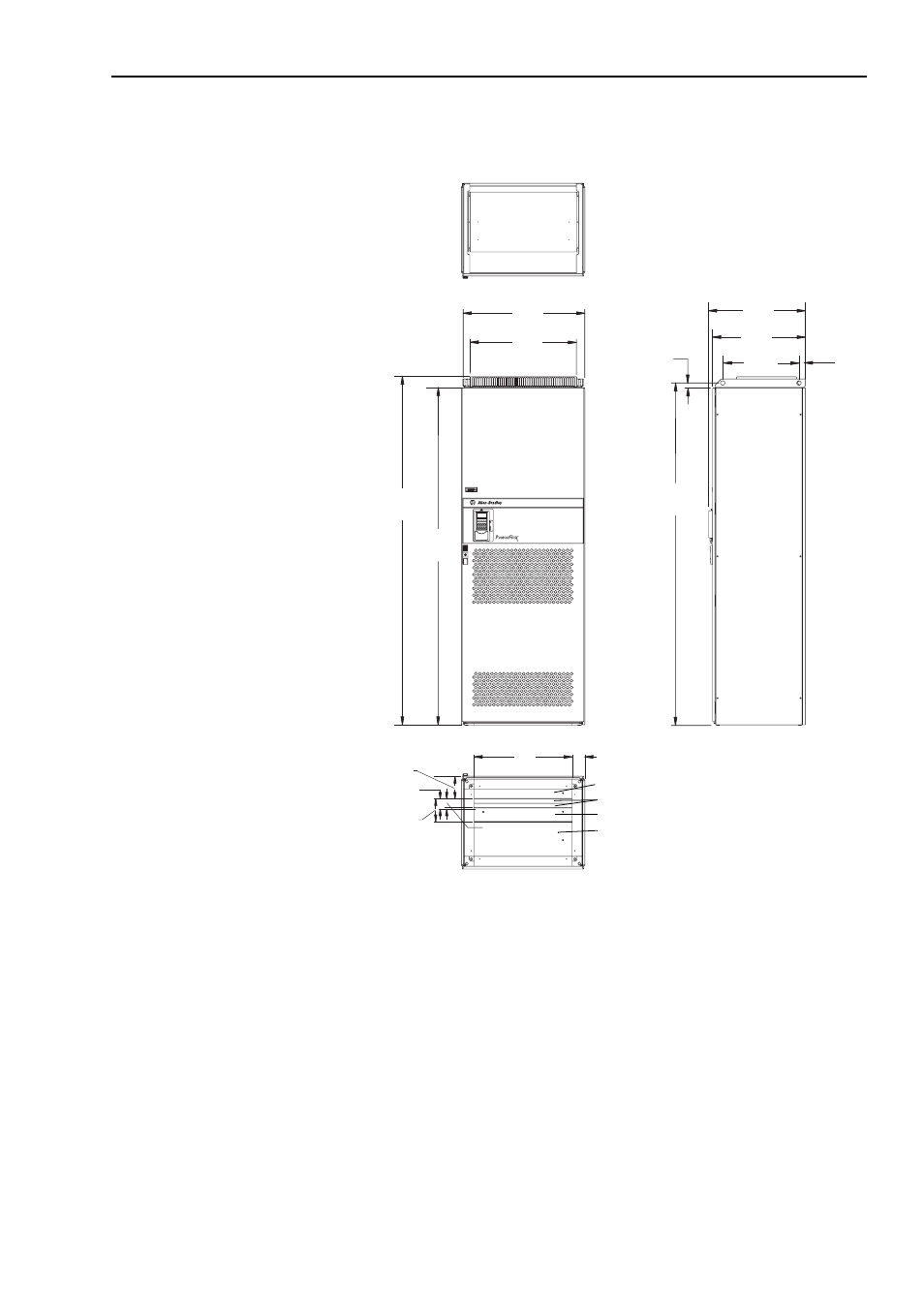

Dimensions Figure 8.3 Enclosure Code A NEMA/UL Type 1 - IP21 and M (NEMA/UL Type 1, IP21 w/
Conformal Coat)
797.0
(31.38)
736.0
(28.98)
32.25
(1.27)
2234.0
(87.95)
42.0
(1.65) 498.0
(19.61)
605.5
(23.84)
621.74*
(24.48)
DANGER !
2275.0
(89.57)
2205.0
(86.81)
640
(25.2)
83
(3.3)
153.5 (6.0)
Gap with
Overlapping
Plate Removed
57.2
(2.3)
Standard
73.3 (2.9)
Max.
144.5
(5.7)
Dimensions are in millimeters and (inches).
* This dimension is the depth for drives with
the optional door-mounted HIM installed.
Stationary metal front bottom plate
Two pieces of soft foam taped to adjacent metal plates
Overlapping metal bottom plate (slightly adjustable)
Stationary metal back bottom plate
Wire entry for this enclosure is between two pieces of soft foam. If the adjustable plate is slid back, a gap
develops between the foam pieces. Otherwise, the foam acts as a loose gasket around the wires.
