4-20

Installation and Hookup

Publication 999-122 - January 1997

Allen-Bradley 1391B-ES and 1391-DES Drives

If you are using 4100-CCAQB pre-engineered cable assemblies from
Allen-Bradley to connect the IMC-S/23x to Allen-Bradley 1391B-ES
or 1391-DES AC servo drives, select 5V encoder power (the factory
setting) and refer to Appendix A for connection information.

Allen-Bradley 845F, 845H, and 845T Encoders

If you are using Allen-Bradley 845F, 845H-, or 845T incremental
encoders (see Select the Encoder Power Voltage earlier in this section
for compatible models), connect them to the IMC-S/23x using a

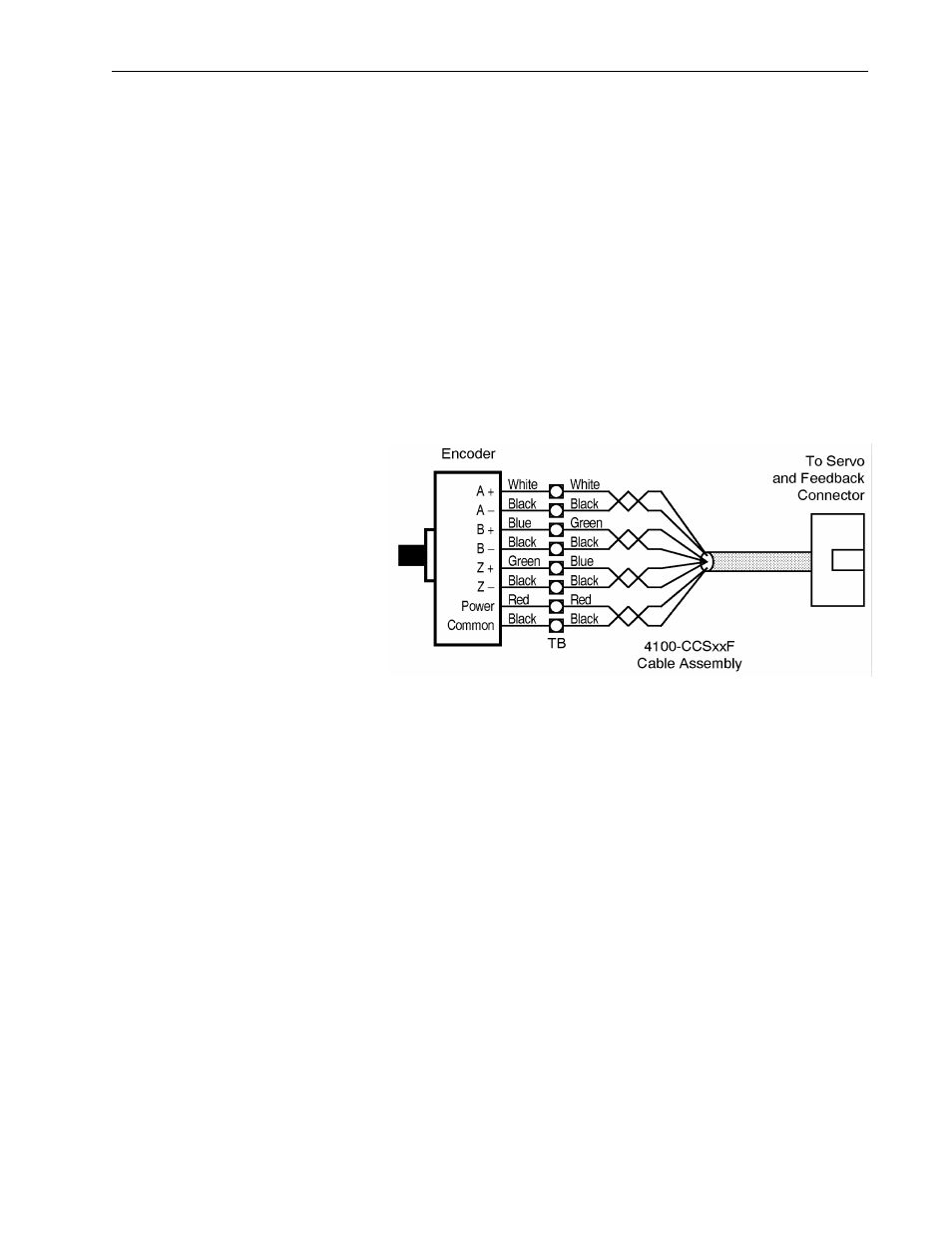

separate 4100-CCSxxF pre-engineered cable assembly for each axis as
shown below.
