Rockwell Automation 999 IMC S Class Compact Motion Controller (Cat. No. 4100-999-122) User Manual
Page 47
Installation and Hookup
4-5
Publication 999-122 - January 1997

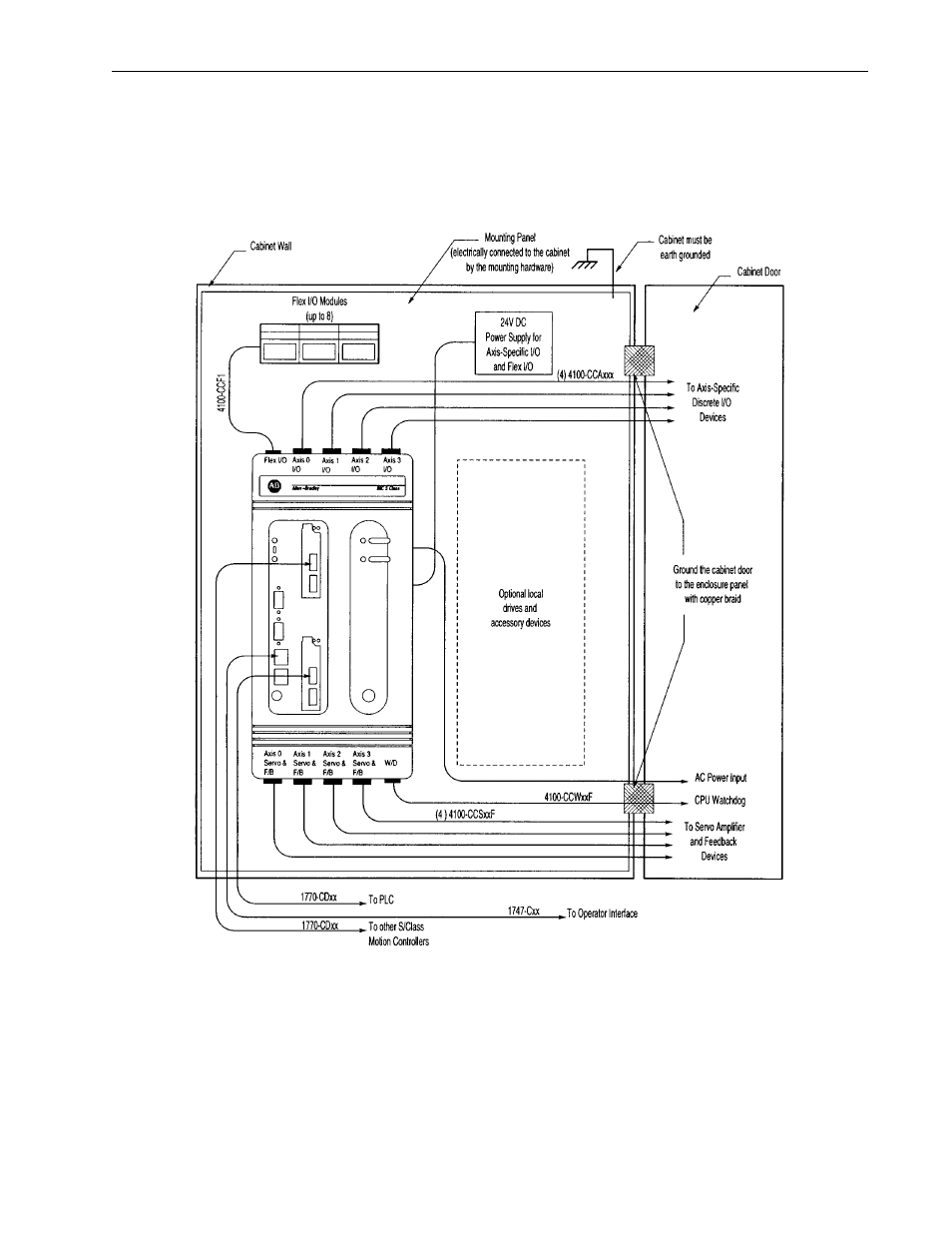

Figure 5.1
Suggested Bulletin 4100 Compact Motion Control System
Configuration for Meeting CE Requirements
A/C and I/O fuse types: 3A Dual Element Time Delay (Slow Blow)
(1/4 in. by 1 1/4 in.).
Important: Input power is to be wired in accordance with local
regulations.
