Rockwell Automation 999 IMC S Class Compact Motion Controller (Cat. No. 4100-999-122) User Manual
Page 44
4-2
Installation and Hookup
Publication 999-122 - January 1997

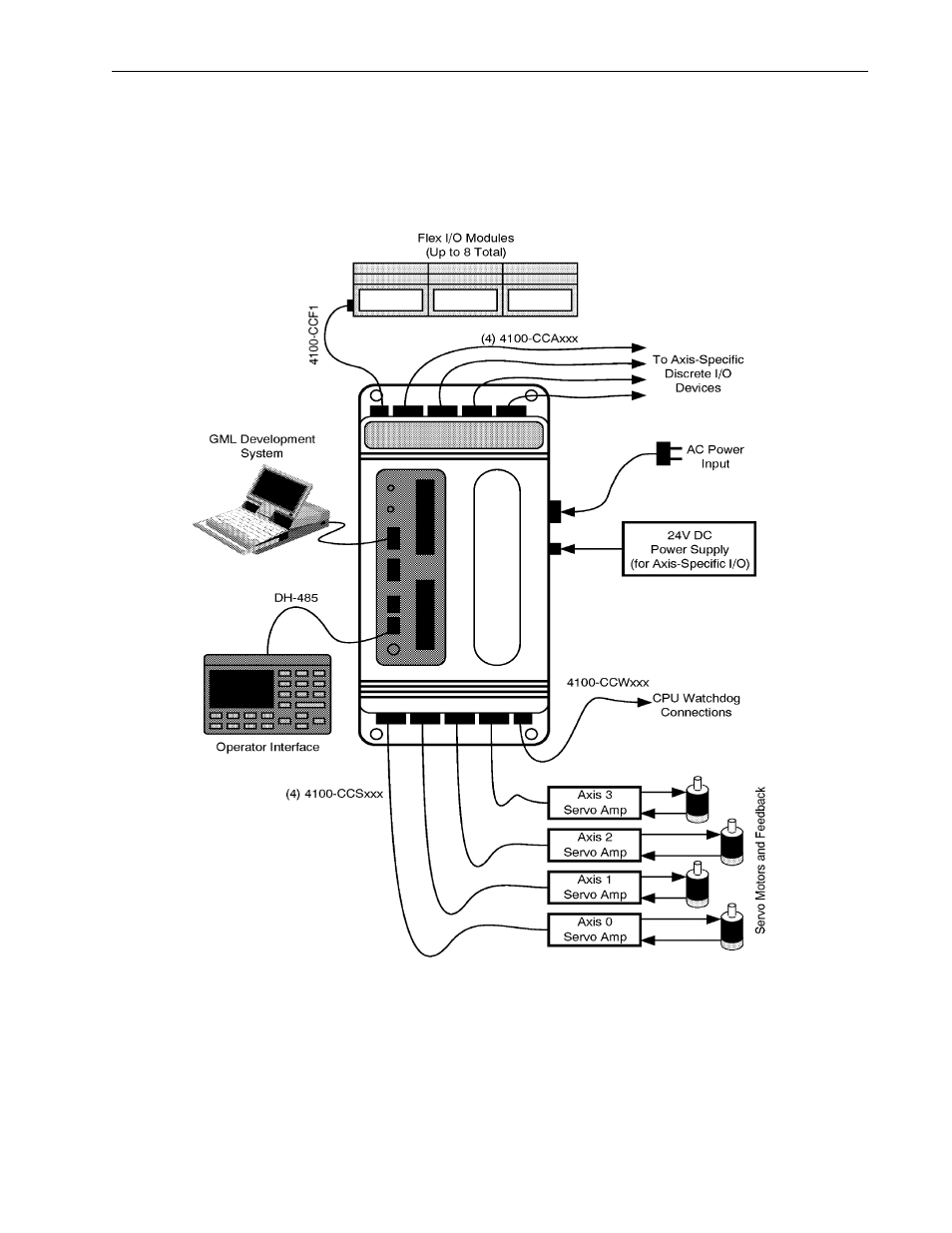

As shown below, the servo drive and feedback devices attach to the
bottom panel of the IMC S Class Compact while the axis-specific
(dedicated) I/O devices attach to the top panel. Power input terminal
blocks are on the right side of the unit.
