Rockwell Automation 999 IMC S Class Compact Motion Controller (Cat. No. 4100-999-122) User Manual
Page 184

A-6
Cable Information
Publication 999-122 - January 1997
Connections for home and overtravel limit switches, drive fault
contacts, and the registration sensor are flying leads for connection to
a user-supplied terminal block. 15 feet (4.5 m) of cable is provided for
these connections.

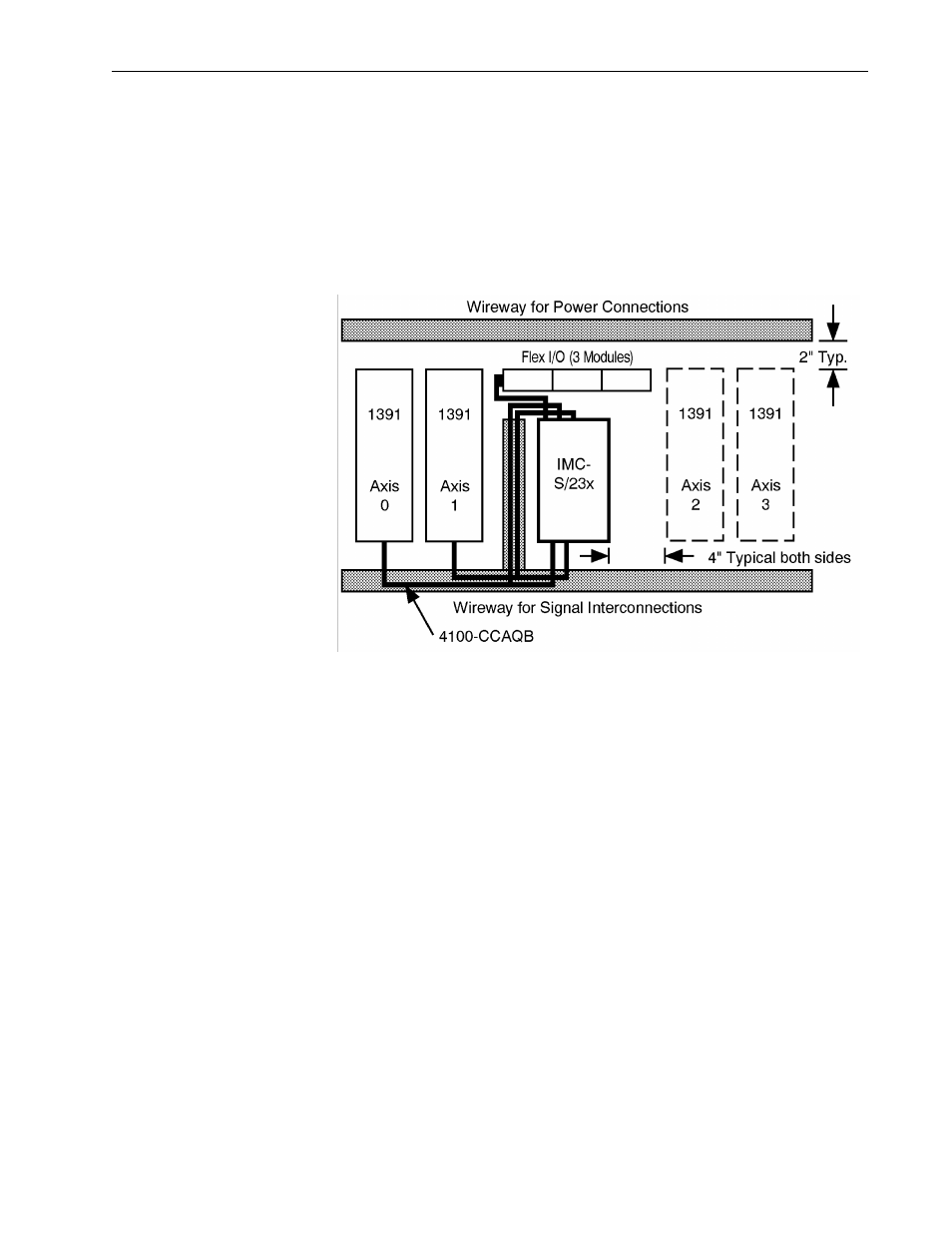

The 4100-CCAQB cable assembly is designed to be used with the panel
layout shown below. Be sure to keep the power and signal wires
segregated in separate wireways for maximum noise immunity.
The length of the 4100-CCAQB cable assembly is sufficient for all axes
when this panel layout is used. See Installation and Hookup earlier in
this manual for more information.
If your servo drives are not mounted according to the recommended
panel layout, use the 4100-CCSxxF and 4100-CCAxxF cable
assemblies discussed previously to connect the drives.
