Rockwell Automation 999 IMC S Class Compact Motion Controller (Cat. No. 4100-999-122) User Manual
Page 181
Cable Information
A-3
Publication 999-122 - January 1997
4100-CCA15F
The 4100-CCA15F is a 15 foot (4.5 meter) long cable assembly with
flying leads which connects the IMC S Class Compact to a single axis
of dedicated discrete I/O. Each 4100-CCA15F cable assembly provides
connections for one axis-use multiple cable assemblies for multiple
axes.

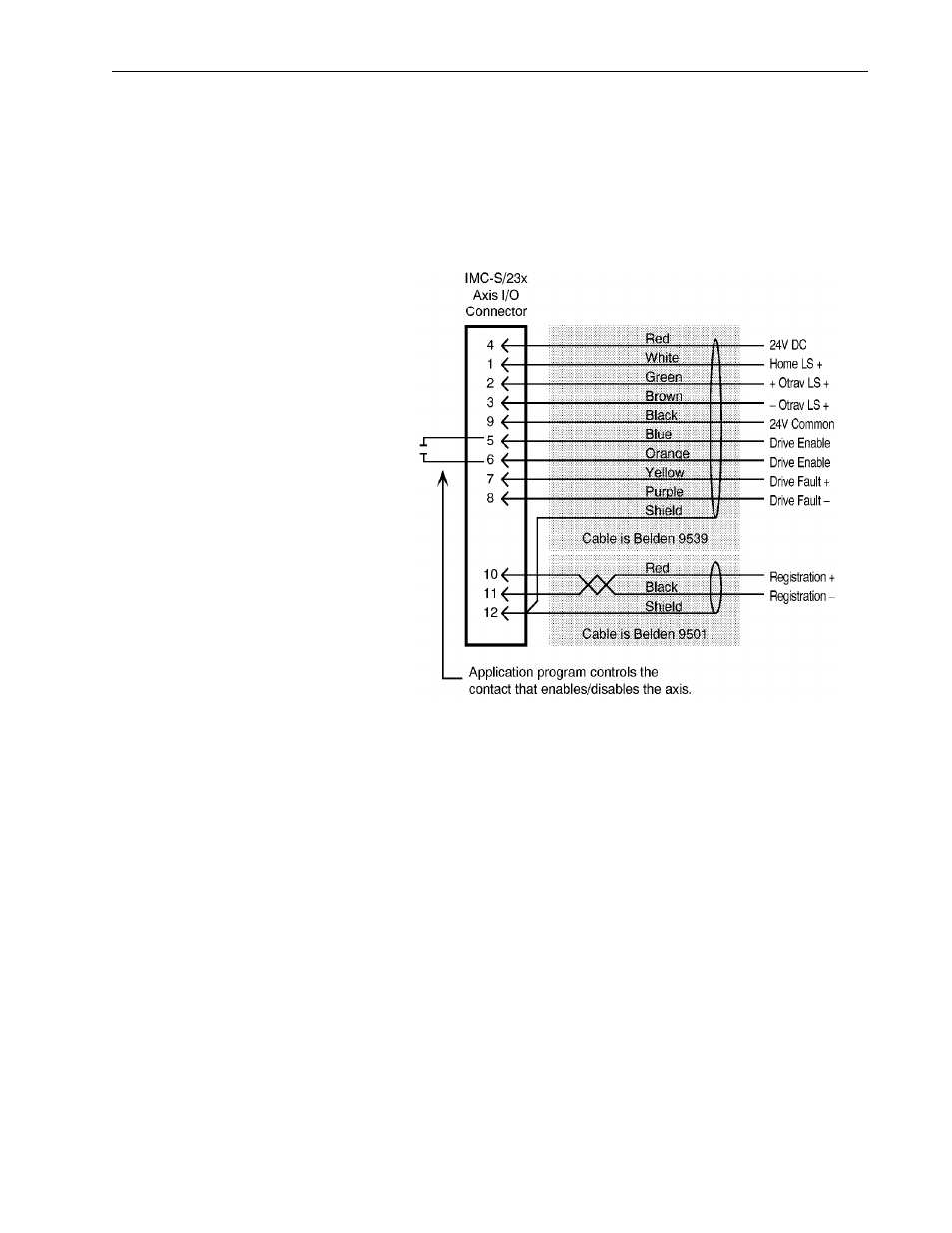

A schematic of the 4100-CCA15F cable assembly is shown below.
