Page 90

3.18.2

Header Functions

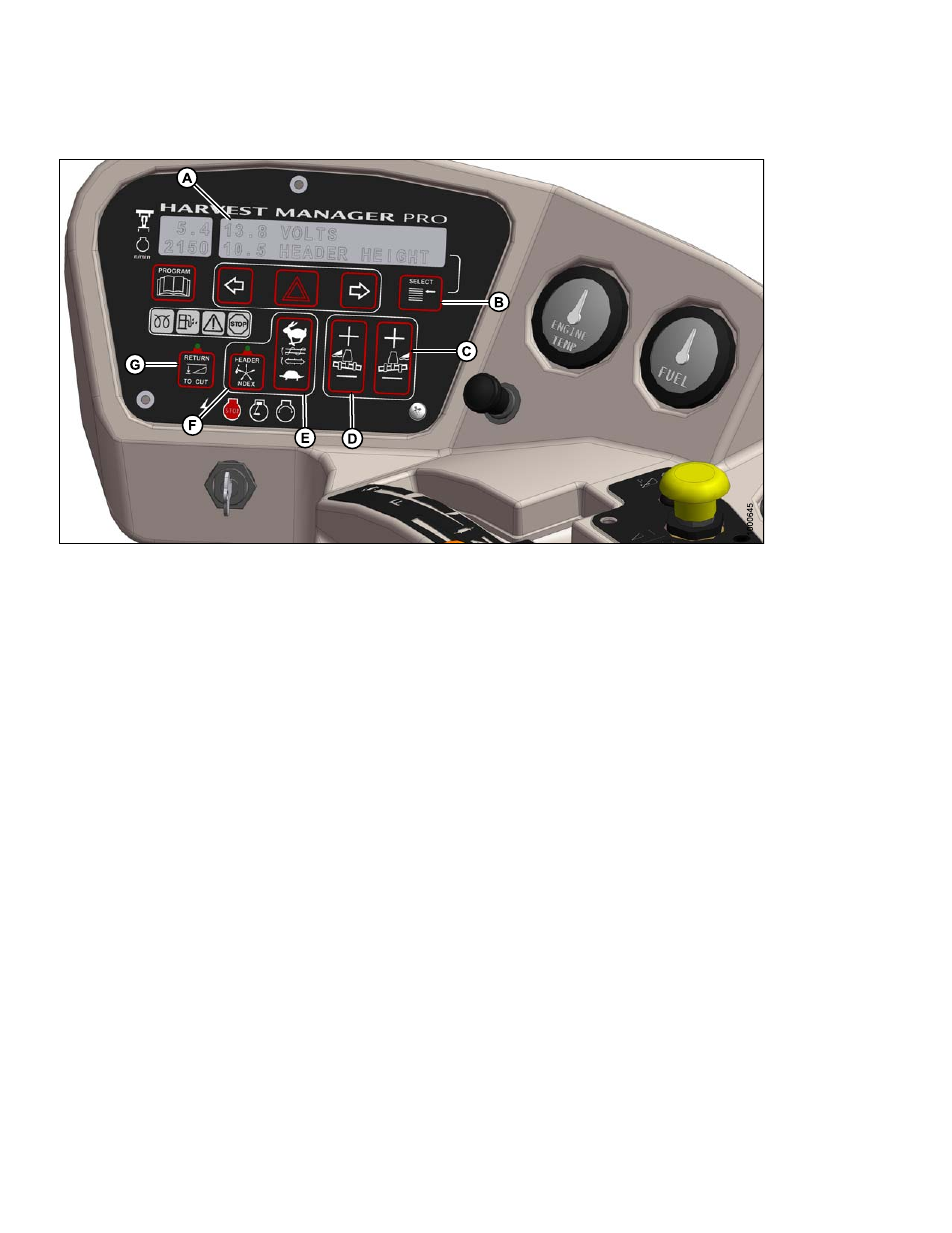

Figure 3.63: Cab Display Module (CDM)

A - Display

B - Select Switch

C - Float Switch – Header Right Side

D - Float Switch – Header Left Side

E - Auger/Draper Speed Adjust

F - Header Index Switch

G - Return to Cut Switch

• DISPLAY: Header functions

• SELECT SWITCH: Allows Operator to select display item on lower line. Push to SELECT.

• FLOAT SWITCH – Header Right Side: Changes header float. The system remembers setting with deck shift

option if activated with float setting switch. Push + to Increase. Push – to Decrease.

• FLOAT SWITCH – Header Left Side: Changes header float. The system remembers setting with deck shift option

if activated with float setting switch. Push + to Increase. Push – to Decrease.

• AUGER/DRAPER SPEED ADJUST: Changes auger/draper speed INDEX with INDEX SWITCH ON. Changes

auger/draper SPEED with INDEX SWITCH OFF. Push upper switch to increase. Push lower switch to decrease.

• HEADER INDEX SWITCH: Links reel and conveyor speed to ground speed. Push-ON / Push-OFF.

NOTE:
Illuminates in ON position.

NOTE:
Header must be engaged.

• RETURN TO CUT HEIGHT SWITCH: Allows cutting height preset. Push-ON/Push-OFF.

NOTE:
Illuminates in ON position.

NOTE:
Header must be engaged.

169887

Revision A
