OPERATOR’S STATION
1. Turn ignition key to RUN, or start the engine. Refer to
Starting the Engine, page 152 .
2. Press PROGRAM (A) and SELECT (C) on cab display
module (CDM) to enter Programming Mode.
• WINDROWER SETUP? is displayed on the
upper line.
• NO/YES is displayed on the lower line.
3. Press right (B) arrow to select YES. Press SELECT (C).
• SET KNIFE SPEED? is displayed on the upper line.

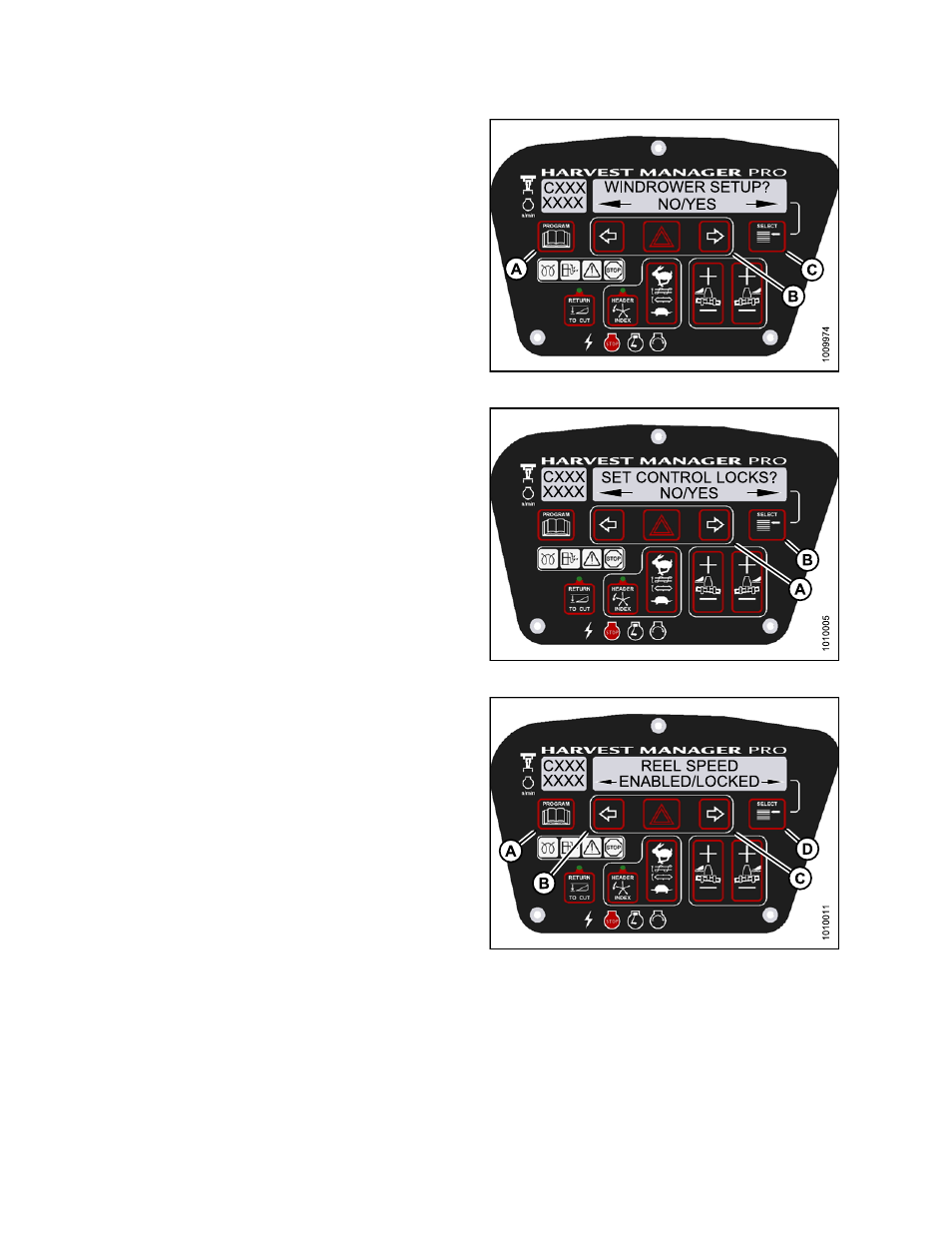

Figure 3.137: CDM Programming Buttons
4. Press SELECT (B) until SET CONTROL LOCKS? is
displayed on the upper line.
• NO/YES is displayed on the lower line.
5. Press right (A) arrow to select YES. Press SELECT (B).
Figure 3.138: Set Control Locks
6. Press SELECT (D) until REEL SPEED is displayed on
the upper line.
• ENABLED/LOCKED is displayed on the lower line.
7. Press left (B) arrow to enable REEL SPEED
control switch.
Press right (C) arrow to lock REEL SPEED
control switch.
8. Press PROGRAM (A) to exit Programming Mode or
press SELECT (D) to proceed to next WINDROWER
SETUP action.
Figure 3.139: Set Reel Speed Control Lock
169887 116 Revision A
