Setting the Rotary Disc Overload Speed

NOTE:

• Header MUST be attached to the windrower to perform this procedure. The cab display module (CDM)

automatically adjusts its programming for each header. For more information, refer to

• Recommended Disc Overload Speed is 75% of Disc Speed. For more information refer to the Rotary Disc

Header Operator’s Manual to determine proper overload speed.

1. Turn ignition key to RUN, or start the engine. Refer to

2. Press PROGRAM (A) and SELECT (C) on cab display

module (CDM) to enter Programming Mode.

• WINDROWER SETUP? is displayed on the

upper line.
NO/YES is displayed on the lower line.

3. Press right (B) arrow to select YES. Press SELECT (C).

• SET KNIFE SPEED? is displayed.

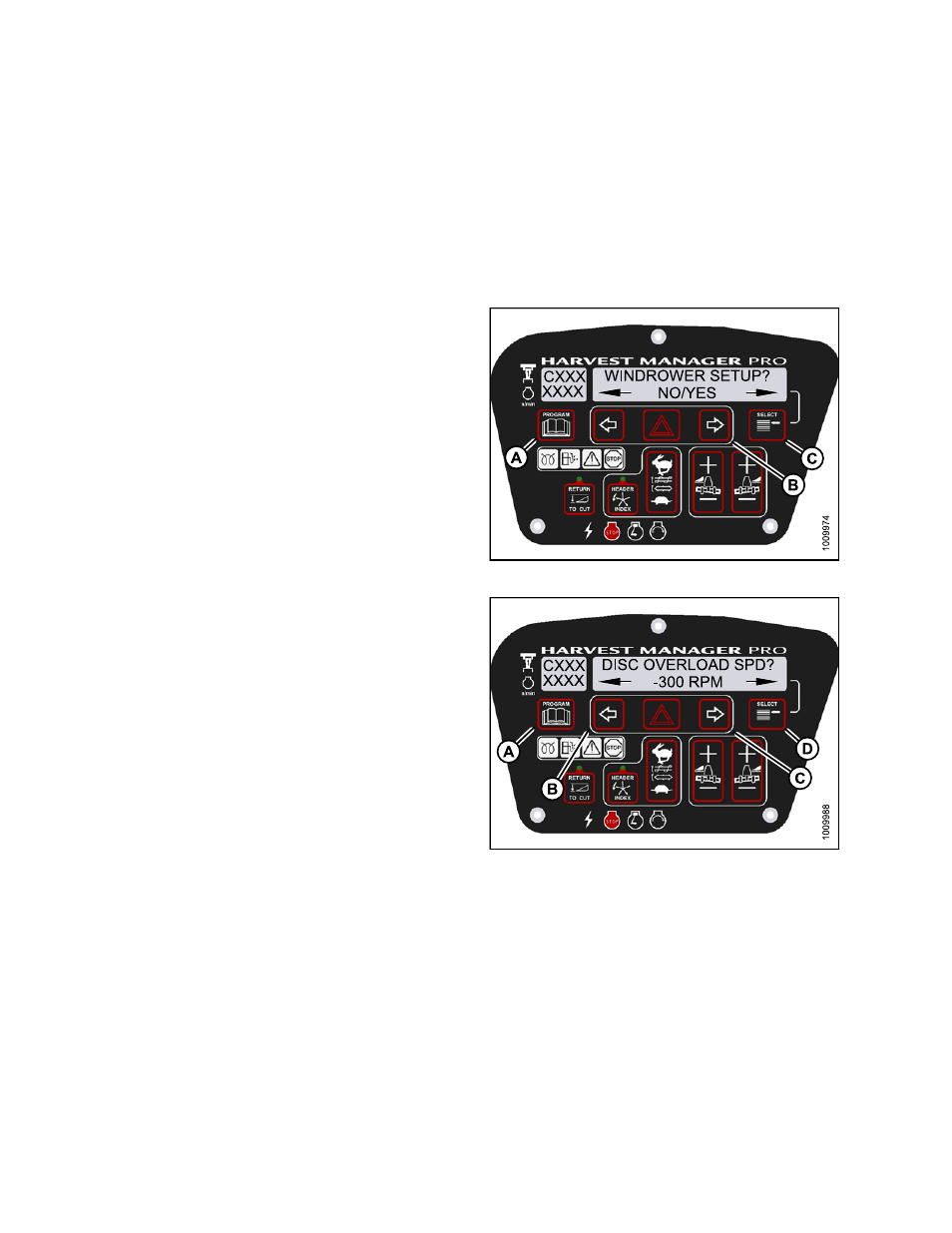

Figure 3.97: CDM Programming Buttons

4. Press SELECT (D) until DISK OVERLOAD SPD? is

displayed on the upper line.

• The current overload speed is displayed on the

lower line.

NOTE:
-300 rpm is default setting. Range is -500 to -100 rpm.

5. Press left (B) or right (C) arrows to set disc overload

speed. Press SELECT (D).

6. Press PROGRAM (A) to exit Programming Mode or

press SELECT (D) to proceed to next WINDROWER
SETUP action.

Figure 3.98: Setting Disc Overload Speed

Setting the Header Knife Speed

NOTE:

• Header MUST be attached to the windrower to perform this procedure. The cab display module (CDM)

automatically adjusts its programming for each header. For more information, refer to

• For more information, refer to

to determine proper knife speed.
