OPERATION
Double Windrow Attachment (DWA) Draper Speed
The draper speed is controlled with the rotary switch (A)
next to the rocker switch on the operator’s console.

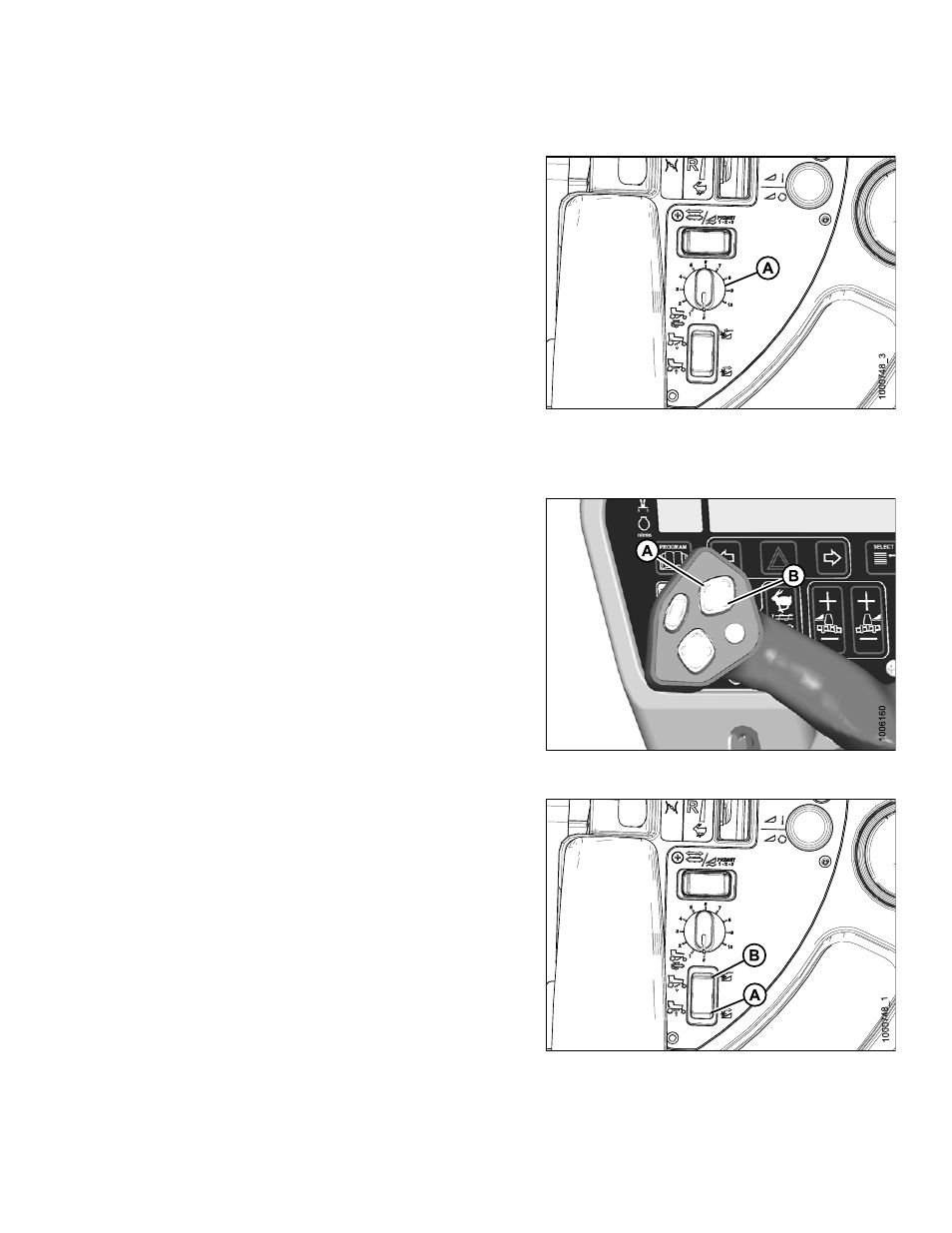

Figure 4.94: Operator’s Console
4.4.11 Swath Roller Operation
The swath roller is raised and lowered with the DWA
UP (A) and DWA DOWN (B) switches on the ground speed
lever (GSL) or with the rocker switch on the operator’s
console. This depends on how the windrower cab display
module (CDM) is programmed during the installation of
the Swath Roller kit.
To swap controls from the console to the GSL, refer to
Activating the Double Windrower Attachment (DWA), page
103
.
Figure 4.95: GSL
Figure 4.96: Rocker Switch
169887 201 Revision A
