OPERATION
16. Connect header drive hoses (A) and electrical
harness (B) to header. Refer to the rotary disc header
operator’s manual.

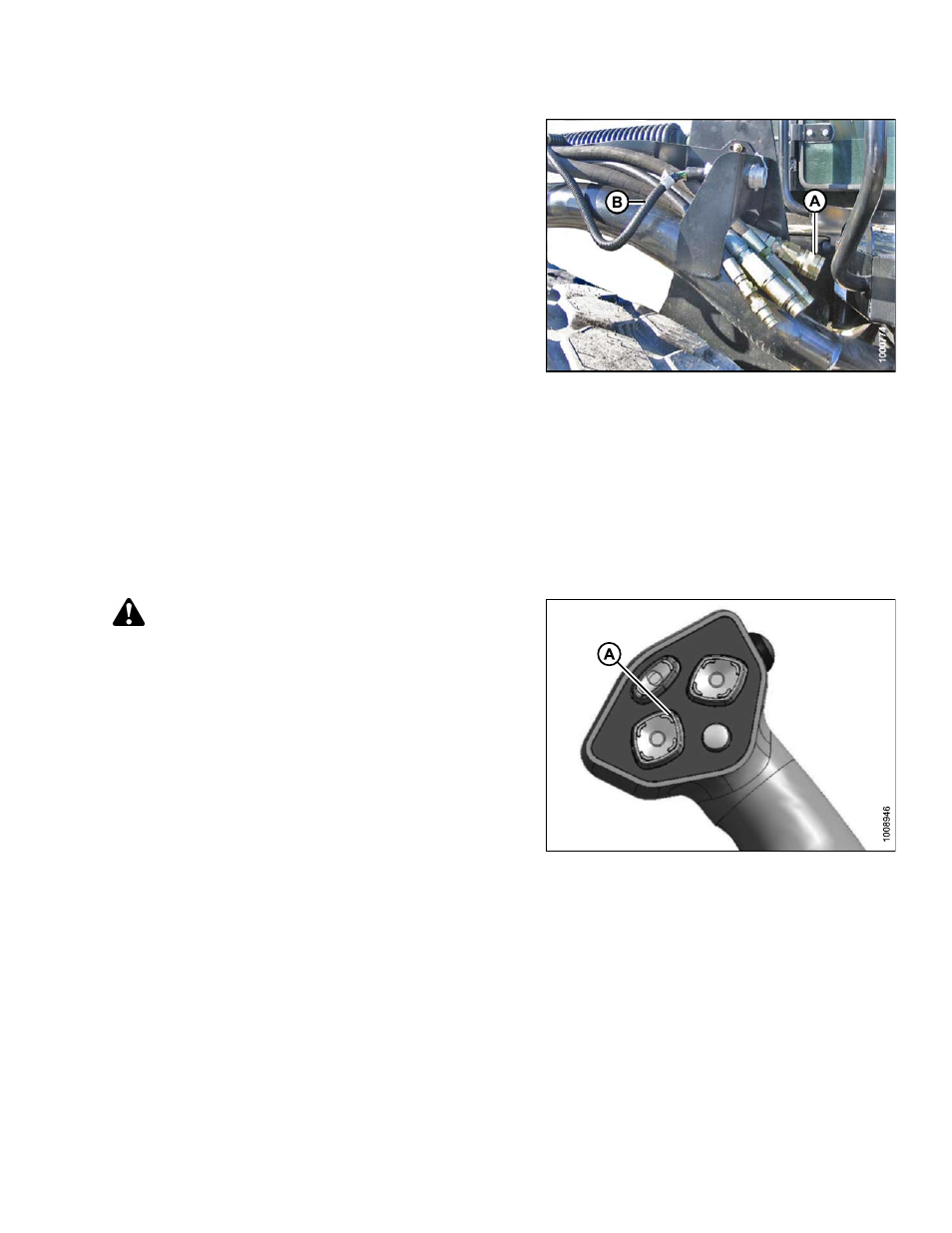

Figure 4.202: Header Drive Hoses and Harness
4.5.6 Detaching an R-Series Header
Refer to the following procedure to detach an R-Series header from the windrower:
• Detaching an R-Series Header: Hydraulic Center-Link, page 243
Detaching an R-Series Header: Hydraulic Center-Link
To detach an R-Series header from an M-Series windrower equipped with a hydraulic center-link, follow these steps:
DANGER
Stop engine and remove key from ignition before
leaving operator's seat for any reason. A child or
even a pet could engage an idling machine.
1. Start engine and press HEADER UP (A) switch to raise
header to maximum height.
2. Rephase cylinders if one end of the header does not
raise fully. If rephasing is needed, proceed as follows:
a. Press and hold the HEADER UP (A switch until
both cylinders stop moving.
b. Continue to hold the switch for 3–4 seconds.
Cylinders are phased. Figure 4.203: Ground Speed Lever (GSL)
169887 243 Revision A
