OPERATOR’S STATION
CAUTION
Check to be sure all bystanders have cleared the area.
7. Press SELECT (D) until ACTIVATE HDR TILT is
displayed on the upper line.
• IN/OUT is displayed on the lower line.
8. Press and hold left (B) arrow to decrease header tilt.
Press and hold right (C) arrow to increase header tilt.
Verify header is functioning properly.
9. Press PROGRAM (A) to exit Programming Mode or
press SELECT (D) to proceed to next ACTIVATE
FUNCTION.

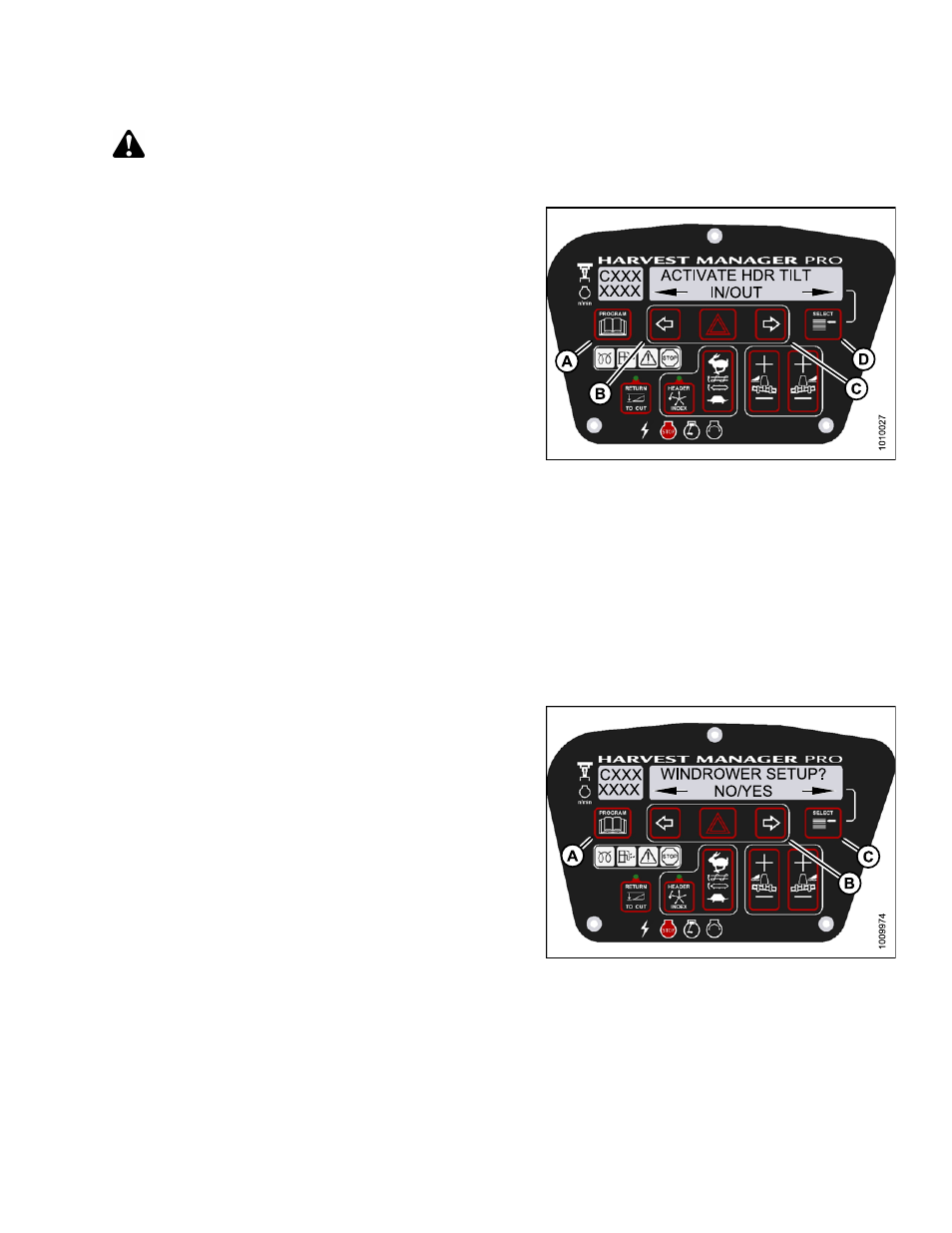

Figure 3.174: Changing Header Tilt Angle
Testing the Reel Fore and Aft Function using the Cab Display Module (CDM)
NOTE:
• The Reel Fore-Aft function requires the Completion Kit for Draper Header Reel Drive (MD #5496). For more
information refer to 7.1.8 Completion Kit for Draper Header Reel Drive, page 430 .
• Header MUST be attached to windrower to perform this procedure. For more information, refer to 4.5 Attaching
and Detaching Headers, page 202 .
• Engine MUST be running to perform this procedure.
1. Start the engine. Refer to Starting the Engine, page
152 .
2. Press PROGRAM (A) and SELECT (C) on cab display
module (CDM) to enter Programming Mode.
• WINDROWER SETUP? is displayed on the
upper line.
Figure 3.175: CDM Programming Buttons
169887 131 Revision A
