OPERATOR’S STATION
3.7 Lighting
The field and road light switches are located on a panel in
the cab headliner.
The position of the operator’s station (cab-forward mode
or engine-forward mode) automatically determines the
lighting.
The hazard lights are activated automatically when certain
conditions are met. The windrower must be cab-forward,
medium range, brake off, and header off.
The work lights will not turn on if the windrower is
engine-forward or if the windrower is cab-forward, out of
park, medium range, and header off.
IMPORTANT:
Red and amber reflector tape is applied to be visible in
both engine-forward and cab-forward modes.

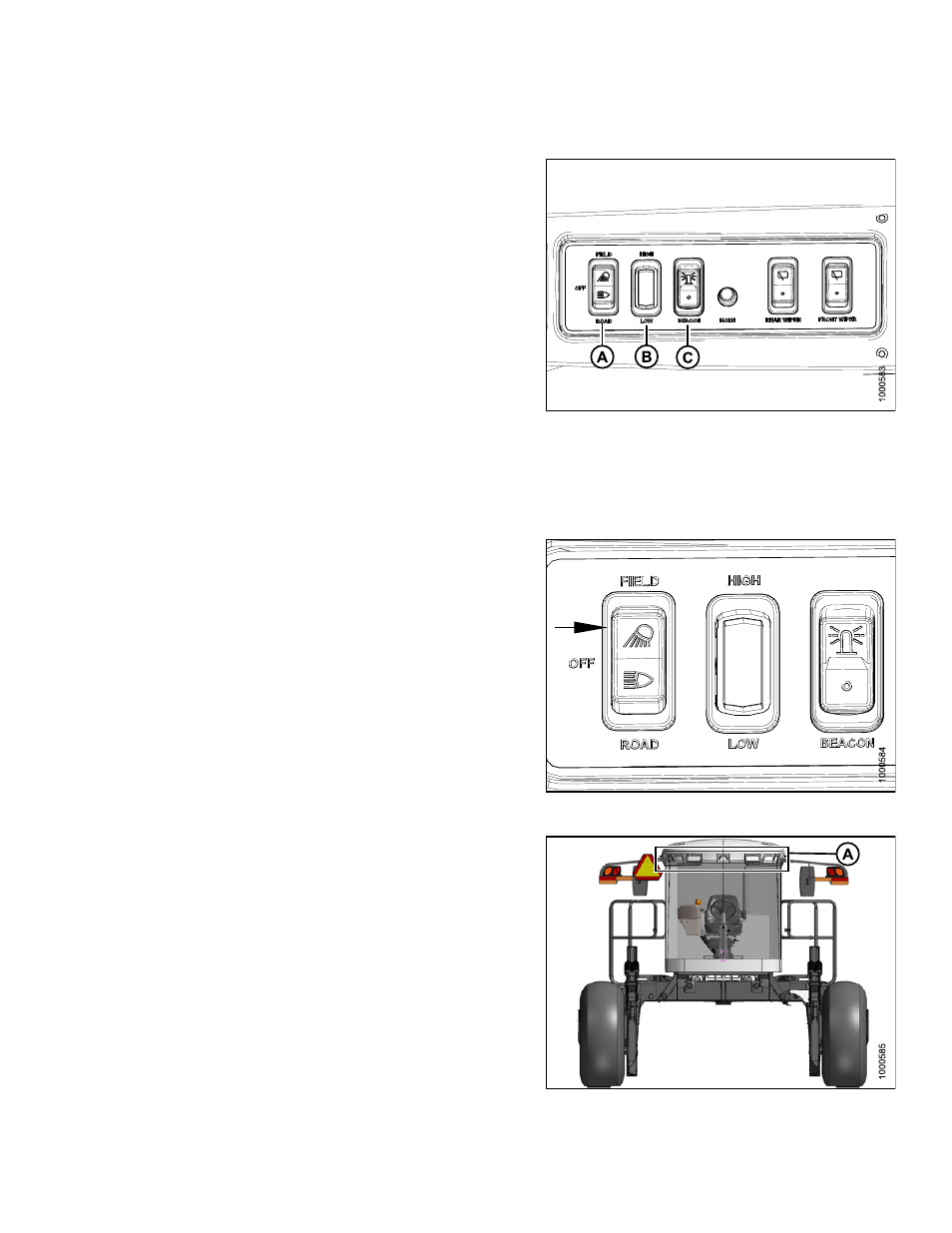

Figure 3.16: Roof Liner Console
A - Field or Road Lights B - Low or High Beams
C - Beacon (If Equipped)
3.7.1 Cab-Forward Lighting: Field
The following lights are on when the light switch is in FIELD
position with the windrower in cab-forward mode:
• Field lights in cab roof (front and rear)
• Swath lights in hood
• HID lights (if installed) on mirror supports
Figure 3.17: Field Light Switch
The two innermost lights in the field light group (A) at the
front of the cab are adjustable. Refer to
Adjusting Field
Lights, page 362 .
Figure 3.18: Cab-Forward: Front View
169887 49 Revision A
