OPERATOR’S STATION
8. Press and hold HEADER DOWN (A) button on GSL.
NOTE:
The word HOLD will flash during calibration. HT
SENSOR COMPLETE will display on the lower line once
calibration is complete.
9. Release HEADER DOWN (A) button.
• TO CALIBRATE SELECT is displayed on the
upper line.
• HEADER HEIGHT is displayed on the lower line.
10. Press right arrow to select next header sensor
calibration or STOP & EXIT. Press SELECT.
Refer to
Calibrating the Header Tilt Sensor, page 93 or
Calibrating the Header Float Sensor, page 95 .
11. Press PROGRAM to exit Programming Mode.

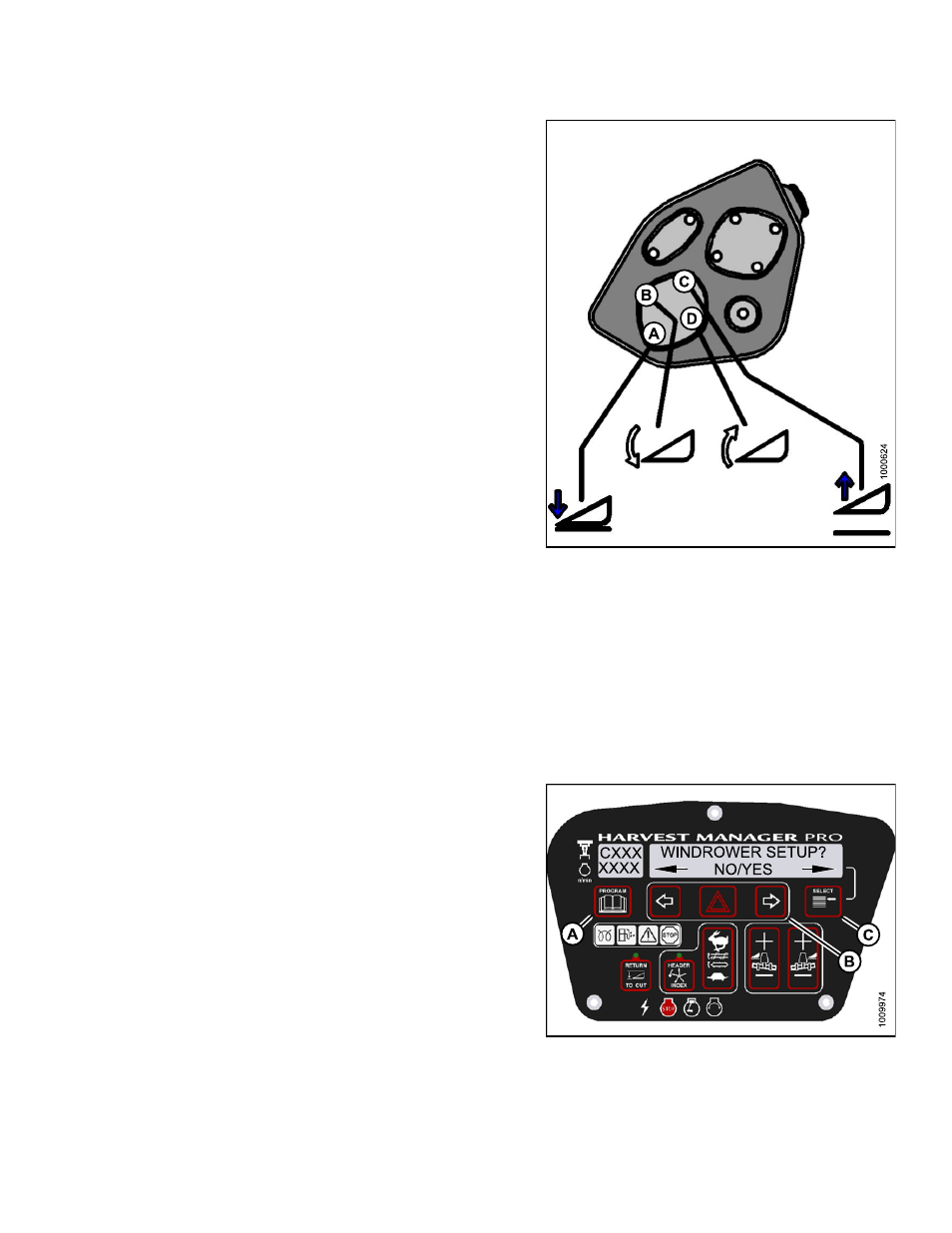

Figure 3.86: Header Height Controls on Ground
Speed Lever
Calibrating the Header Tilt Sensor
NOTE:
• Header MUST be attached to the windrower to perform this procedure. The cab display module (CDM)
automatically adjusts its programming for each header. Refer to 4.5 Attaching and Detaching Headers, page
202 .
• Engine MUST be running to perform this procedure.
1. Start the engine. Refer to Starting the Engine, page
152 .
2. Press PROGRAM (A) and SELECT (C) on cab display
module (CDM) to enter Programming Mode.
• WINDROWER SETUP? is displayed on the
upper line.
3. Press SELECT (C) until CALIBRATE SENSORS? is
displayed on the upper line.
• NO/YES is displayed on the lower line.
Figure 3.87: CDM Programming Buttons
169887 93 Revision A
