4. Press right (B) arrow to select Yes. Press SELECT (C).

• TO CALIBRATE SELECT is displayed in upper line.

5. Press left (A) or right (B) arrow until HEADER FLOAT

is displayed on the lower line. Press SELECT (C).

• CALIBRATING FLOAT is displayed on the

upper line.

• PRESS FLOAT + TO START is displayed on the

lower line.

CAUTION

Check to be sure all bystanders have cleared the area.

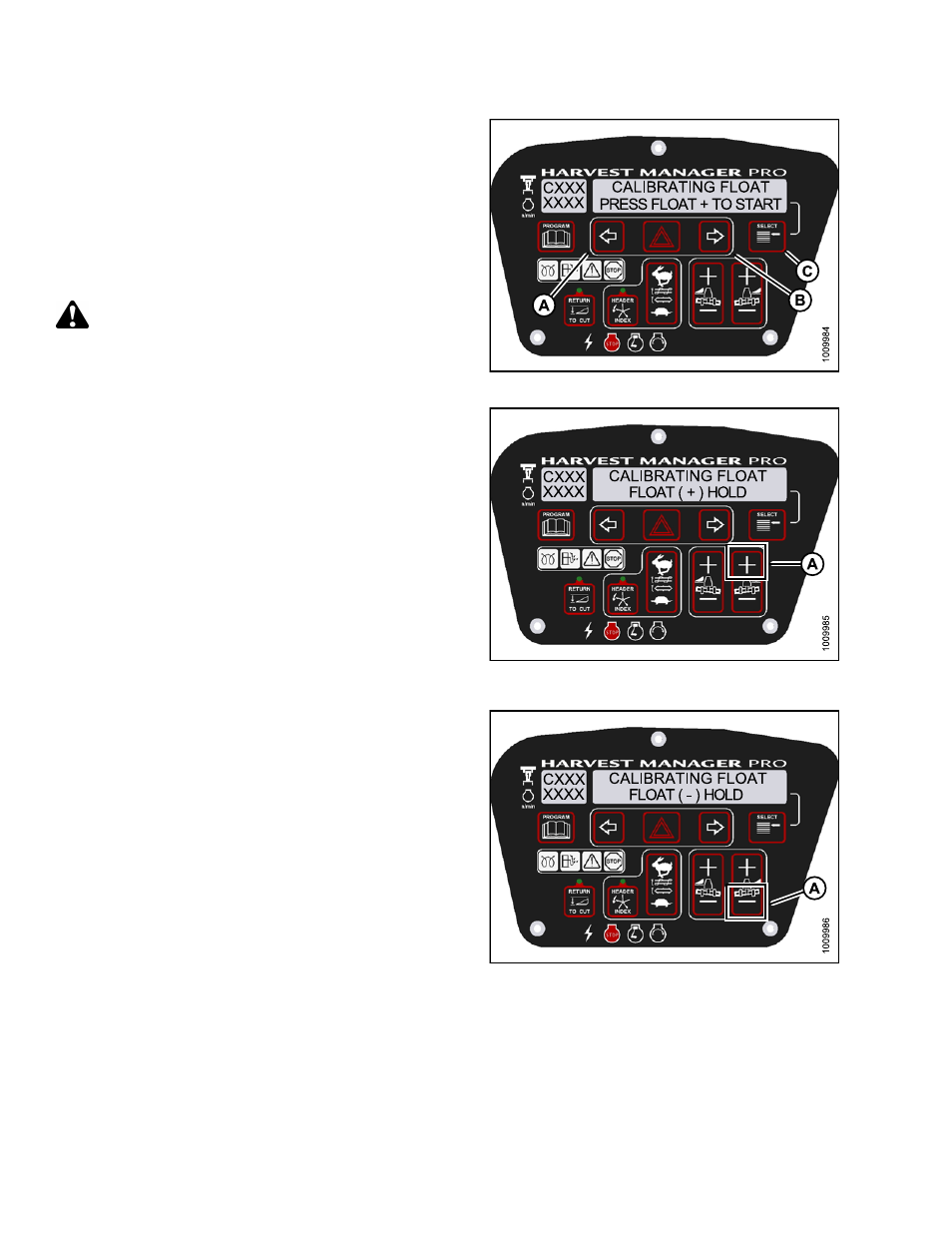

Figure 3.92: Calibrate Header Float

6. Press and hold the FLOAT + (A) button on the CDM.

• CALIBRATING FLOAT is displayed on the

upper line.

• FLOAT ( + ) HOLD is displayed on the lower line.

NOTE:
The word HOLD will flash during calibration. FLOAT
(+) DONE will display on the lower line once calibration
is complete.

7. Release the FLOAT + (A) button.

• CALIBRATING FLOAT is displayed on the

upper line.

• FLOAT ( - ) HOLD is displayed on the lower line.

Figure 3.93: Calibrate Positive Header Float

8. Press and hold FLOAT - (A) button on CDM.

• CALIBRATING FLOAT is displayed on the

upper line.

• FLOAT ( - ) HOLD is displayed on the lower line.

NOTE:
The word HOLD will flash during calibration. HDR
FLOAT COMPLETE will display on the lower line once
calibration is complete.

9. Release FLOAT - (A) button.

• TO CALIBRATE SELECT is displayed on the

upper line.

• HEADER FLOAT is displayed on the lower line.

Figure 3.94: Calibrate Negative Header Float

10. Press right arrow to select next header sensor

calibration or STOP & EXIT. Press SELECT
Refer to

11. Press PROGRAM to exit Programming Mode.
