4. Locate filter (A) on vent line against hydraulic
oil reservoir.
5. Release hose tension clamps (B) and slide away from
filter. Pull hoses off filter.
6. Position new filter through hole in frame and attach top
hose onto filter. IN marking should face down.
NOTE:
If filter has an arrow instead of an IN marking,
arrow should point up.
7. Attach lower hose to filter and secure both hoses with
tension clamps (B).
8. Close hood, refer to
.
9. Close the maintenance platform, refer to
Platforms (Standard Position), page 292

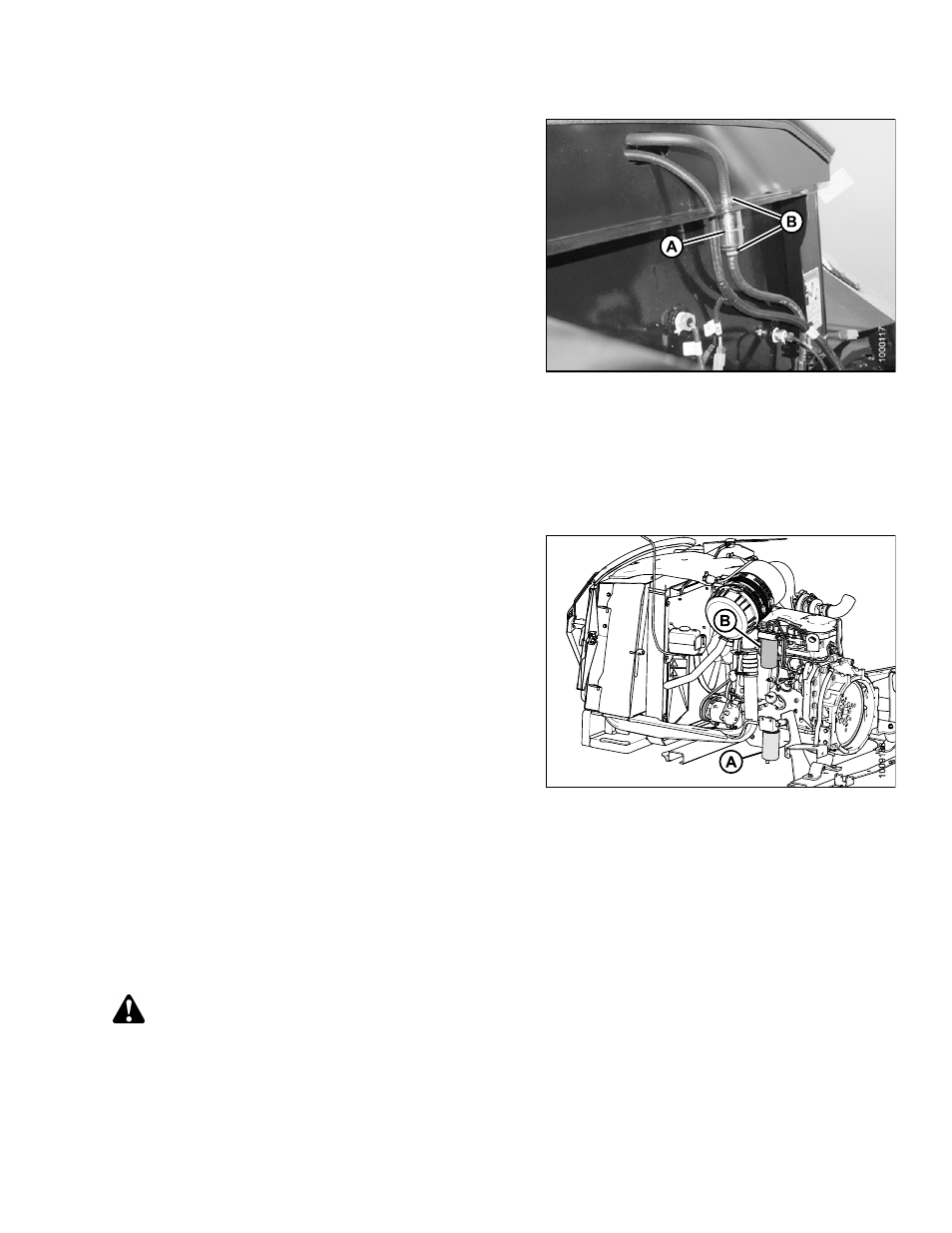

Figure 5.87: Fuel System
Maintaining Fuel Filters
The windrower fuel system is equipped with primary (A)
and secondary (B) screw-on cartridge type filters. The
primary filter (A) is equipped with a separator that
separates sediment and water from the fuel.
Change both filters every 500 hours of operation.
Figure 5.88: Fuel System Filters
Refer to the following procedures:
•
Removing Primary Fuel Filter, page 327
•
Installing Primary Fuel Filter, page 329
•
Removing Secondary Fuel Filter, page 329
•
Installing Secondary Fuel Filter, page 329
Removing Primary Fuel Filter
DANGER
Stop engine and remove key from ignition before leaving operator's seat for any reason. A child or even a
pet could engage an idling machine.
169887
