MAINTENANCE AND SERVICING
Table 5.19 Relief Valve and Overload Settings
Header Model Application/System
Windrower Differential
Relief Setting
(Header Attached)
psi (kPa)
Suggested Overload
Warning Setting
psi (kPa)
R80 and R85 Disc Pressure 5500 (37,921) 5000 (34,474)
Reel/Draper Pressure 2900 (19,994) 2500 (17,237)
D60, D65, and
A40-D
Knife/Conditioner
Pressure
4000 (27,579) 3600 (24,821)
Flow Control Blocks
Two hydraulic valve blocks with multiple cartridges are
used for the various windrower functions and are controlled
by the windrower control module (WCM) according to the
inputs from the Operator. The valve blocks are located
behind the left cab-forward side platform.
The valve blocks do NOT require any scheduled
maintenance other than to check for leaking fittings or
loose electrical connections. If service is required, contact
your MacDon Dealer.

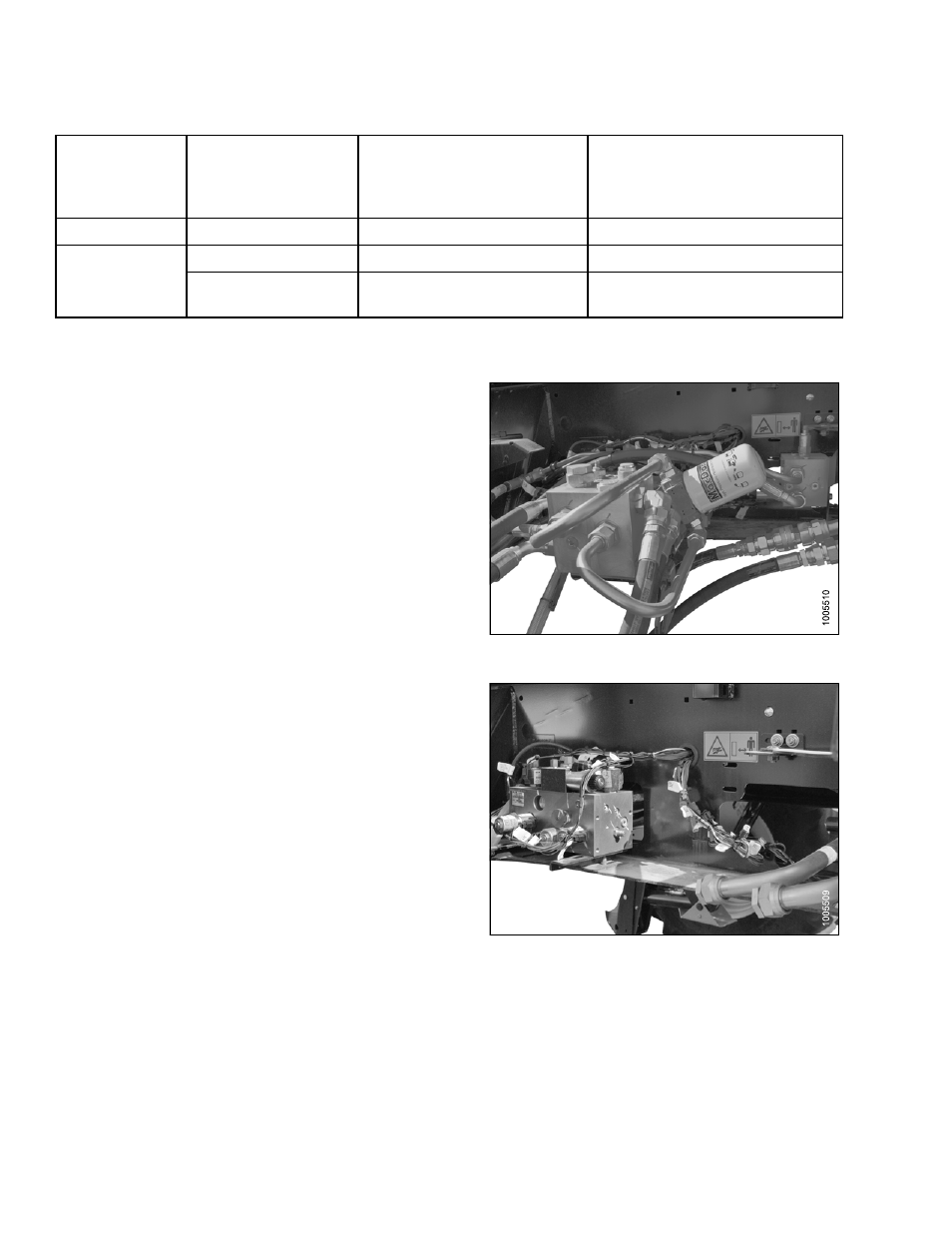

Figure 5.207: Draper Header Hydraulics
Figure 5.208: Rotary Disc Header Hydraulics
