Page 262
11. Disconnect
header
drive
hydraulics
(A)
and
electrical harness (B). Refer to the R-Series Header
Operator’s Manual.
12. Slowly back windrower away from header.

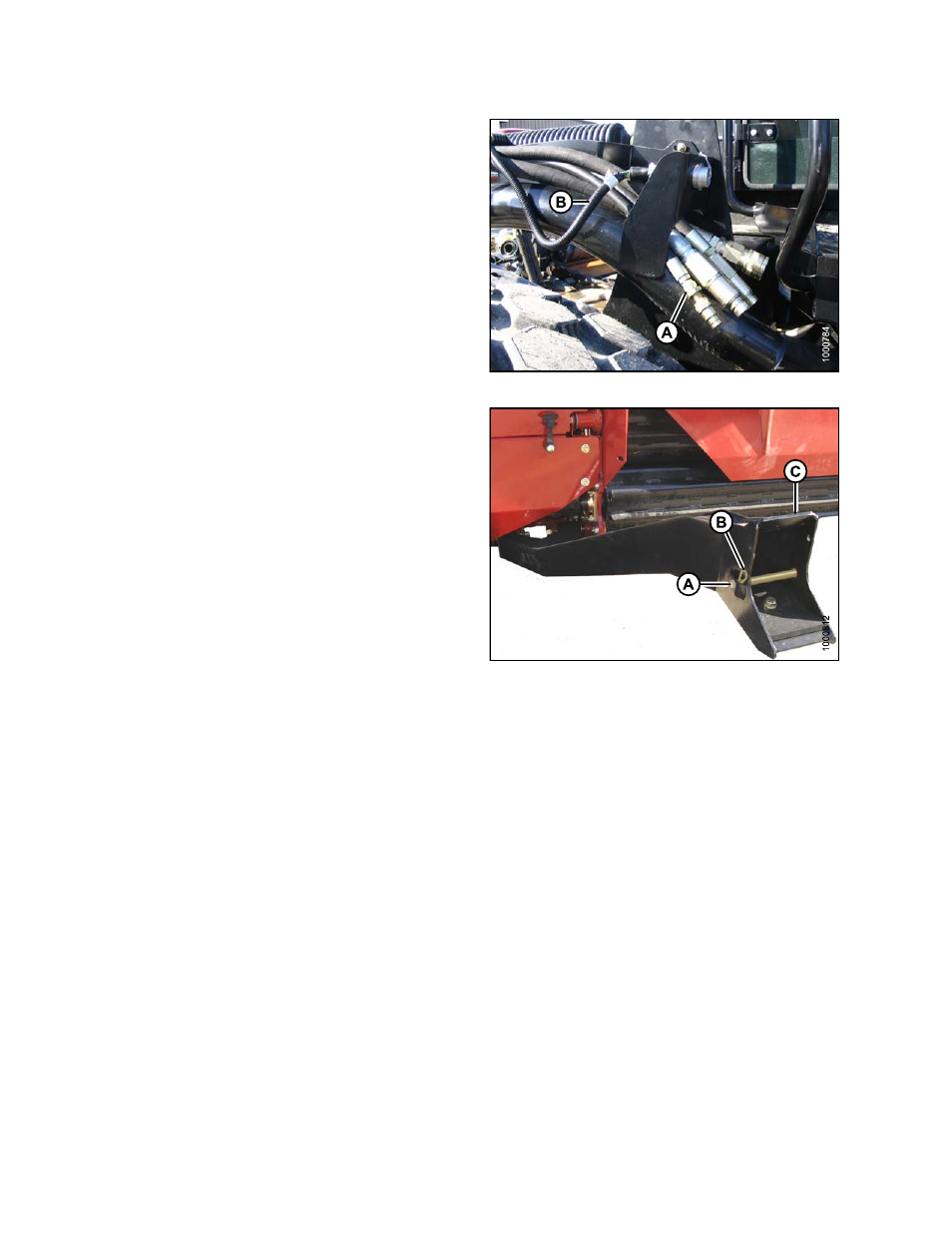

Figure 4.209: Header Drive Hydraulics
13. Reinstall clevis pin (A) through each boot (C) and
secure with hairpin (B). Do this to both sides.
Figure 4.210: Header Boot
169887
246
Revision A
