OPERATION
12. Disconnect center-link by lifting release (B) and lift
hook (A) off header.
NOTE:
If optional center-link self-alignment kit is
installed, lift release (B) and then operate the
link lift cylinder with REEL UP switch on GSL to
disengage the center-link from the header.

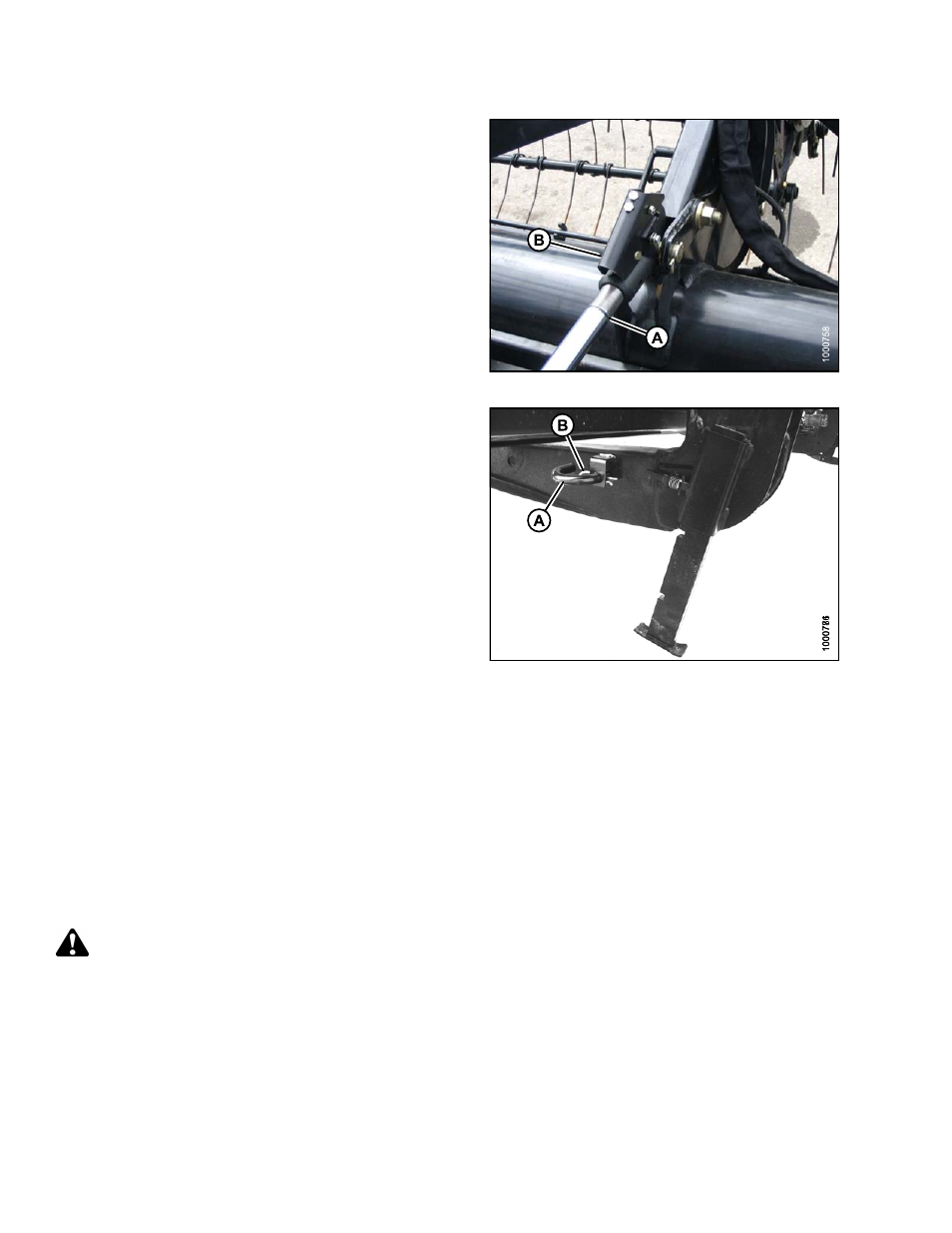

Figure 4.133: Hydraulic Center-Link
13. Reinstall pin (A) into header leg and secure with a
hairpin (B).
Figure 4.134: Header Stand
4.5.3 Attaching an A-Series Header
Refer to the procedure that is appropriate for the center-link installed on the windrower:
• Attaching an A-Series Header: Hydraulic Center-Link with Optional Self-Alignment, page 216
• Attaching an A-Series Header: Hydraulic Center-Link without Self-Alignment, page 222
Attaching an A-Series Header: Hydraulic Center-Link with Optional Self-Alignment
To attach an A-Series header to a windrower equipped with a hydraulic center-link and optional self-alignment,
follow these steps:
DANGER
Stop engine and remove key from ignition before leaving operator's seat for any reason. A child or even a
pet could engage an idling machine.
169887 216 Revision A
