Servicing the air conditioning compressor, 7engine, General engine inspection – MacDon M205 Operators Manual User Manual
Page 330: Engine, 7 engine caution

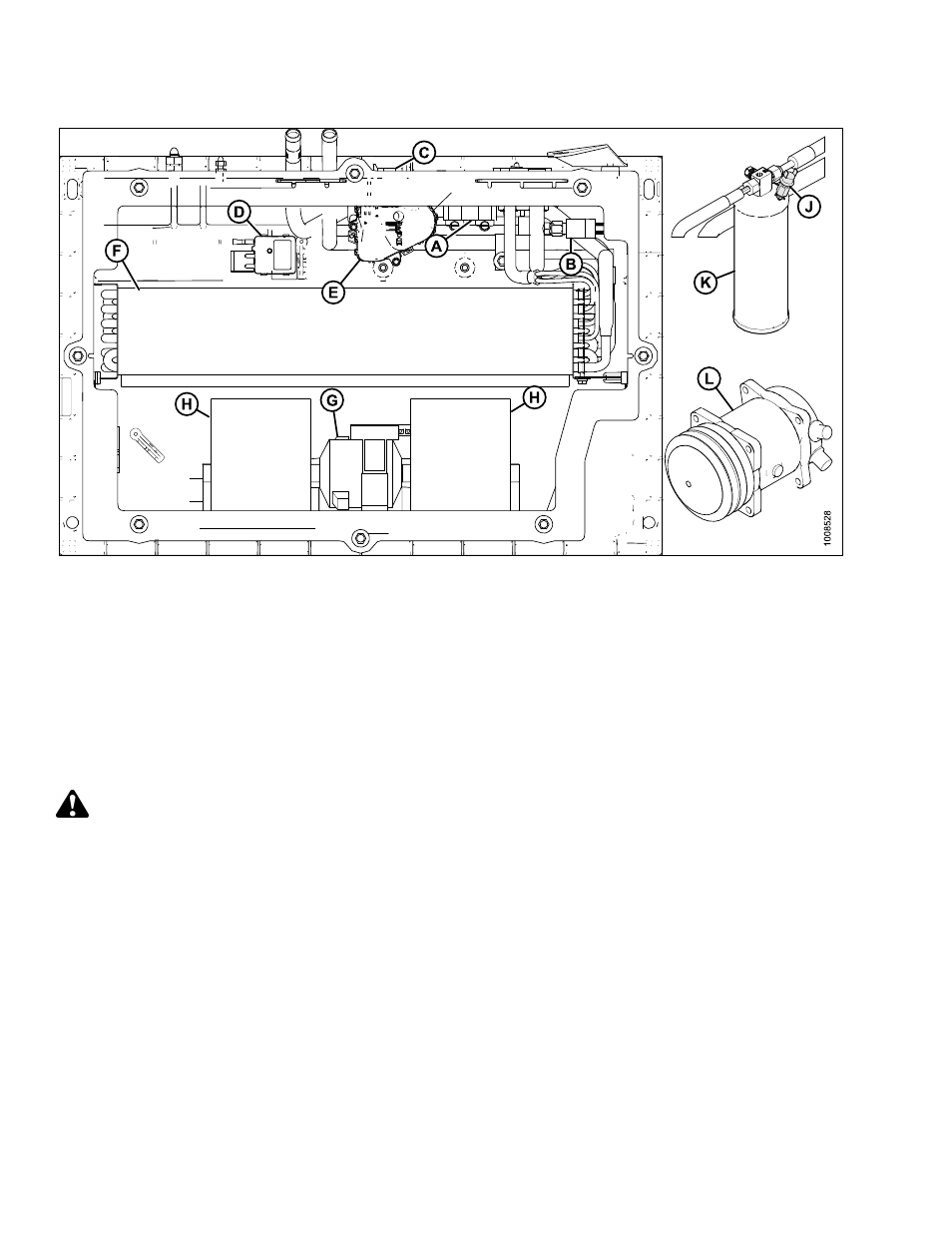

Figure 5.64: HVAC System
A - Expansion Valve
B - Low Pressure Switch
C - Electrical Connector
D - Thermostat
E - Heater Valve
F - Evaporator Core
G - Blower Motor
H - Blower Fans
J - High Pressure Switch
K - Receiver Dryer
L - Compressor
Servicing the Air Conditioning Compressor
Refer to
Replacing Air Conditioner A/C Compressor Belt, page 348
for belt replacement procedure.
See your MacDon Dealer for all other servicing procedures.
5.7.7
Engine
CAUTION
• NEVER operate engine in a closed building. Proper ventilation is required to avoid exhaust gas hazards.
• Keep the engine clean. Straw and chaff on a hot engine are a fire hazard.
• NEVER use gasoline, naphtha, or any other volatile material for cleaning purposes. These materials are
toxic and/or flammable.
General Engine Inspection
Engine inspection should be performed by your MacDon Dealer.
Refer to your engine manual for further information. (Owner’s Manual QSB 4.5 and QSB 6.7 Engine Cummins
#4021531 are supplied with your machine).
169887
314
Revision A
