OPERATION
13. Disconnect header drive hydraulics (A) and
electrical harness (B). Refer to the auger header
operator’s manual.
14. Slowly back windrower away from header.

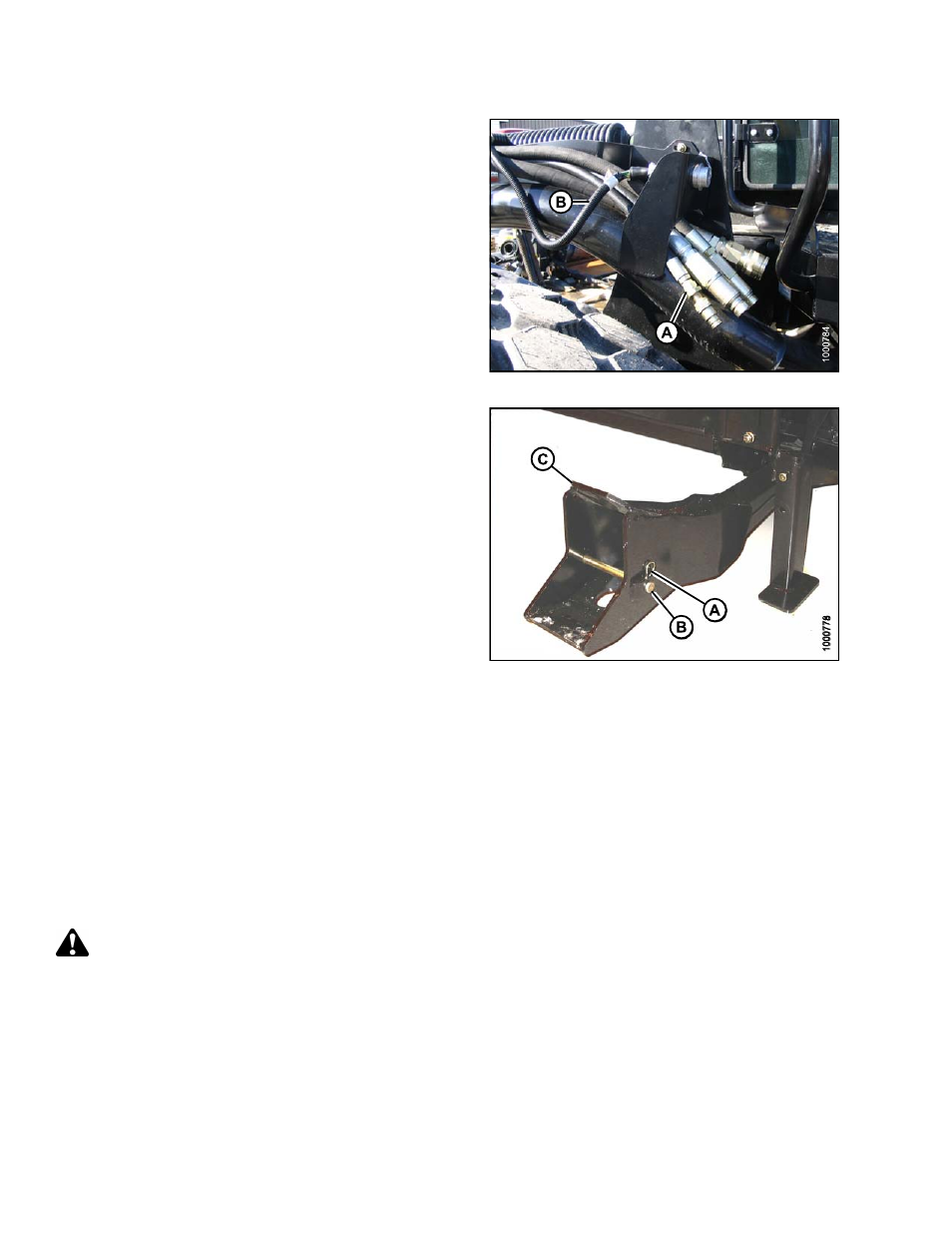

Figure 4.173: Header Drive Hydraulics
15. Reinstall clevis pin (B) and secure with hairpin (A) in
header boot (C).
16. Repeat for the opposite side.
Figure 4.174: Header Boots
4.5.5 Attaching an R-Series Header
Refer to the procedure that is appropriate for the center-link installed on the windrower:
• Attaching an R-Series Header: Hydraulic Center-Link with Optional Self-Alignment, page 232
• Attaching an R-Series Header: Hydraulic Center-Link without Self-Alignment, page 238
Attaching an R-Series Header: Hydraulic Center-Link with Optional Self-Alignment
To attach an R-Series header to a windrower equipped with a hydraulic center-link and optional self-alignment,
follow these steps:
DANGER
Stop engine and remove key from ignition before leaving operator's seat for any reason. A child or even a
pet could engage an idling machine.
169887 232 Revision A
